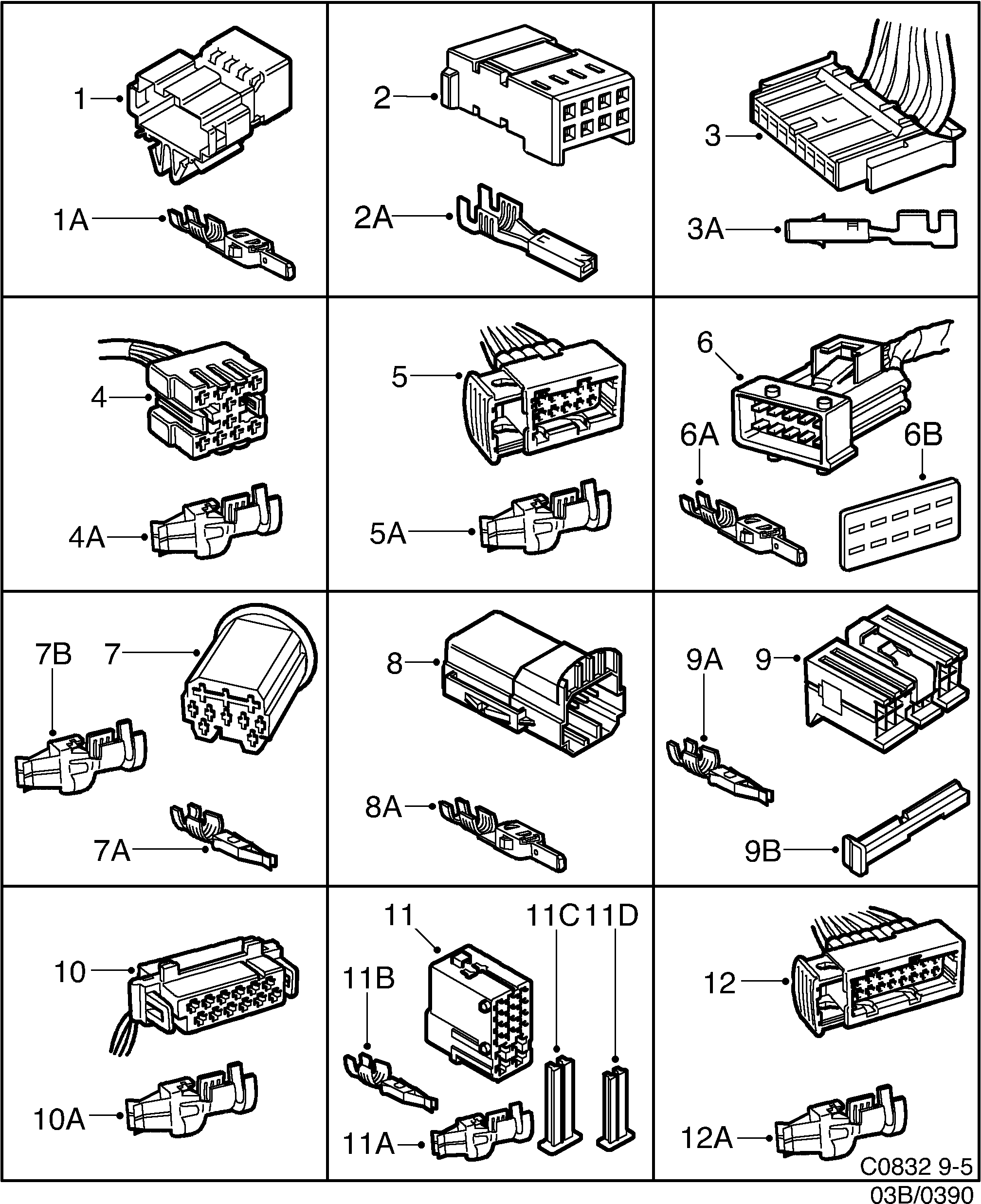

Group 3b Electrical, connector, section 390
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 12790204 (replaces 4807988) |
| 1A | Cable terminal | 12790614 (replaces 4115457) |
| 2 | Connector housing | 5241294 |
| 2A | Cable terminal | 5243639 |
| 3 | Connector housing | 12790279 (replaces 5243613) |
| 3A | Cable terminal | 12789765 (replaces 5351739) |
| 3A | Cable terminal | 5351747 |
| 4 | Connector housing | 12764801 (replaces 9123399) |
| 4A | Cable terminal | 12789796 (replaces 9120957) |
| 4A | Cable terminal | 4464343 |
| 5 | Connector housing | 12788954 (replaces 4114005) |
| 5A | Cable terminal | 4350526 |
| 5A | Cable terminal | 4061586 |
| 6 | Connector housing | 12788959 (replaces 4114054) |
| 6A | Cable terminal | 12789934 (replaces 4115192) |
| 6B | Seal | 12788965 (replaces 4114153) |
| 7 | Connector housing | 12756334 (replaces 4411518) |
| 7A | Cable terminal | 12790414 (replaces 4115499) |
| 7 | Connector housing | 12756333 (replaces 4411526) |
| 8 | Connector housing | 4587903 |
| 8A | Cable terminal | 12789934 (replaces 4115077) |
| 8 | Connector housing | 4587895 |
| 9 | Connector housing | 4739165 |
| 9B | Locking | 4739173 |
| 10 | Connector housing | 9525031 |
| 11 | Connector housing | 4737060 |
| 11B | Cable terminal | 4466801 |
| 11C | Locking | 4737086 |
| 11D | Locking | 4737094 |
| 12 | Connector housing | 12791005 (replaces 4114401) |
| 12A | Cable terminal | 12790467 (replaces 4063970) |
