Saab 9-5 (9600) 2001-2001 Connector housing etc 4-pin-8-pin

Group 3b Electrical, connector, section 380

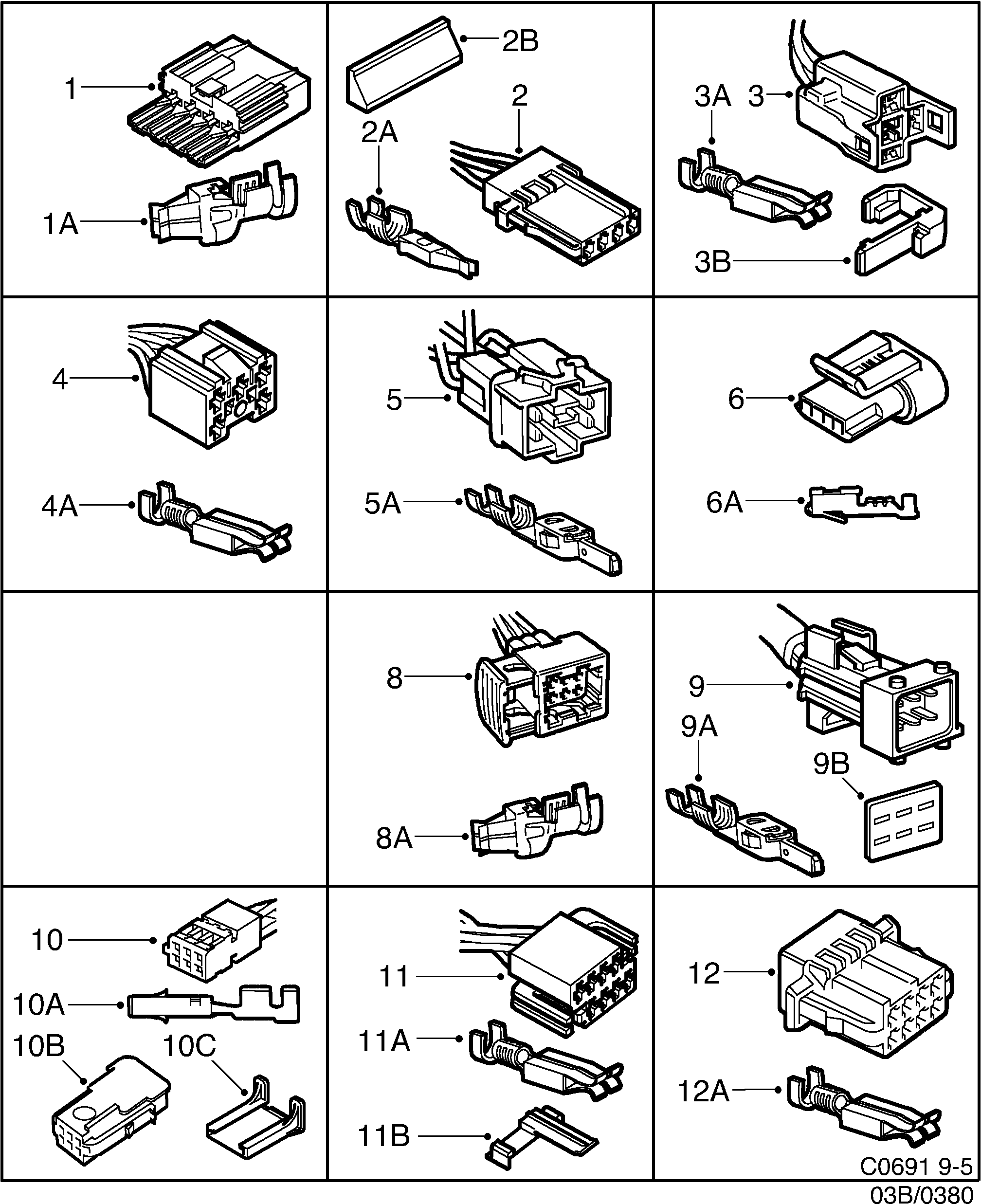

Saab 9-5 (9600) Connector housing etc 4-pin-8-pin diagram

Pos	Article	Part No.
1	Connector housing	4230181
1A	Cable terminal	4464343
2	Connector housing	12789433 (replaces 4733242)
2A	Cable terminal	12790414 (replaces 4115499)
2B	Locking	12789185 (replaces 4733267)
2	Connector housing	4733259
3	Connector housing	4224317
3A	Cable terminal	30520557 (replaces 9120791)
3B	Locking	4224333
3	Connector housing	4811261
4	Connector housing	4224168
5	Connector housing	4117263
5A	Cable terminal	12789934 (replaces 4115077)
6	Connector housing	12790278 (replaces 5108220)
6A	Cable terminal	4488458
8	Connector housing	12788966 (replaces 4113809)
8A	Cable terminal	4061586
8A	Cable terminal	12789796 (replaces 9120957)
9	Connector housing	4113858
9A	Cable terminal	12789934 (replaces 4115192)
9B	Seal	4114377
10	Connector housing	12789443 (replaces 5246285)
10A	Cable terminal	12789765 (replaces 5351739)
10A	Cable terminal	5351747
10B	Cover	12789444 (replaces 5246293)
10C	Locking	12789445 (replaces 5246301)
11	Connector housing	12798372 (replaces 5241674)
11B	Locking	5241401
12	Connector housing	12789185 (replaces 4807962)
12	Connector housing	12789185 (replaces 4807970)
