Saab 9-5 (9600) 2001-2001 Connector housing etc 1-pin-2-pin

Group 3b Electrical, connector, section 350

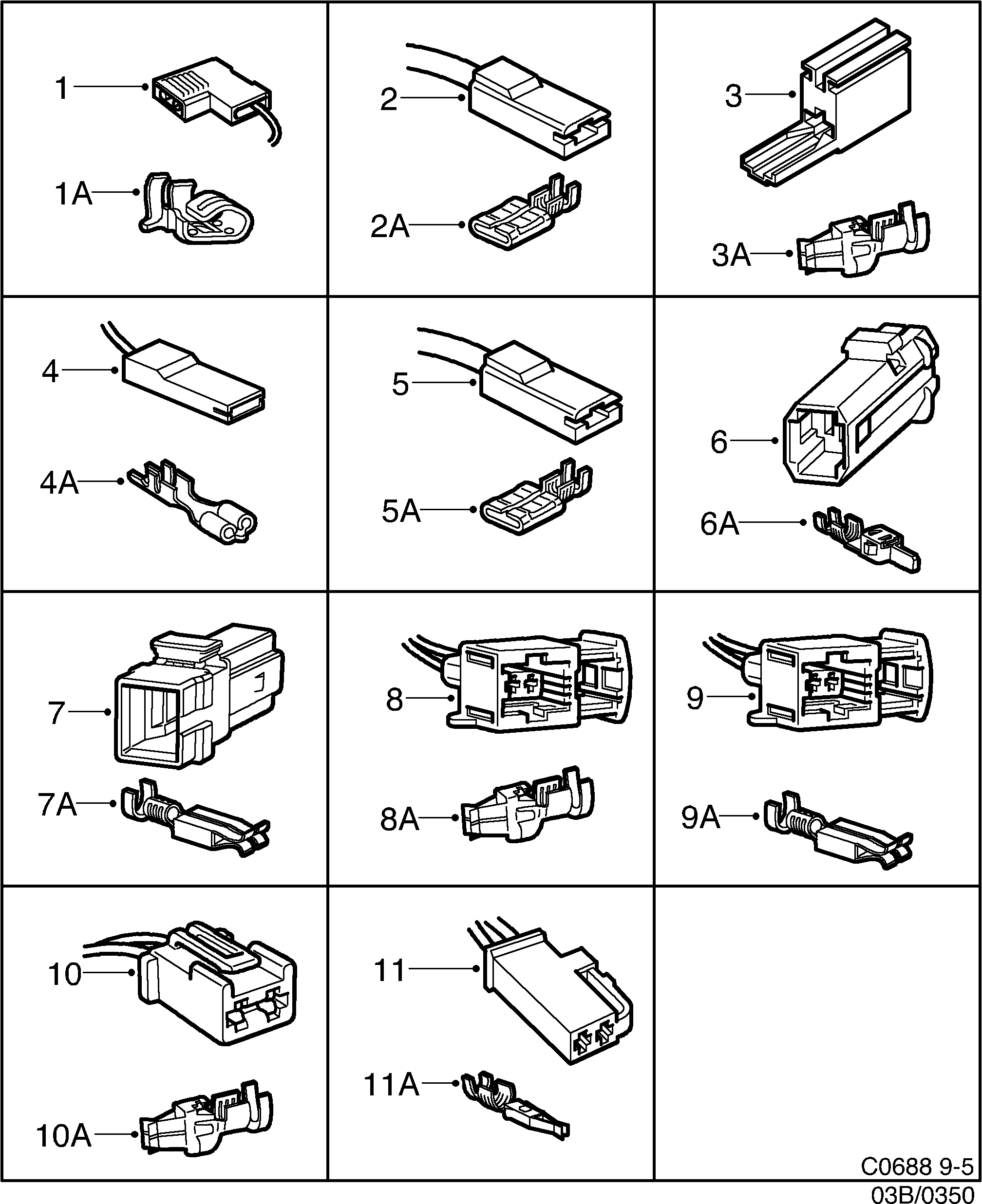

Saab 9-5 (9600) Connector housing etc 1-pin-2-pin diagram

Pos	Article	Part No.
1	Connector housing	12790263 (replaces 4489076)
1A	Cable terminal	12756957 (replaces 4489084)
1	Connector housing	8521692
1A	Cable terminal	8522526
2	Connector housing	4537254
2A	Cable terminal	4537221
3	Connector housing	4230199
3A	Cable terminal	4464343
4	Connector housing	8521544
4A	Cable terminal	4409801
5	Connector housing	12790271 (replaces 4808218)
5A	Cable terminal	4516183
6	Connector housing	4948626
6A	Cable terminal	4115580
7	Connector housing	4948618
7A	Cable terminal	30520557 (replaces 9120791)
8	Connector housing	12788933 (replaces 4113205)
8A	Cable terminal	4061586
8	Connector housing	4174207
8A	Cable terminal	4812624
9	Connector housing	12788982 (replaces 4113411)
9A	Cable terminal	12970428 (replaces 4354171)
10	Connector housing	12790106 (replaces 9123548)
10A	Cable terminal	12789796 (replaces 9120957)
11	Connector housing	12789425 (replaces 4176780)
11A	Cable terminal	12790414 (replaces 4115499)
