Saab 9-5 (9600) 2000-2000 Connector housing etc 8-pin-16-pin

Group 3b Electrical, connector, section 310

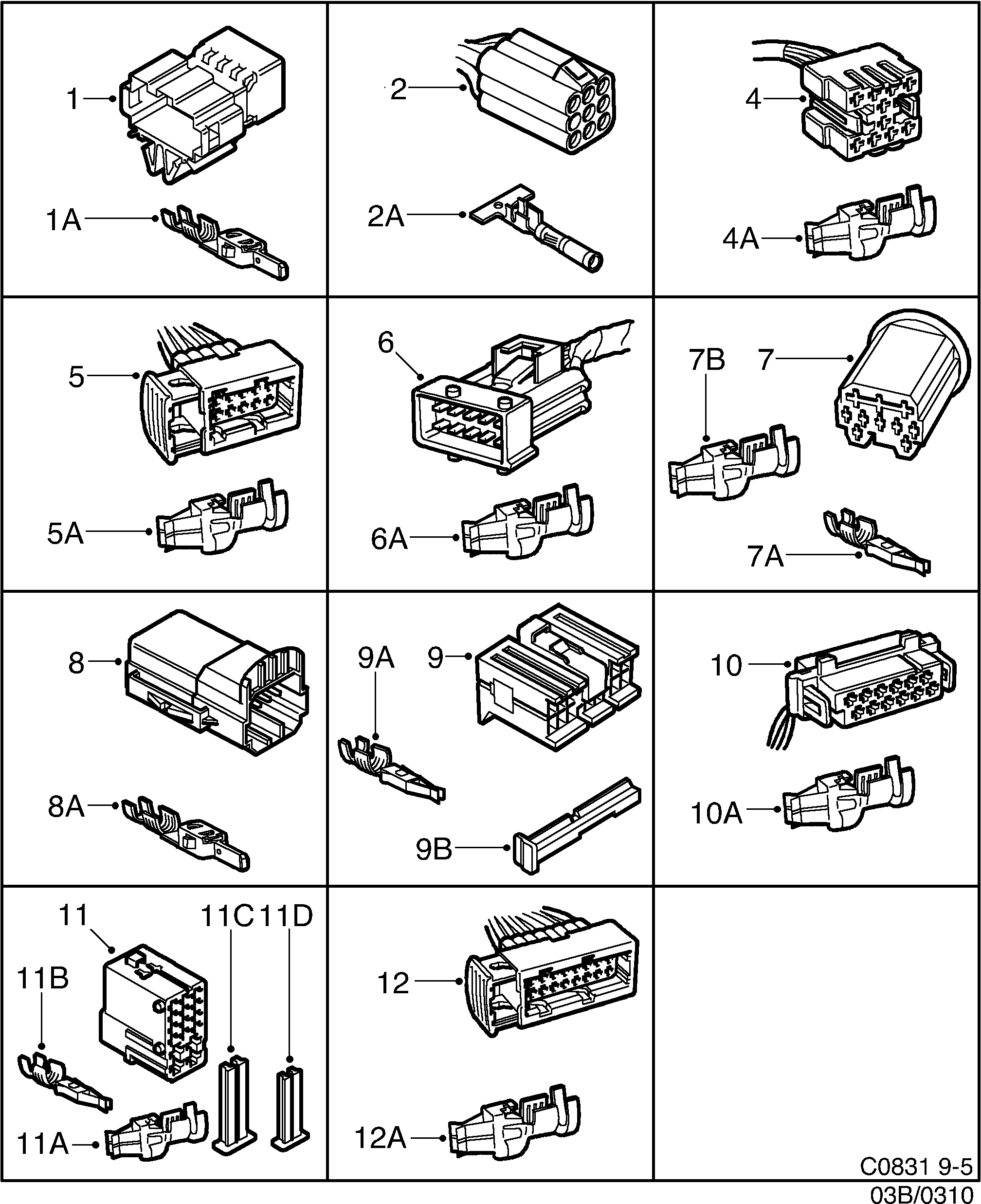

Saab 9-5 (9600) Connector housing etc 8-pin-16-pin diagram

Pos	Article	Part No.
1	Connector housing	12790204 (replaces 4807988)
1A	Cable terminal	12790614 (replaces 4115457)
2	Connector housing	4201208
2A	Cable terminal	30552537 (replaces 4409728)
4	Connector housing	12764801 (replaces 9123399)
4A	Cable terminal	12789796 (replaces 9120957)
4A	Cable terminal	4464343
5	Connector housing	12788954 (replaces 4114005)
5A	Cable terminal	4350526
5A	Cable terminal	4061586
6	Connector housing	12788959 (replaces 4114054)
7	Connector housing	12756334 (replaces 4411518)
7A	Cable terminal	12790414 (replaces 4115499)
7	Connector housing	12756333 (replaces 4411526)
8	Connector housing	4587903
8A	Cable terminal	12789934 (replaces 4115077)
8	Connector housing	4587895
9	Connector housing	4739165
9B	Locking	4739173
10	Connector housing	9525031
11	Connector housing	4737060
11B	Cable terminal	4466801
11C	Locking	4737086
11D	Locking	4737094
12	Connector housing	12791005 (replaces 4114401)
12A	Cable terminal	12790467 (replaces 4063970)
