Saab 9-5 (9600) 2000-2000 Connector housing etc 4-pin-8-pin

Group 3b Electrical, connector, section 305

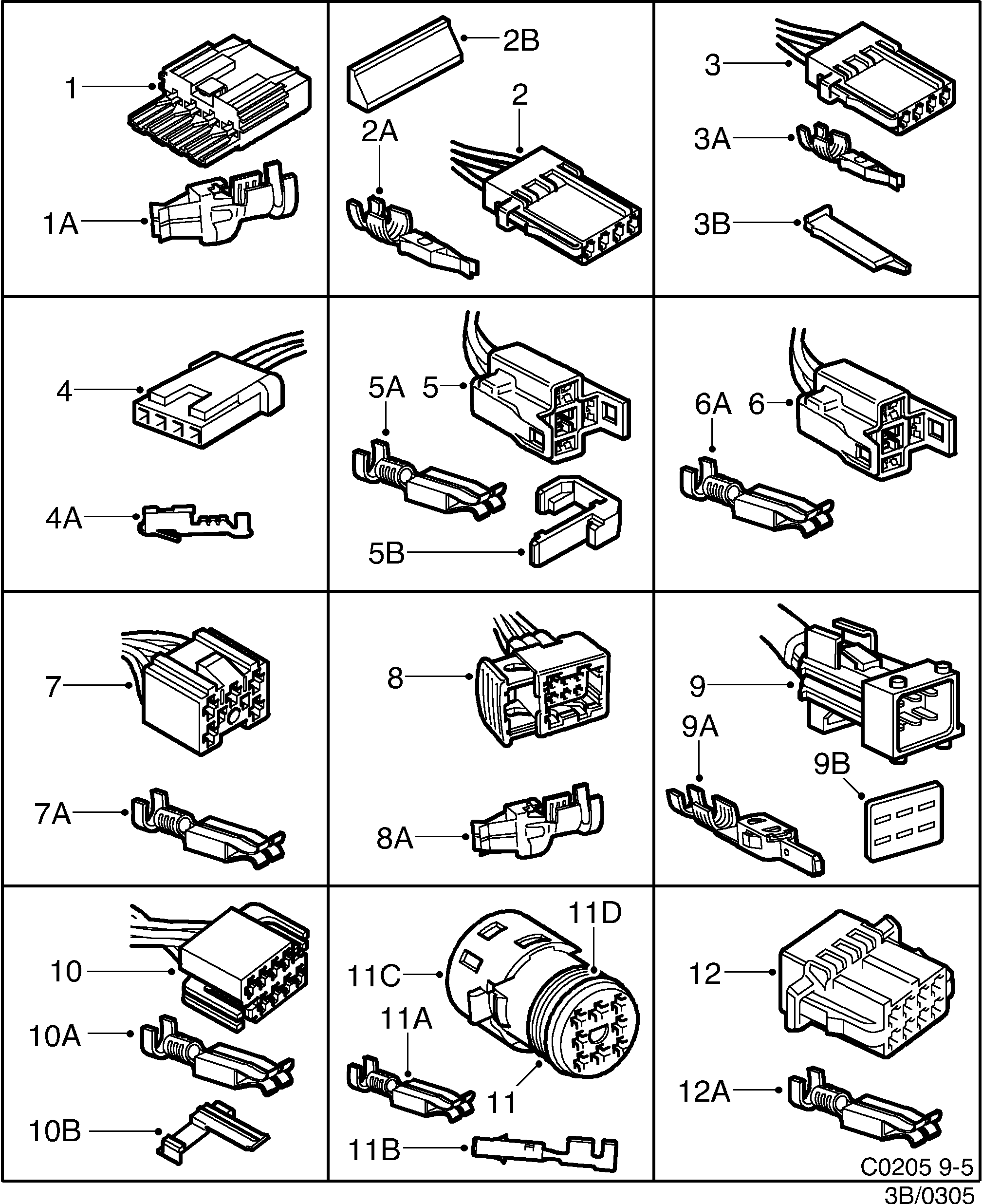

Saab 9-5 (9600) Connector housing etc 4-pin-8-pin diagram

Pos	Article	Part No.
1	Connector housing	4230181
1A	Cable terminal	4464343
2	Connector housing	12789433 (replaces 4733242)
2A	Cable terminal	12790414 (replaces 4115499)
2B	Locking	12789185 (replaces 4733267)
3	Connector housing	4733259
4	Connector housing	4537411
4A	Cable terminal	4538310
5	Connector housing	4224317
5A	Cable terminal	30520557 (replaces 9120791)
5B	Locking	4224333
6	Connector housing	4811261
7	Connector housing	4224168
8	Connector housing	12788966 (replaces 4113809)
8A	Cable terminal	4061586
8A	Cable terminal	12789796 (replaces 9120957)
9	Connector housing	4113858
9A	Cable terminal	12789934 (replaces 4115192)
9B	Seal	4114377
10	Connector housing	12798372 (replaces 5241674)
10B	Locking	5241401
11	Connector housing	4466462
11A	Cable terminal	4350526
11B	Cable terminal	4538229
11C	Cover	4466470
11D	Seal	4692828
12	Connector housing	12789185 (replaces 4807962)
12	Connector housing	12789185 (replaces 4807970)
