Saab 9-5 (9600) 2000-2000 Connector housing etc 2-pin-2-pin

Group 3b Electrical, connector, section 295

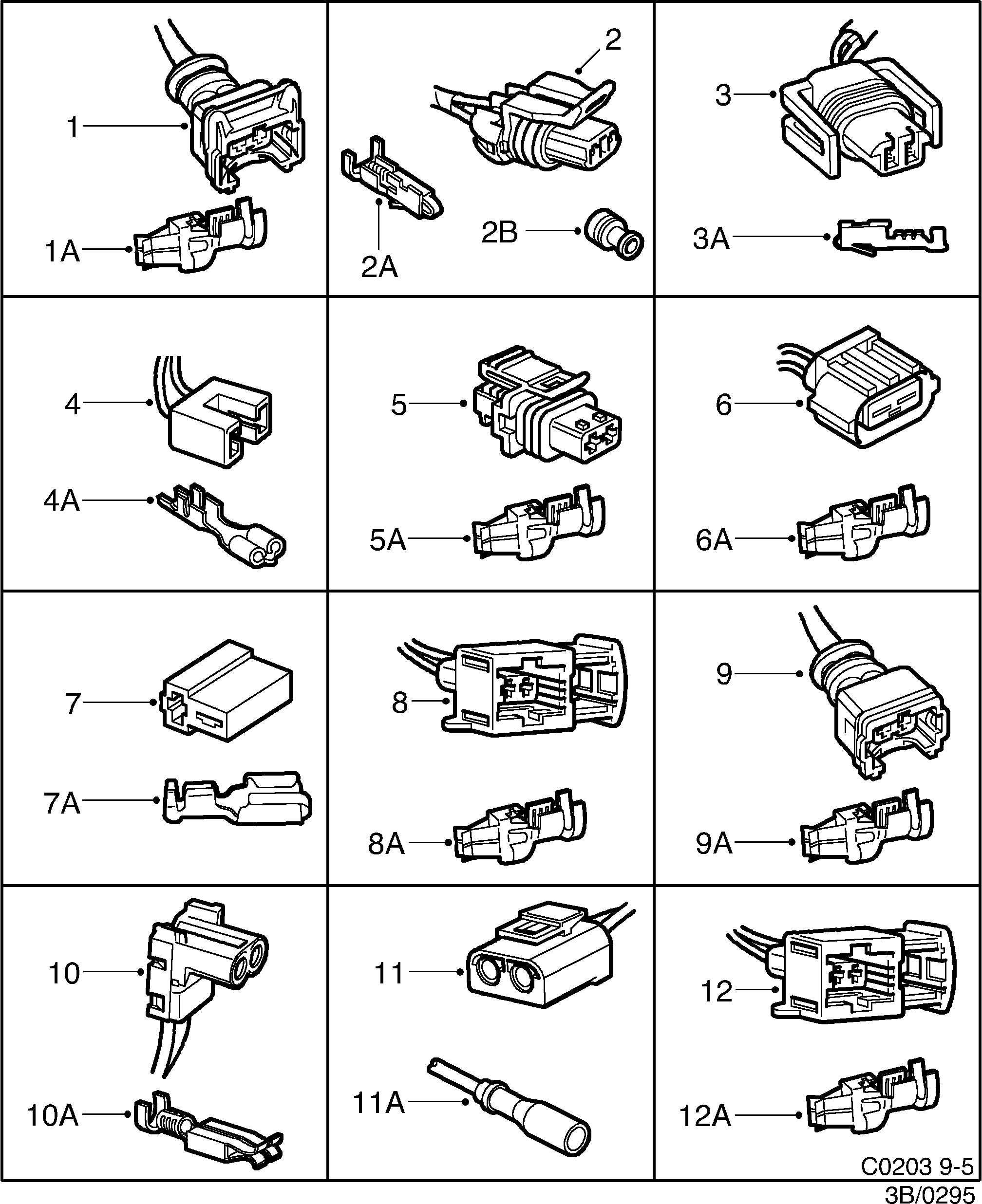

Saab 9-5 (9600) Connector housing etc 2-pin-2-pin diagram

Pos	Article	Part No.
1	Connector housing	12790247 (replaces 4178414)
1A	Cable terminal	4061586
2	Connector housing	12790252 (replaces 4201224)
2A	Cable terminal	4418505
2B	Locking	12789184 (replaces 4201232)
3	Connector housing	4434841
3A	Cable terminal	4488458
4	Connector housing	12790259 (replaces 4203733)
4A	Cable terminal	12798482 (replaces 4464442)
5	Connector housing	12790267 (replaces 4668596)
6	Connector housing	4738175
7	Connector housing	12790282 (replaces 8574949)
7A	Cable terminal	4464400
8	Connector housing	12790273 (replaces 4811162)
8A	Cable terminal	12970428 (replaces 4354171)
9	Connector housing	4807475
10	Connector housing	30520661 (replaces 9124157)
10A	Cable terminal	30520557 (replaces 9120791)
11	Connector housing	9503319
11A	Connector	8547804
12	Connector housing	12788982 (replaces 4113403)
