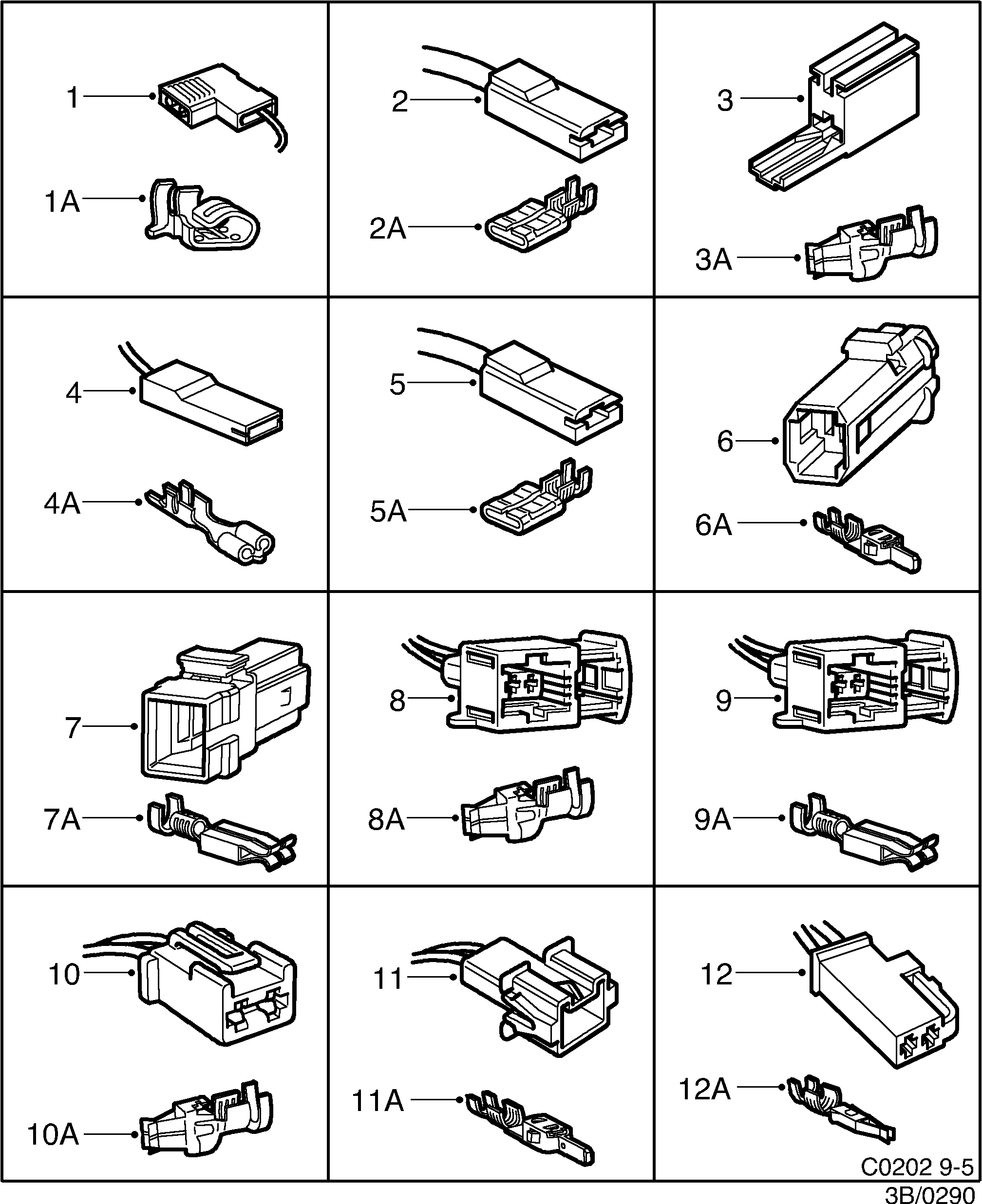

Group 3b Electrical, connector, section 290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 12790263 (replaces 4489076) |
| 1A | Cable terminal | 12756957 (replaces 4489084) |
| 1 | Connector housing | 8521692 |
| 1A | Cable terminal | 8521684 |
| 2 | Connector housing | 4537254 |
| 2A | Cable terminal | 4537221 |
| 3 | Connector housing | 4230199 |
| 3A | Cable terminal | 4464343 |
| 4 | Connector housing | 8521544 |
| 4A | Cable terminal | 4409801 |
| 5 | Connector housing | 12790271 (replaces 4808218) |
| 5A | Cable terminal | 4516183 |
| 6 | Connector housing | 4948626 |
| 6A | Cable terminal | 4115580 |
| 7 | Connector housing | 4948618 |
| 7A | Cable terminal | 30520557 (replaces 9120791) |
| 8 | Connector housing | 12788933 (replaces 4113205) |
| 8A | Cable terminal | 4061586 |
| 8 | Connector housing | 4174207 |
| 8A | Cable terminal | 4812624 |
| 9 | Connector housing | 12788982 (replaces 4113411) |
| 9A | Cable terminal | 12970428 (replaces 4354171) |
| 10 | Connector housing | 12790106 (replaces 9123548) |
| 10A | Cable terminal | 12789796 (replaces 9120957) |
| 11 | Connector housing | 12795968 (replaces 4117164) |
| 11A | Cable terminal | 12789934 (replaces 4115077) |
| 12 | Connector housing | 12789425 (replaces 4176780) |
| 12A | Cable terminal | 12790414 (replaces 4115499) |
