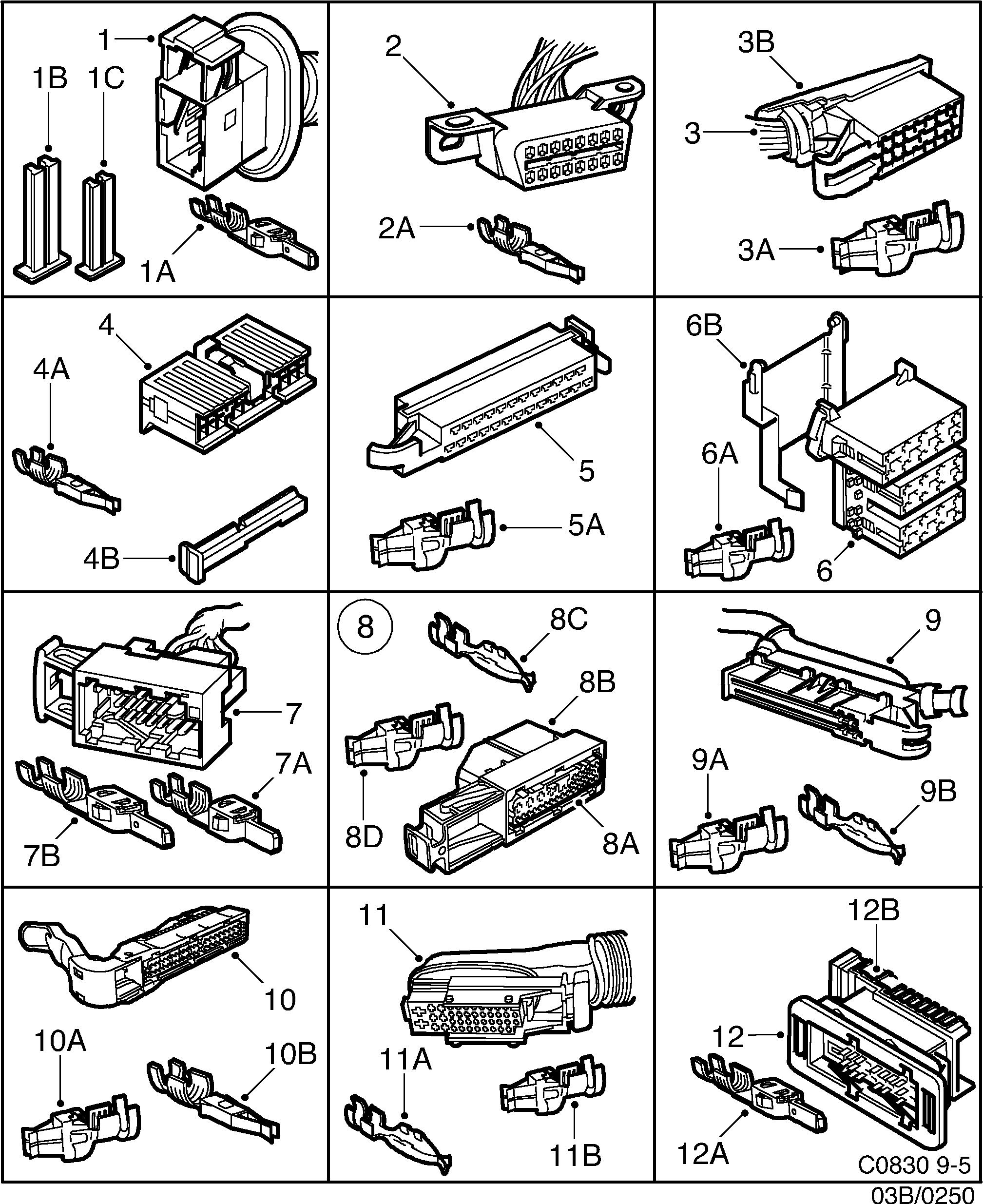

Group 3b Electrical, connector, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 4737102 |
| 1A | Cable terminal | 12790614 (replaces 4115457) |
| 1A | Cable terminal | 4115275 |
| 1A | Cable terminal | 12789934 (replaces 4115077) |
| 1A | Cable terminal | 4466801 |
| 1B | Locking | 4737086 |
| 1C | Locking | 4737094 |
| 2 | Connector housing | 4807954 |
| 2A | Cable terminal | 12790414 (replaces 4115499) |
| 3 | Connector housing | 4060893 |
| 3A | Cable terminal | 30520557 (replaces 9120791) |
| 3A | Cable terminal | 12789796 (replaces 9120957) |
| 3B | Cover | 4067617 |
| 4 | Connector housing | 4739181 |
| 4B | Locking | 4739199 |
| 5 | Connector housing | 4176186 |
| 6 | Connector housing | 4587846 |
| 6B | Cover | 4587853 |
| 7 | Connector housing | 4806873 |
| 7B | Cable terminal | 4115580 |
| 8 | Connector housing | 4665964 |
| 8A | Connector housing | 4809133 |
| 8B | Cover | 4809141 |
| 8C | Cable terminal | 4354353 |
| 8C | Cable terminal | 4669669 |
| 8D | Cable terminal | 12970428 (replaces 4354171) |
| 8D | Cable terminal | 4669693 |
| 9 | Connector housing | 9565045 |
| 9B | Cable terminal | 12790467 (replaces 4063970) |
| 10 | Connector housing | 4589842 |
| 11 | Connector housing | 12797694 (replaces 4811212) |
| 11A | Cable terminal | 4538229 |
| 11B | Cable terminal | 4061586 |
| 11C | Locking | 12797692 (replaces 4737029) |
| 11D | Locking | 5108154 |
| 12 | Connector housing | 12797699 (replaces 4811238) |
| 12A | Cable terminal | 4535548 |
| 12B | Seal | 4587713 |
