Saab 9-5 (9600) 2002-2010 Relays and fuses DICE

Group 3a Electrical, general, section 972

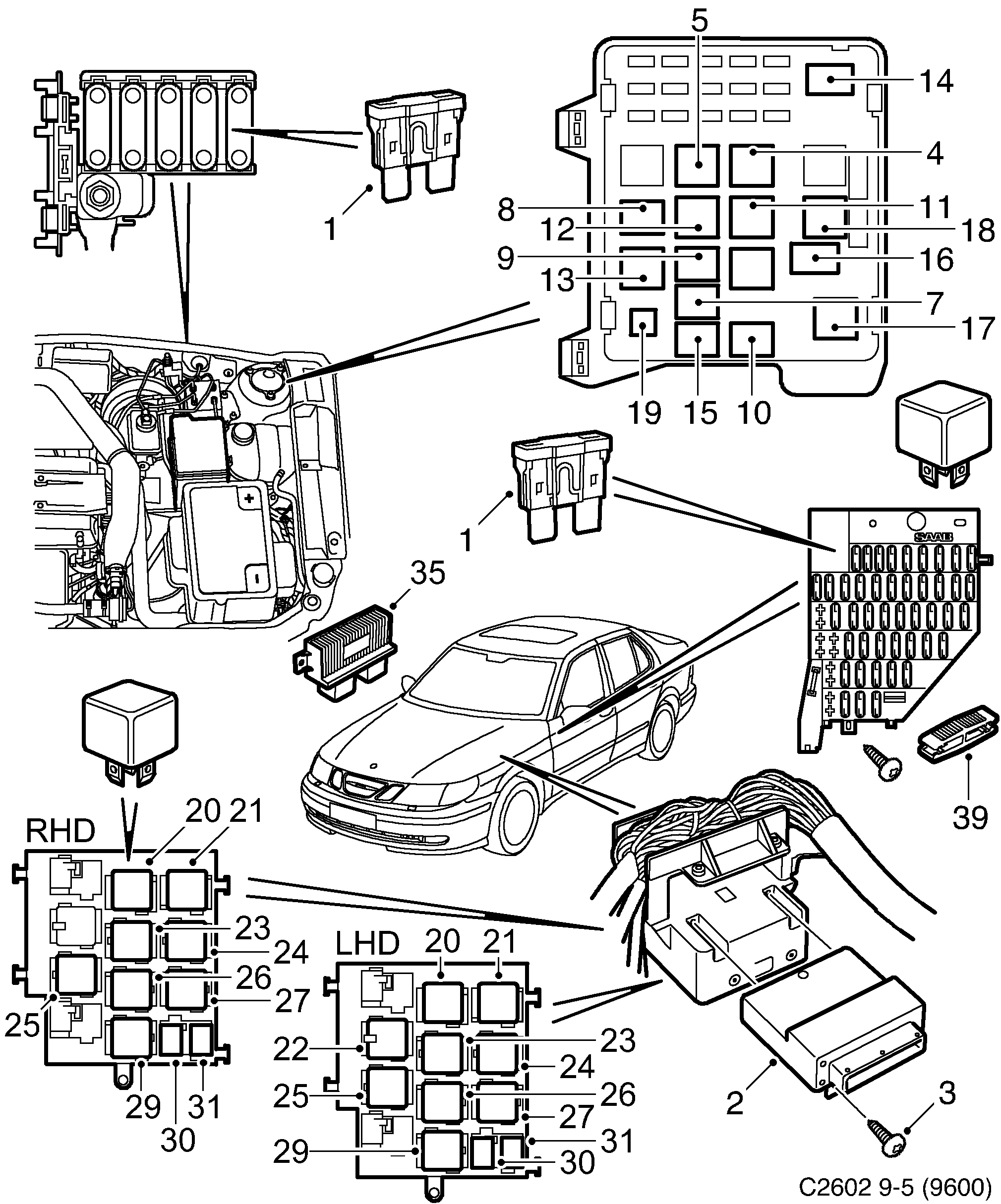

Saab 9-5 (9600) Relays and fuses DICE diagram

Pos	Article	Part No.
1	Fuse	7974611
1	Fuse	7974629
1	Fuse	24426654 (replaces 7987357)
1	Fuse	7974637
1	Fuse	24426655 (replaces 7987365)
1	Fuse	7974645
1	Fuse	24426656 (replaces 7987373)
1	Fuse	7974652
1	Fuse	7974660
1	Fuse	7974678
1	Fuse	7987407
1	Fuse	7983042
1	Fuse	7983067
2	Electronic unit	5266267 (replaces 5263116)
2	Electronic unit	5266267
3	Screw	92150118
3	Screw	92151597
4	Relay	8533176
7	Relay	13266315 (replaces 4224200)
8	Relay	4947115
9	Relay	5549597
17	Relay	4109070
19	Fuse clip	5354006
22	Relay	5246350
35	Relay	5343538 (replaces 5340138)
35	Relay	5343538
35	Relay	55354141 (replaces 5165675)
35	Relay	55354141
35	Relay	55353011
39	Fuse clip	8587636
