Saab 9-5 (9600) 1998-2010 Holders and brackets

Group 3a Electrical, general, section 940

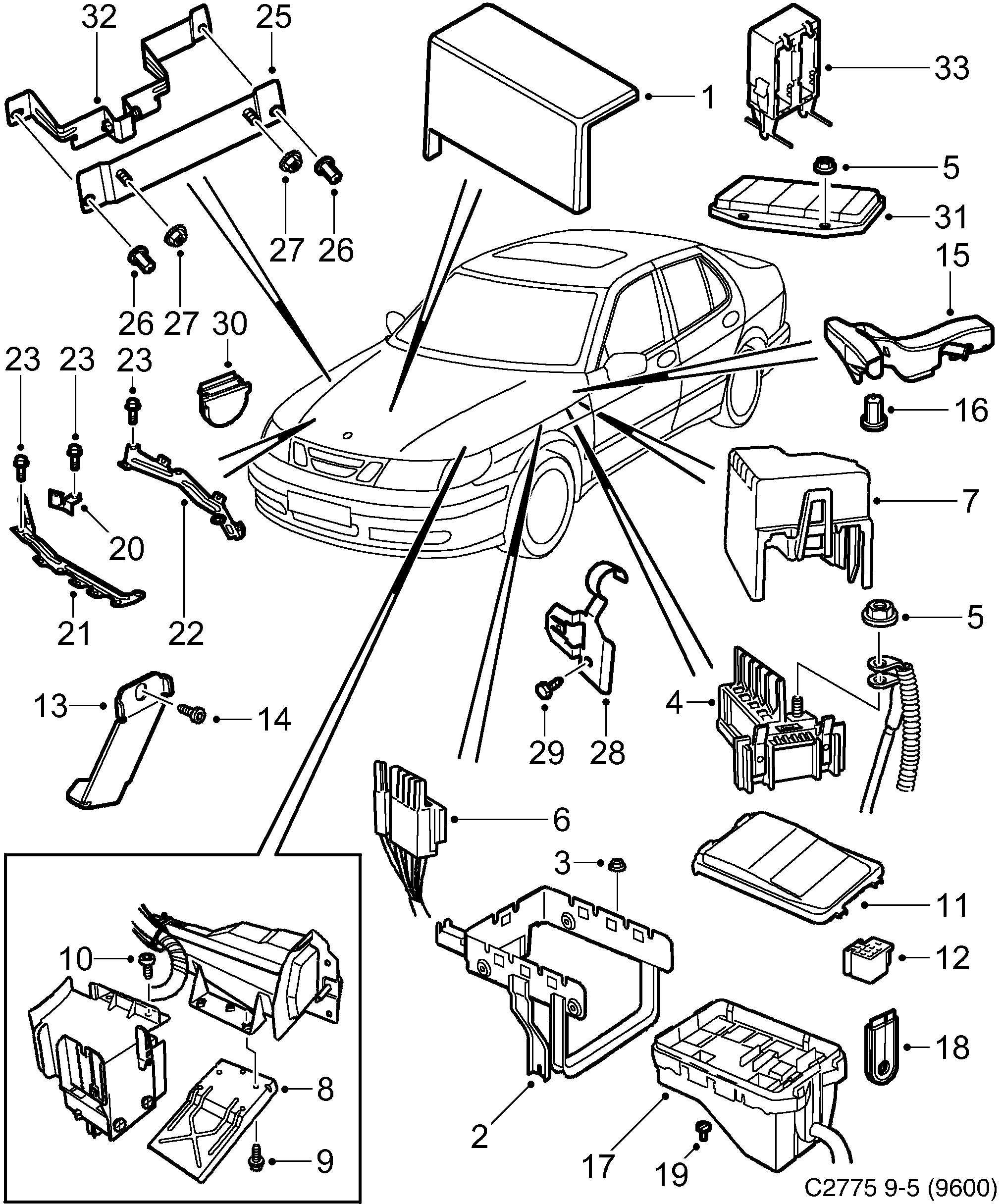

Saab 9-5 (9600) Holders and brackets diagram

Pos	Article	Part No.
1	Cover	12764467 (replaces 4733176)
1	Cover	12764467 (replaces 5101688)
1	Cover	12764467
2	Bracket	4589040
2	Bracket	5243548
2	Bracket	5549829
3	Nut	7985377
4	Fuse holder	4814349
4	Fuse holder	5350079
5	Nut	11900451 (replaces 92150133)
6	Fuse holder	4814349 (replaces 4410577)
7	Cover	4693362
8	Shelf	4929345
9	Screw	92153146
10	Screw	92153006 (replaces 7977002)
11	Cover	4948709 (replaces 4946067)
11	Cover	4948709
11	Cover	5106240
11	Cover	5108139
11	Cover	5241922
11	Cover	5471081 (replaces 5248950)
11	Cover	5471081
11	Cover	12758453 (replaces 5243308)
12	Bracket	4409934
12	Bracket	4409942
12	Bracket	30560919 (replaces 4409959)
13	Bracket	4806725
14	Screw	92150012 (replaces 7978182)
15	Cover	5248810 (replaces 4949236)
15	Cover	5248810
16	Plastic nut	92152035 (replaces 4087128)
17	Box	4585840
17	Box	5243290
18	Grommet	4233375
19	Draining plug	7116452
20	Bracket	5954912
21	Bracket	5954920
22	Bracket	5954938
23	Screw	32000275
25	Bracket	5340146
27	Nut	11900451 (replaces 7977929)
28	Bracket	5351218
29	Screw	92153149 (replaces 7977465)
29	Screw	92153149
30	Plug	5359575
30	Plug	5359583
31	Cover	5359567
32	Bracket	5340856
33	Bracket	12764483
