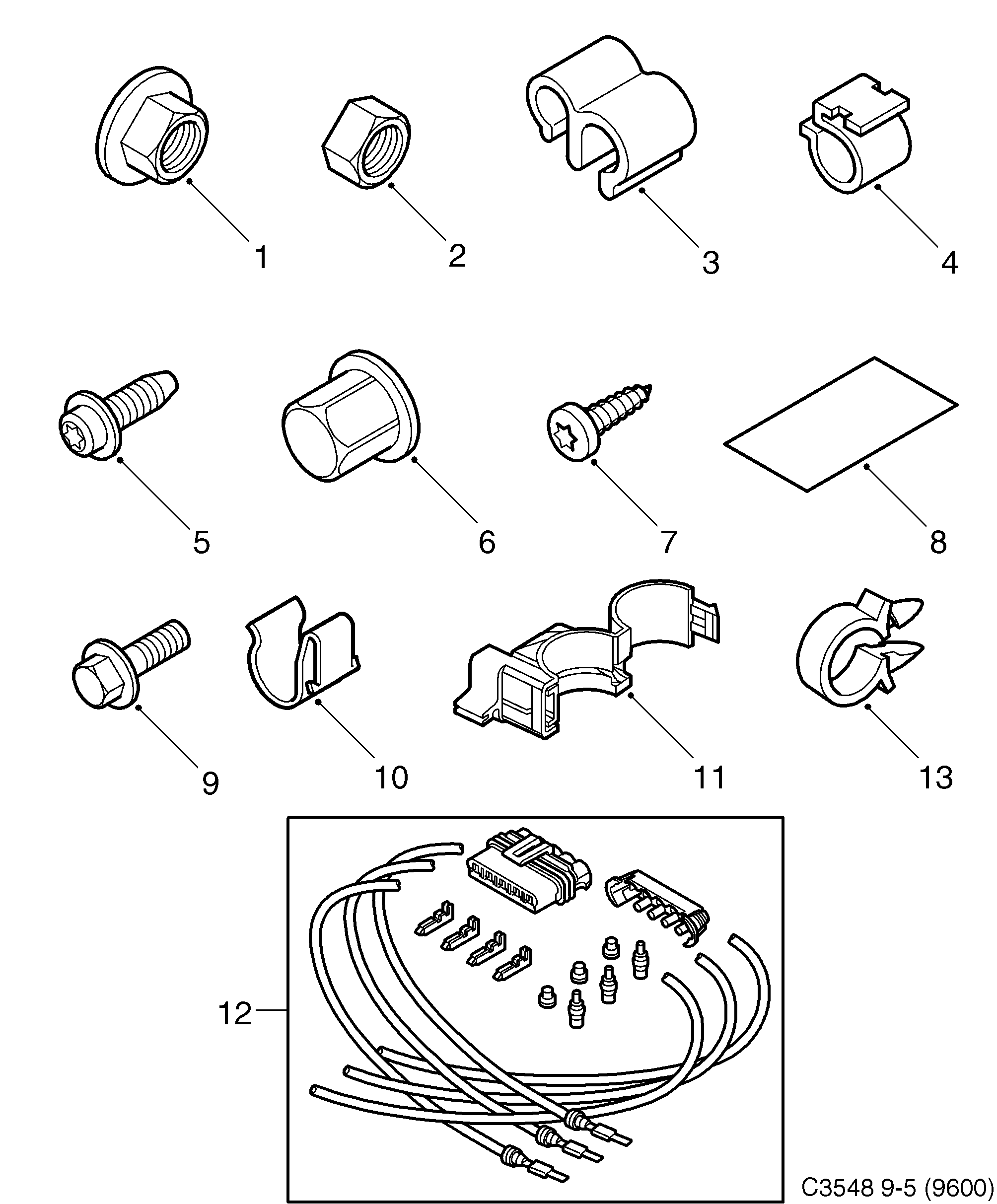

Group 3a Electrical, general, section 934
| Pos | Article | Part No. |
|---|---|---|
| 1 | Hexagon nut | 11900452 (replaces 7977952) |
| 1 | Nut | 11900451 (replaces 92150133) |
| 1 | Nut | 11900451 |
| 1 | Nut | 11900439 (replaces 4348637) |
| 1 | Nut | 11900439 |
| 1 | Nut | 92153044 (replaces 7974298) |
| 1 | Nut | 12802365 (replaces 4087664) |
| 1 | Nut | 32026207 (replaces 7977911) |
| 1 | Nut | 11900445 |
| 2 | Nut | 7985377 |
| 2 | Nut | 92151925 (replaces 92150596) |
| 2 | Nut | 92152037 |
| 2 | Nut | 92152035 |
| 3 | Tube clamp | 12793419 (replaces 9106139) |
| 3 | Clamp | 12793419 |
| 4 | Clamp | 7156409 |
| 4 | Clamp | 4464483 |
| 5 | Screw | 11900378 (replaces 7978372) |
| 6 | Plastic nut | 92152035 (replaces 4087128) |
| 7 | Screw | 92153006 (replaces 7977002) |
| 8 | Tape | 4948808 |
| 8 | Anti-screech felt | 5014766 |
| 8 | Spacer plate | 4242087 |
| 8 | Tape | 12785155 |
| 9 | Screw | 92153149 (replaces 7977465) |
| 9 | Screw | 7982366 |
| 9 | Screw | 92153146 |
| 9 | Screw | 11900353 |
| 9 | Screw | 11900357 |
| 9 | Screw | 92150012 |
| 9 | Screw | 32000275 |
| 9 | Screw | 4573309 |
| 9 | Screw | 11900364 |
| 10 | Clamp | 12755295 (replaces 9383043) |
| 10 | Clamp | 12755295 |
| 10 | Clip | 9128519 (replaces 4504924) |
| 10 | Clip | 9128519 (replaces 4773974) |
| 11 | Clip | 4808275 |
| 11 | Clamp | 4899837 |
| 12 | Connector housing | 93189918 |
| 13 | Clamp | 11900515 (replaces 92150209) |
