Saab 9-5 (9600) 2006-2010 Doors, roof and rear hatch

Group 3a Electrical, general, section 903

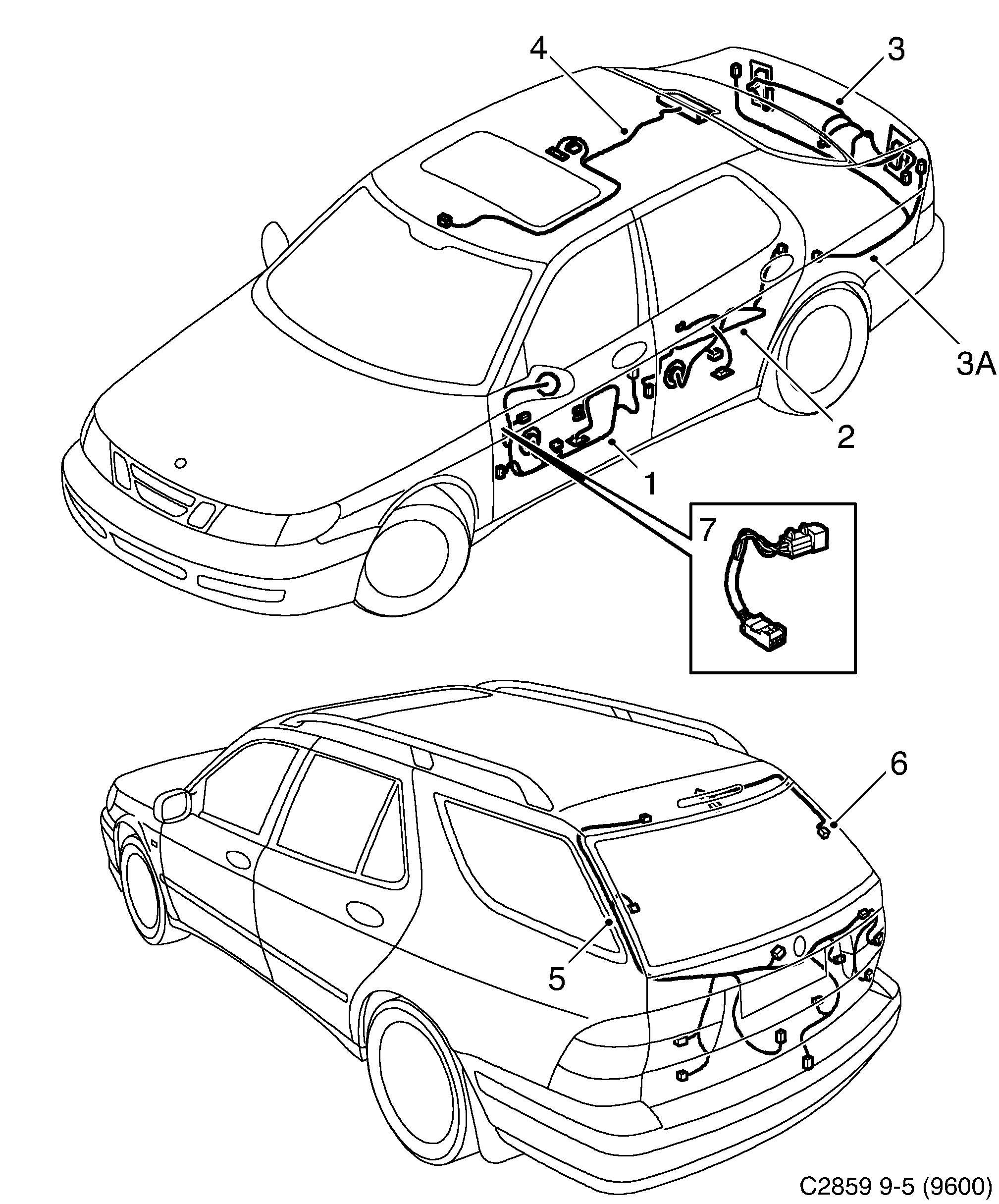

Saab 9-5 (9600) Doors, roof and rear hatch diagram

Pos	Article	Part No.
1	Cable harness	5355789
1	Cable harness	32000273
1	Cable harness	5359468
1	Cable harness	32000274
2	Cable harness	5602966
2	Cable harness	12781444
3	Cable harness	12758900
3	Cable harness	12772136
3A	Cable harness	12768863
	Seal	4061966
	Seal	12798372
	Cable terminal	12790414
	Seal	12798375 (replaces 4354239)
	Connector housing	12797694
	Cable harness	12756939
	Tie strap	7971864
	Cable terminal	30520557
3A	Cable harness	12768862
	Cable harness	12756940
	Cable terminal	12789796
4	Cable harness	12766247
4	Cable harness	12764156
4	Cable harness	12766248
4	Cable harness	12764157
5	Cable harness	12758899
5	Cable harness	12772137
6	Cable harness	12758898
7	Cable harness	5248141
