Saab 9-5 (9600) 2004-2005 Front

Group 3a Electrical, general, section 890

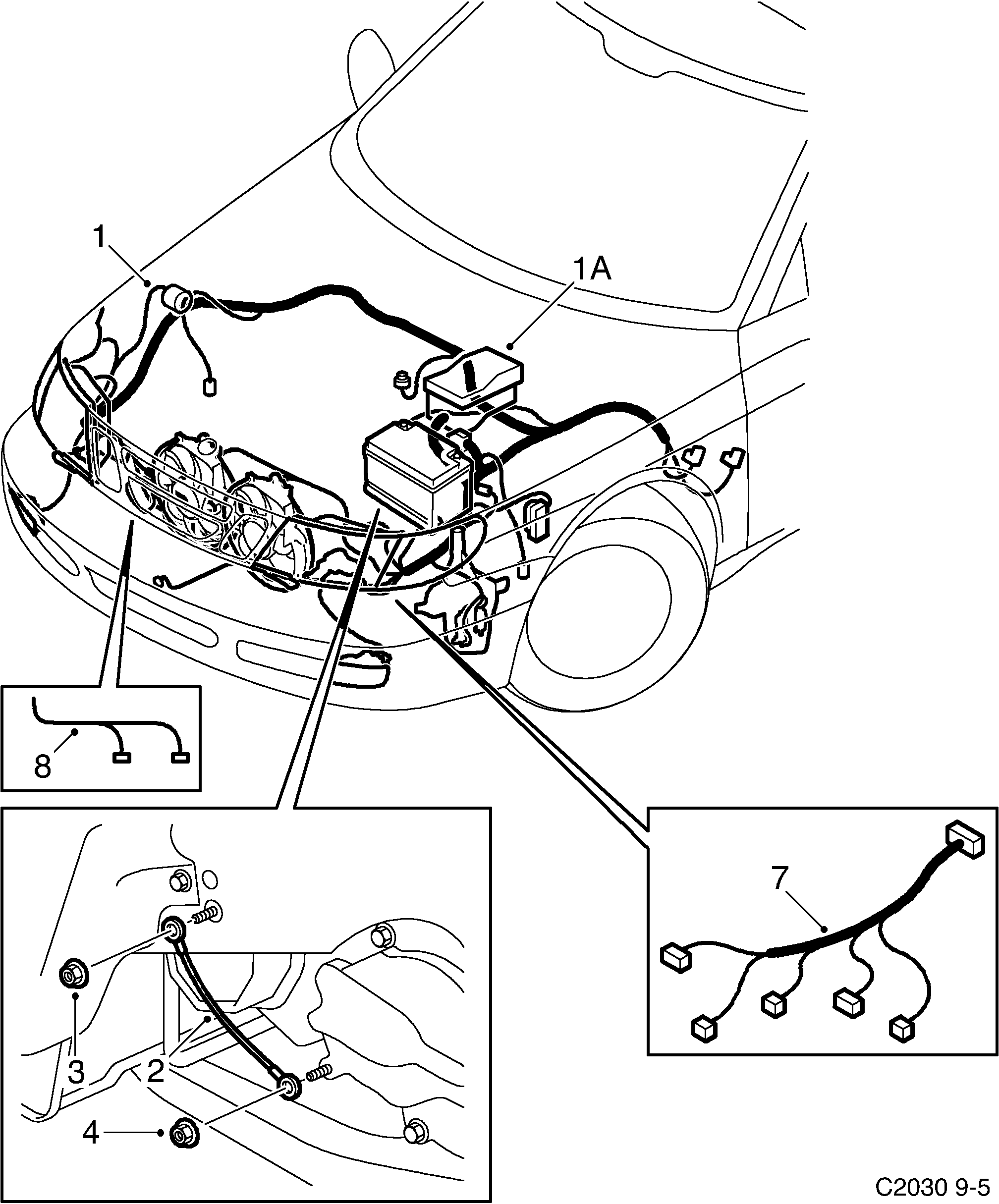

Saab 9-5 (9600) Front diagram

Pos	Article	Part No.
1	Cable harness	5478029
1	Cable harness	5478003
1	Cable harness	5478011
1	Cable harness	5548227
1	Cable harness	5548201
1	Cable harness	5478045
1	Cable harness	5548250
1	Cable harness	5478037
1	Cable harness	5548243
1	Cable harness	5548235
1	Cable harness	5548219
1	Cable harness	5478094
1	Cable harness	5478086
1	Cable harness	5478078
1	Cable harness	5478052
1	Cable harness	5478060
1	Cable harness	5544994
1	Cable harness	5544978
1	Cable harness	5544986
1	Cable harness	5545017
1	Cable harness	5545058
1	Cable harness	5545009
1	Cable harness	5545041
1	Cable harness	5545033
1	Cable harness	5545025
2	Ground cable	5476486
3	Hexagon nut	11900452 (replaces 7977952)
4	Nut	11900451 (replaces 92150133)
7	Cable harness	5476445
	Cable terminal	12796085
7	Cable harness	5548524
7	Cable harness	5474440
8	Cable harness	5477989
8	Cable harness	5544952
