Saab 9-5 (9600) 2003-2003 Doors, roof and rear hatch

Group 3a Electrical, general, section 888

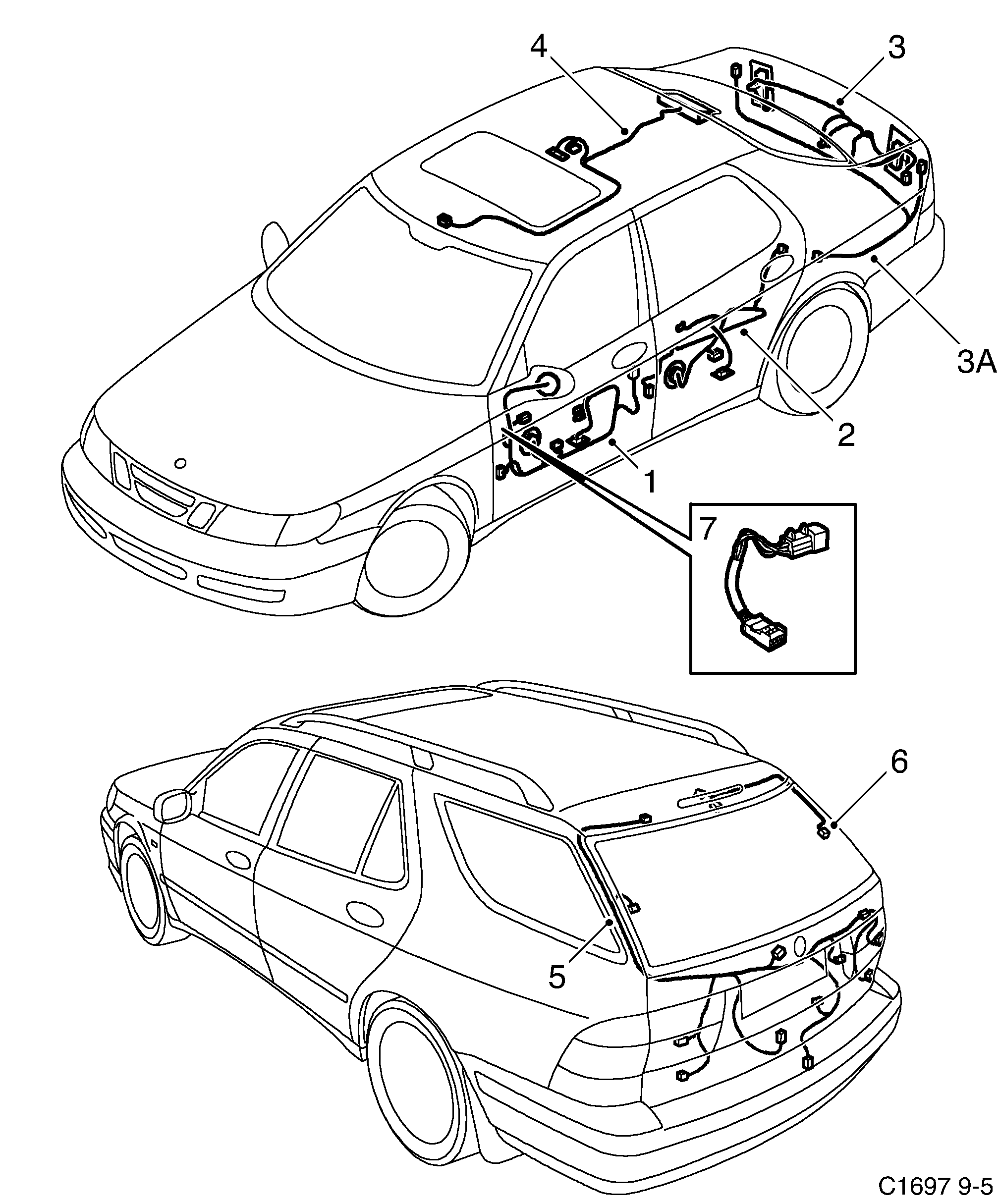

Saab 9-5 (9600) Doors, roof and rear hatch diagram

Pos	Article	Part No.
1	Cable harness	5355730
1	Cable harness	5355789
1	Cable harness	5359468
1	Cable harness	5359443
2	Cable harness	5476528
3	Cable harness	12767806 (replaces 5476494)
3A	Cable harness kit	5477716
	Seal	4061966
	Seal	12798372 (replaces 4061974)
	Cable terminal	12790414 (replaces 4115499)
	Seal	12798375 (replaces 4354239)
	Connector housing	12797694 (replaces 4811212)
	Cable harness	5244710
	Tie strap	7971864
	Cable terminal	12789796 (replaces 9120957)
3A	Cable harness kit	5477724
	Cable harness	5357496
	Cable terminal	30520557 (replaces 9120791)
4	Cable harness	12766247 (replaces 5476460)
4	Cable harness	12766248 (replaces 5476478)
5	Cable harness	5476502
6	Cable harness	5476510
7	Cable harness	5248141
