Saab 9-5 (9600) 2002-2002 Doors, roof and rear hatch

Group 3a Electrical, general, section 874

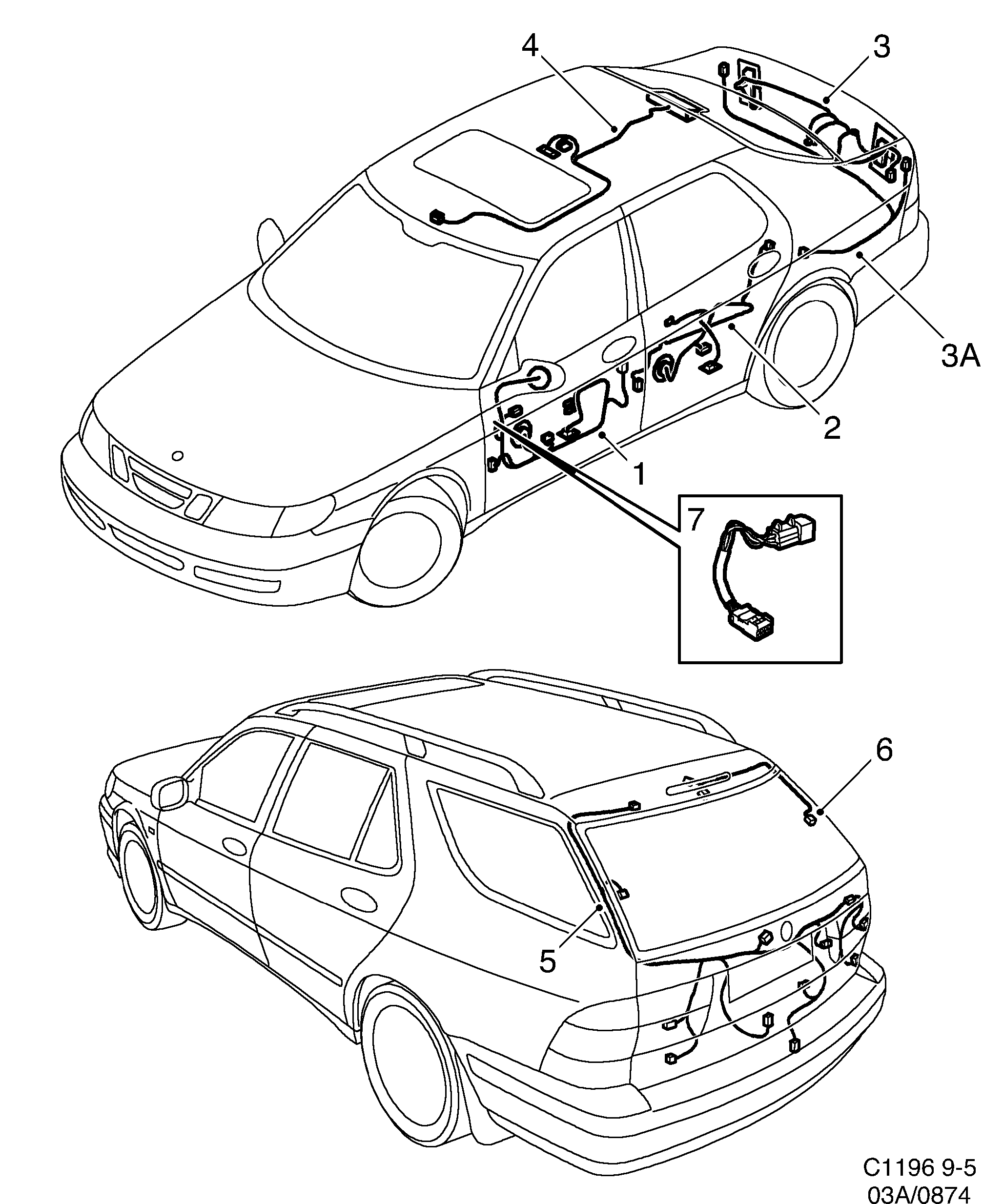

Saab 9-5 (9600) Doors, roof and rear hatch diagram

Pos	Article	Part No.
1	Cable harness	5470828
1	Cable harness	5470869
1	Cable harness	5470885
1	Cable harness	5470844
2	Cable harness	5102157
3	Cable harness	12767806 (replaces 5352240)
3A	Cable harness kit	5359401
	Seal	4061966
	Seal	12798372 (replaces 4061974)
	Cable terminal	12790414 (replaces 4115499)
	Seal	12798375 (replaces 4354239)
	Connector housing	12797694 (replaces 4811212)
	Cable harness	5244710
	Tie strap	7971864
	Cable terminal	30520557 (replaces 9120791)
	Cable terminal	12789796 (replaces 9120957)
3A	Cable harness kit	5359591
	Cable harness	5357496 (replaces 5244728)
4	Cable harness	12766247 (replaces 4927711)
4	Cable harness	4945283
5	Cable harness	5476502 (replaces 5351937)
6	Cable harness	5476510 (replaces 4945226)
7	Cable harness	5248141
