Saab 9-5 (9600) 2002-2002 Rear

Group 3a Electrical, general, section 872

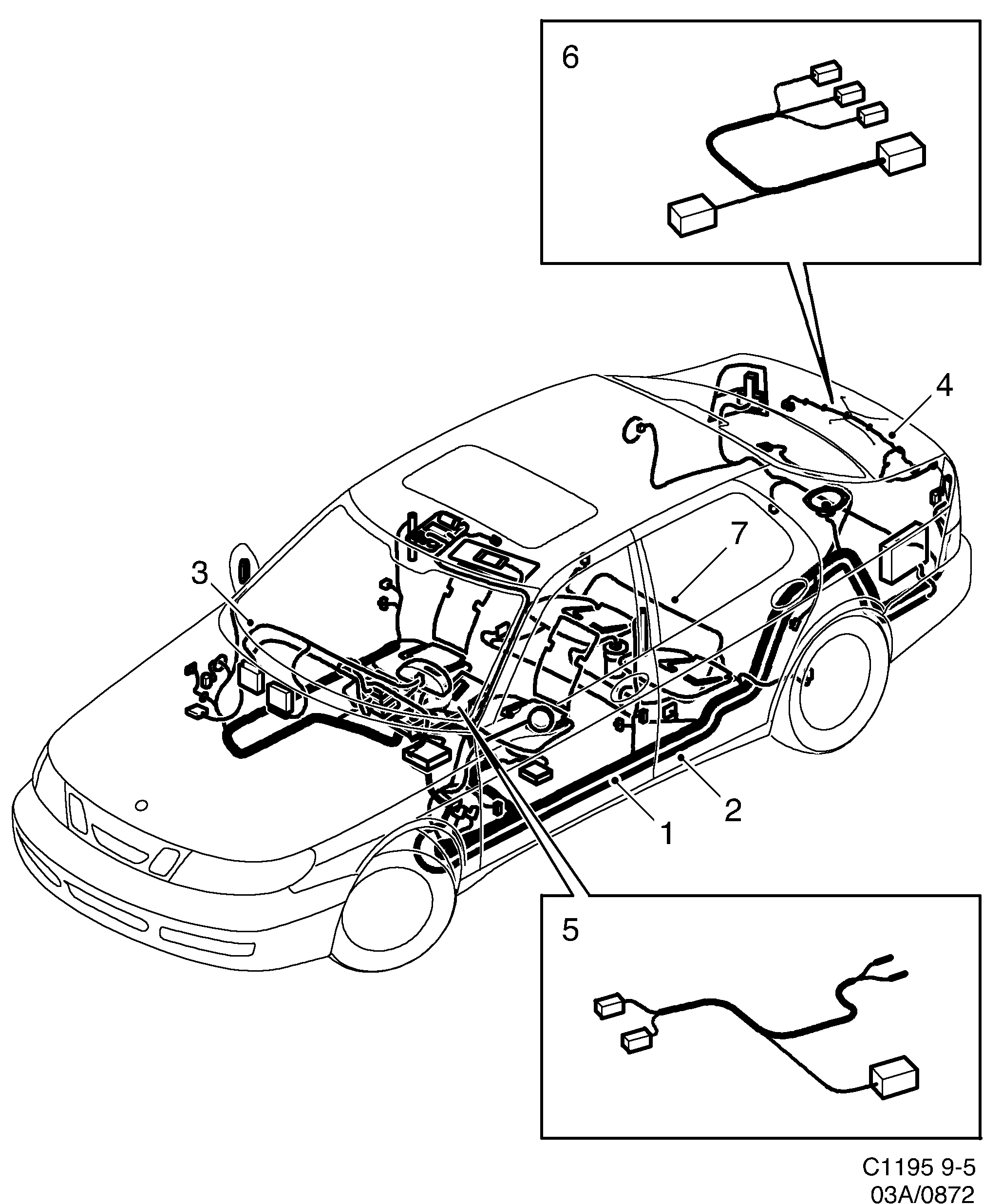

Saab 9-5 (9600) Rear diagram
PosArticlePart No.
1Cable harness5244736
1Cable harness5244744
1Cable harness5355516
1Cable harness5355524
1Cable harness5244751
1Cable harness5244769
1Cable harness5355532
1Cable harness5355540
2Cable4943841
5Cable harness5244694
6Cable harness12757092 (replaces 4927612)
7Cable harness5470679
Cable terminal4063087
Cable terminal4466801
Connector housing4737060
Locking4737086
Cable harness5545355 (replaces 5244702)
