Saab 9-5 (9600) 2002-2002 Instrument panel

Group 3a Electrical, general, section 868

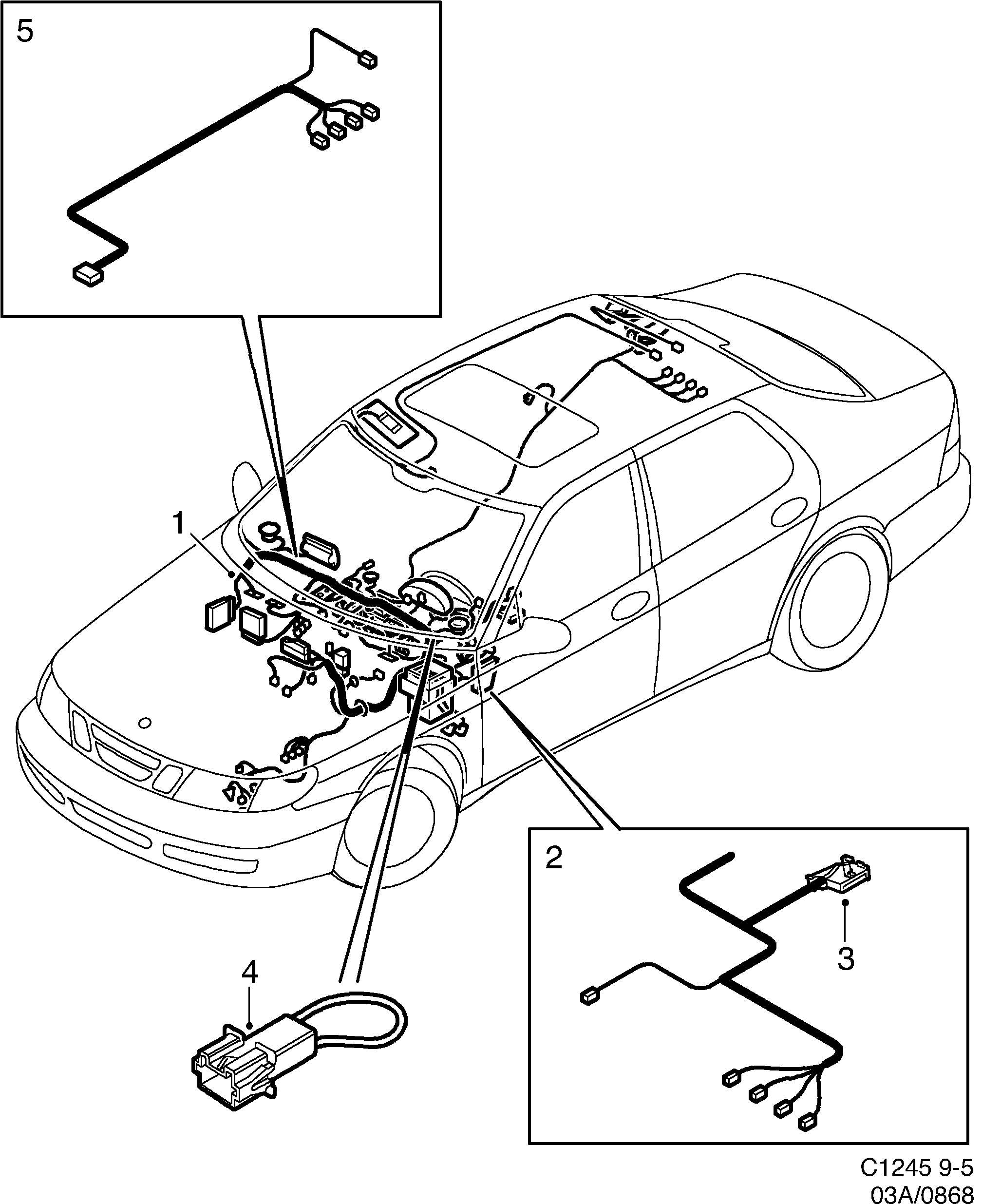

Saab 9-5 (9600) Instrument panel diagram
PosArticlePart No.
1Cable harness5245238
1Cable harness5245311
1Cable harness5245394
1Cable harness5245220
1Cable harness5245303
1Cable harness5245386
1Cable harness5245899
1Cable harness5245972
1Cable harness5355565
1Cable harness5245881
1Cable harness5245964
1Cable harness5355557
1Cable harness5355102
2Cable harness93167193 (replaces 5479571)
2Cable harness5479589
3Cover4739462
4Cable harness30581187 (replaces 5107305)
5Cable harness5357645 (replaces 5355243)
