Saab 9-5 (9600) 2002-2002 Front

Group 3a Electrical, general, section 862

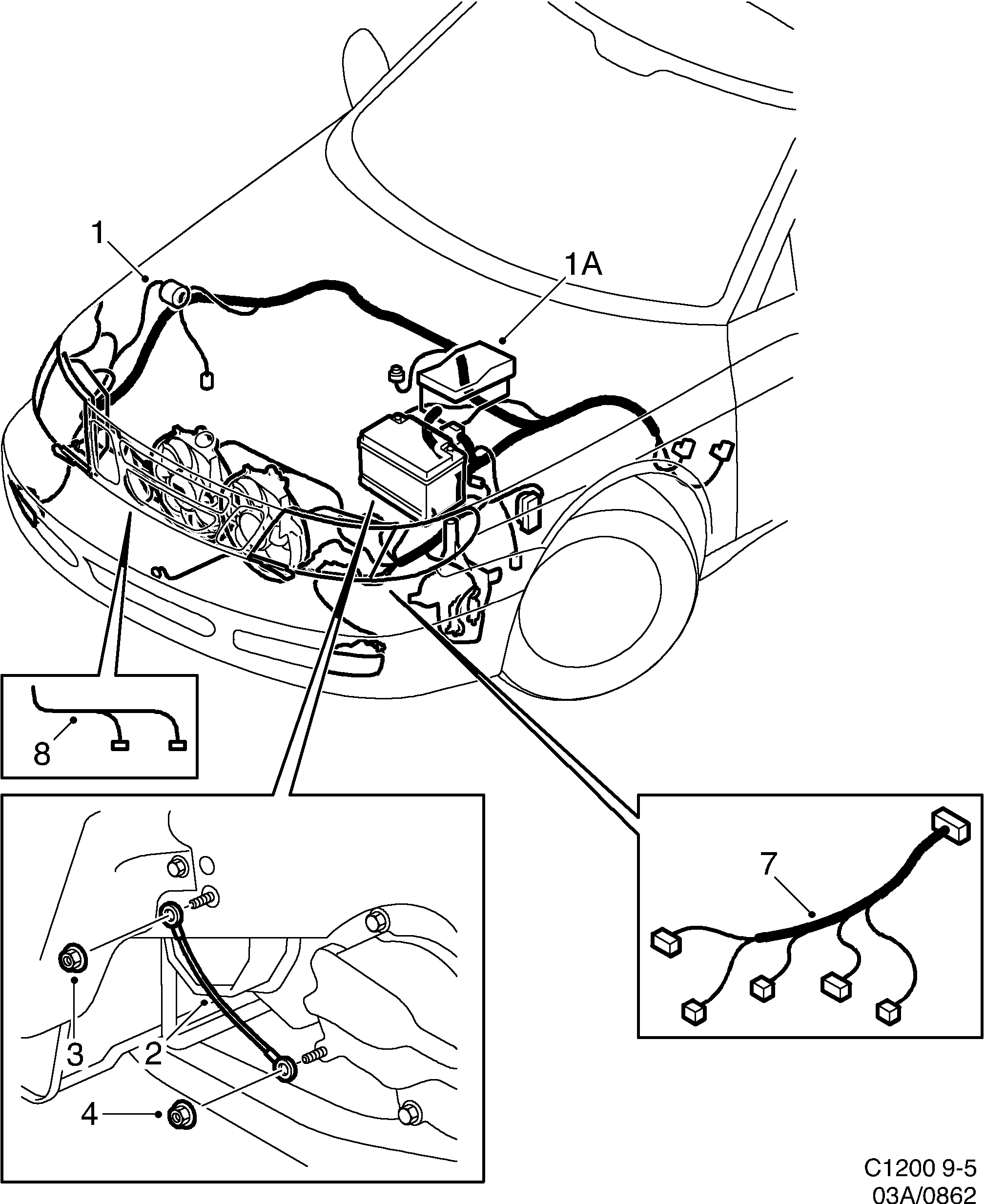

Saab 9-5 (9600) Front diagram
PosArticlePart No.
1Cable harness5244355
1Cable harness5244322
1Cable harness5244348
1Cable harness5244397
1Cable harness5244371
1Cable harness5355490
1Cable harness5355474
1Cable harness5355417
1Cable harness5355383
1Cable harness5355409
2Ground cable5476486 (replaces 4812541)
3Hexagon nut11900452 (replaces 7977952)
4Nut11900451 (replaces 7977929)
7Cable harness5476445 (replaces 5248430)
8Cable harness5476759 (replaces 5355201)
