Saab 9-5 (9600) 2001-2001 Instrument panel

Group 3a Electrical, general, section 854

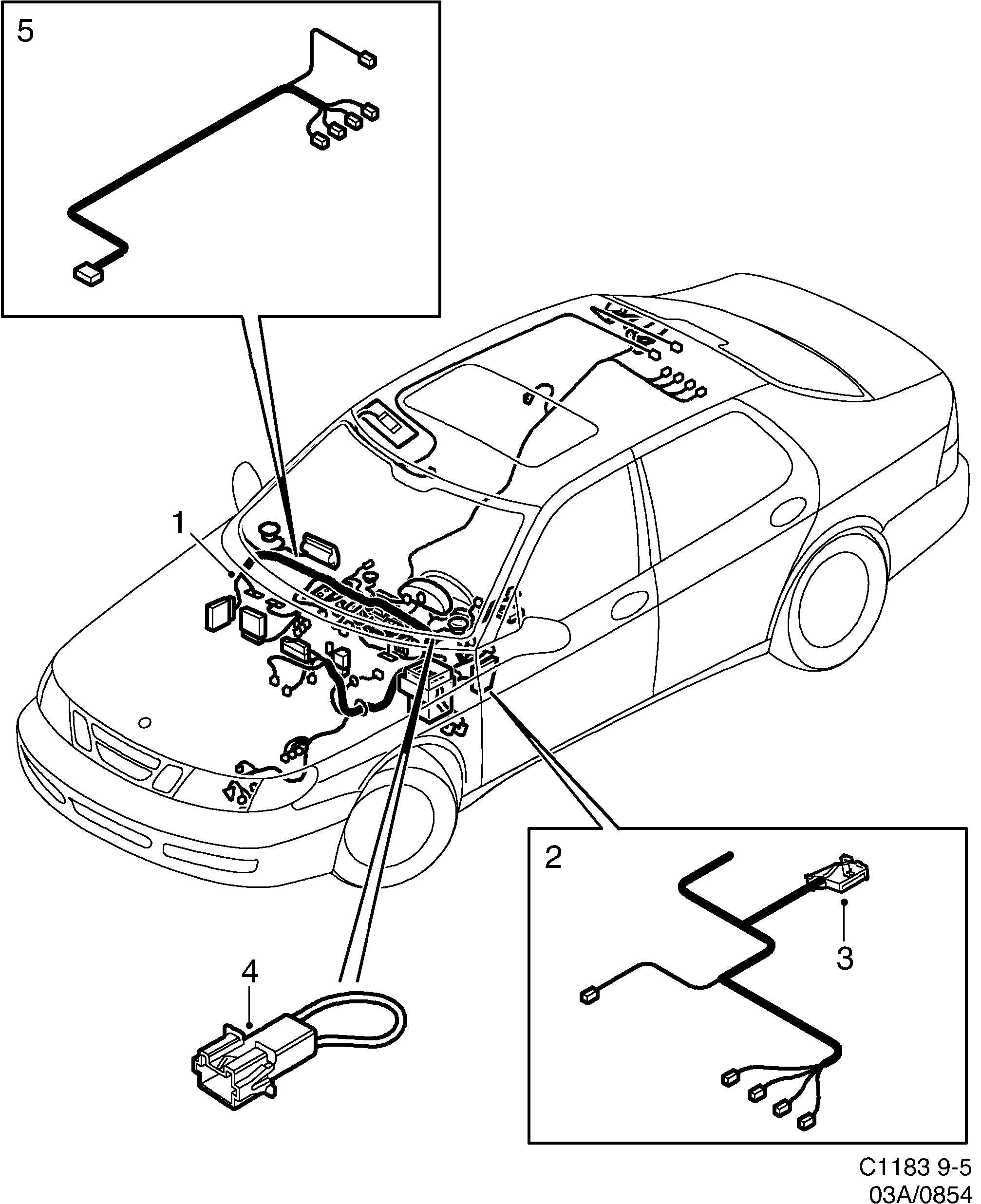

Saab 9-5 (9600) Instrument panel diagram
PosArticlePart No.
1Cable harness5242557
1Cable harness5242631
1Cable harness5242540
1Cable harness5242623
1Cable harness5242581
1Cable harness5242391
1Cable harness5242433
1Cable harness5242383
1Cable harness5242425
2Cable harness5474390
2Cable harness5474408
3Cover4739462
4Cable harness30581187 (replaces 5107305)
5Cable harness5357645 (replaces 5354659)
