Saab 9-5 (9600) 2001-2001 Front

Group 3a Electrical, general, section 848

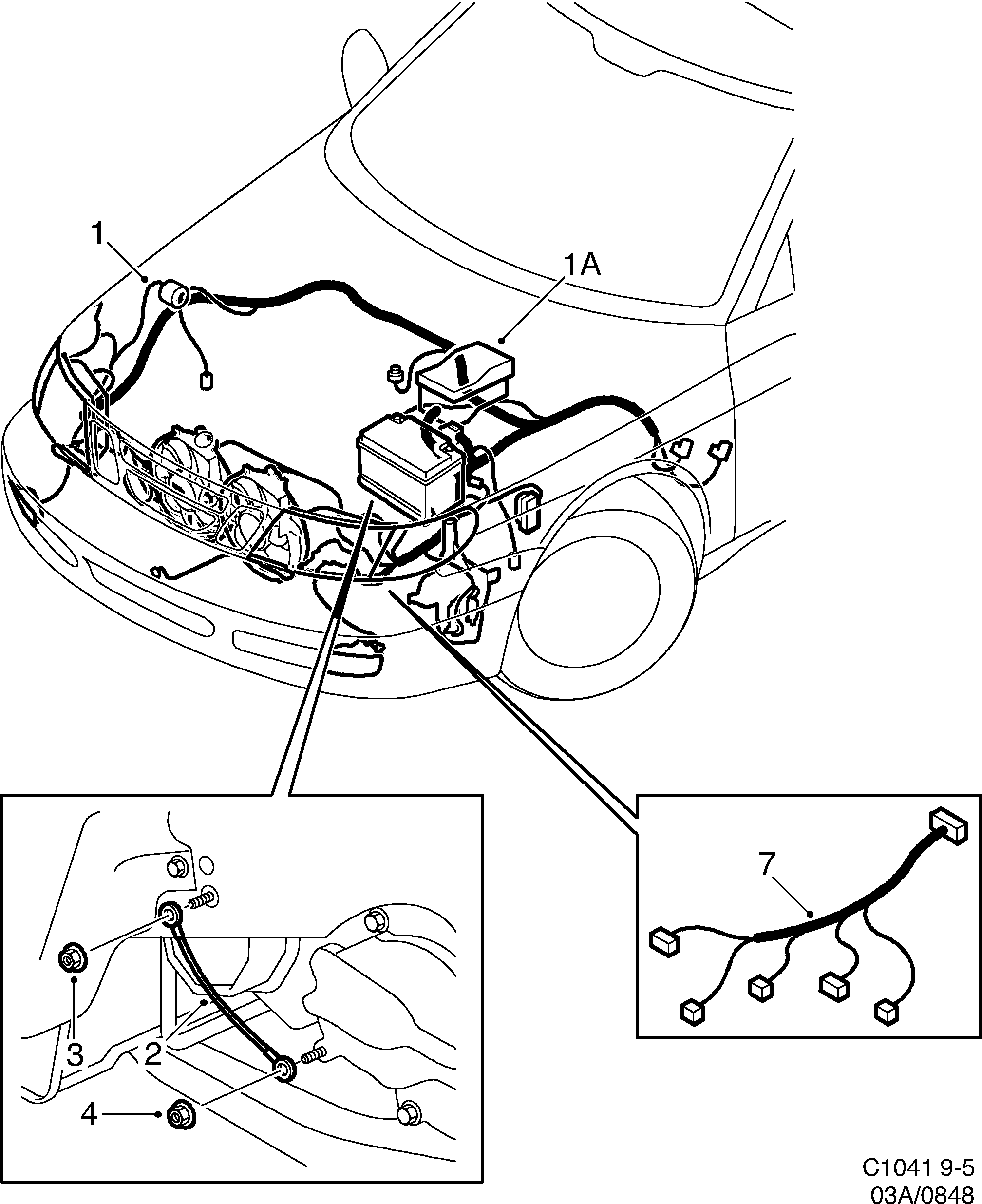

Saab 9-5 (9600) Front diagram
PosArticlePart No.
1Cable harness5240056
1Cable harness5242839
1Cable harness5240064
1Cable harness5242847
1Cable harness5242797
1Cable harness5242854
1Cable harness5242805
1Cable harness5242862
2Ground cable5476486 (replaces 4812541)
3Hexagon nut11900452 (replaces 7977952)
4Nut11900451 (replaces 7977929)
7Cable harness5100425
