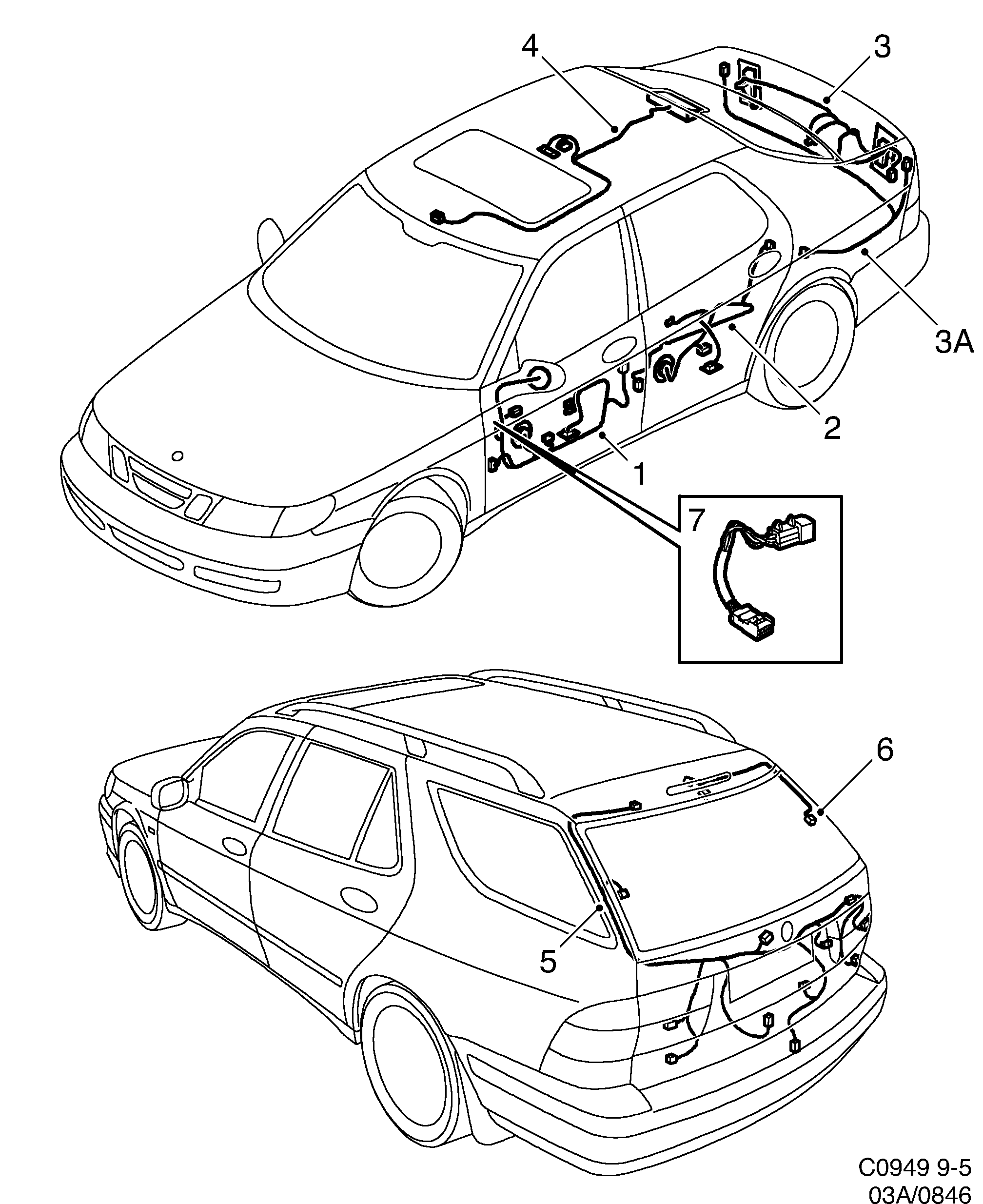

Group 3a Electrical, general, section 846
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cable harness | 4943593 |
| 1 | Cable harness | 5359500 (replaces 5246640) |
| 1 | Cable harness | 5470869 (replaces 4943601) |
| 1 | Cable harness | 5359526 (replaces 4943627) |
| 1 | Cable harness | 4943619 |
| 1 | Cable harness | 5359534 (replaces 5246665) |
| 2 | Cable harness | 5102157 |
| 3 | Cable harness | 4945762 |
| 3A | Cable harness kit | 4614715 (replaces 4614707) |
| Seal | 4061966 | |
| Seal | 12798372 (replaces 4061974) | |
| Cable terminal | 12790414 (replaces 4115499) | |
| Seal | 12798375 (replaces 4354239) | |
| Connector housing | 12797694 (replaces 4811212) | |
| Cable harness | 5240346 (replaces 5103833) | |
| Tie strap | 7971864 | |
| Cable terminal | 30520557 (replaces 9120791) | |
| Cable terminal | 12789796 (replaces 9120957) | |
| 3A | Cable harness kit | 4614723 (replaces 4614699) |
| Cable harness | 5240353 (replaces 5103841) | |
| 4 | Cable harness | 12766247 (replaces 4927711) |
| 4 | Cable harness | 4945283 |
| 5 | Cable harness | 4945218 |
| 6 | Cable harness | 5476510 (replaces 4945226) |
| 7 | Cable harness | 5248141 |
