Saab 9-5 (9600) 2000-2000 Front

Group 3a Electrical, general, section 834

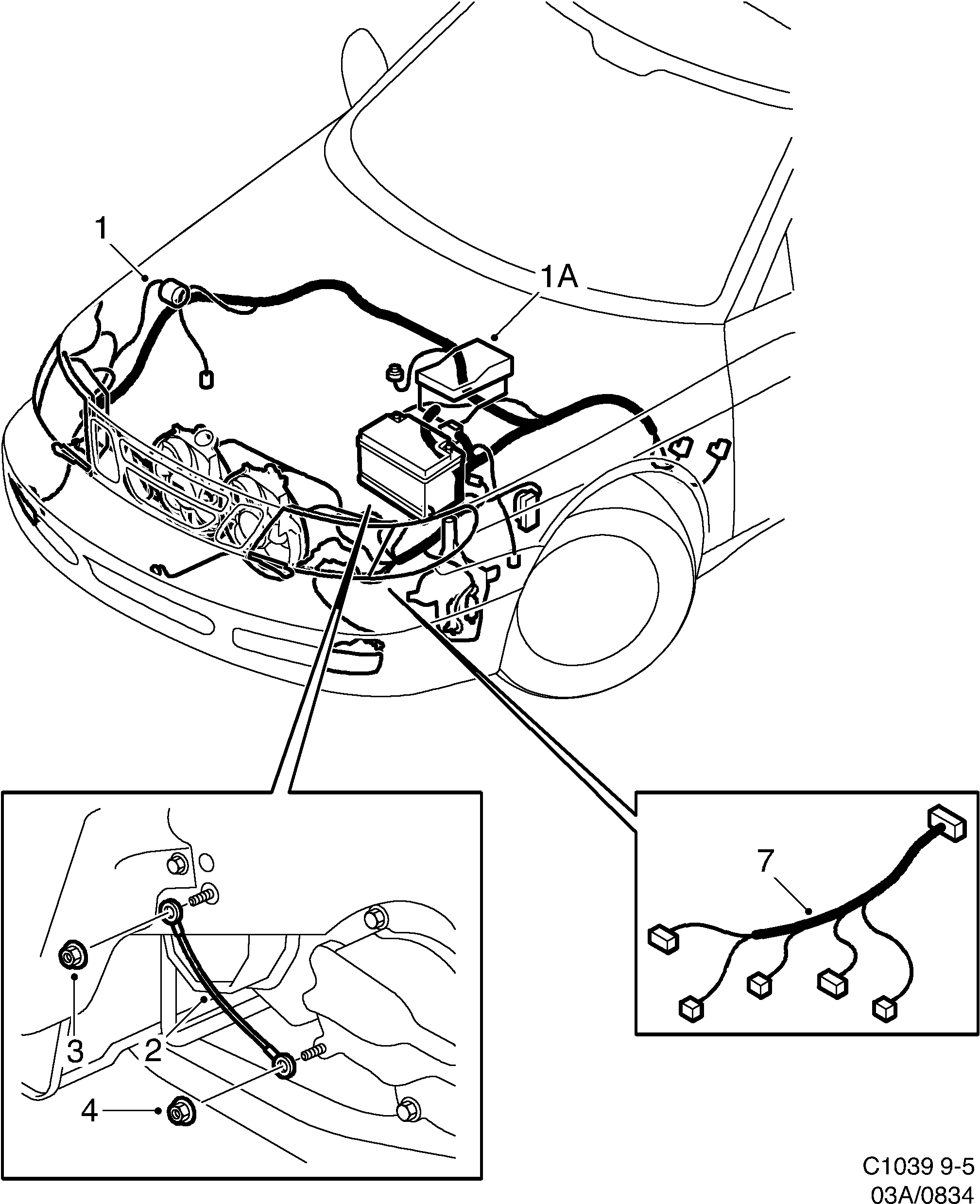

Saab 9-5 (9600) Front diagram
PosArticlePart No.
1Cable harness5102355
1Cable harness5242284
1Cable harness5102363
1Cable harness5242292
1Cable harness5102371
1Cable harness5242300
1Cable harness5102397
1Cable harness5242326
1Cable harness5102389
1Cable harness5242318
1Cable harness5102405
1Cable harness5242334
2Ground cable5476486 (replaces 4812541)
3Hexagon nut11900452 (replaces 7977952)
4Nut11900451 (replaces 7977929)
7Cable harness5100425
7Cable harness5100433
