Saab 9-5 (9600) 1999-1999 Doors, roof and rear hatch

Group 3a Electrical, general, section 832

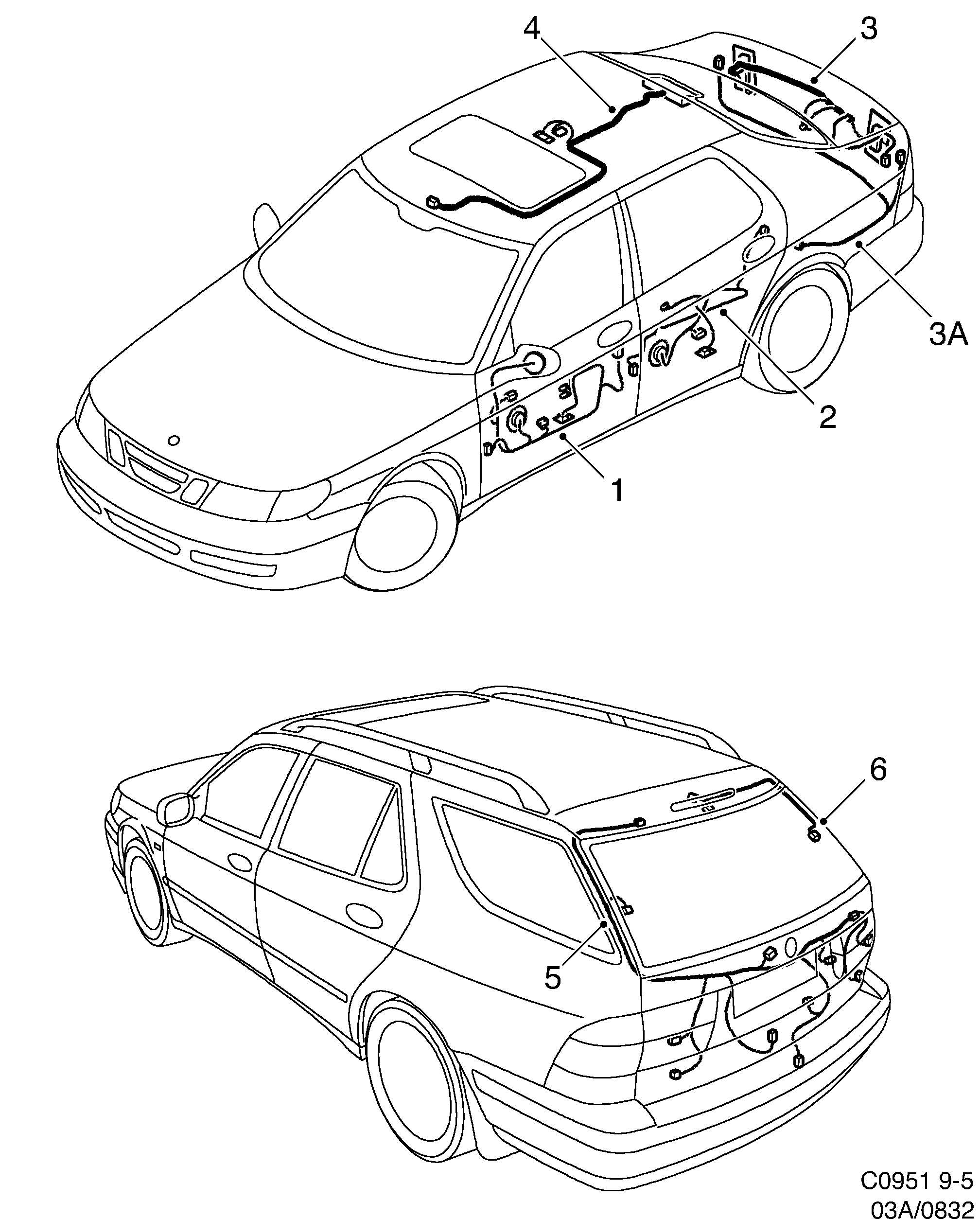

Saab 9-5 (9600) Doors, roof and rear hatch diagram

Pos	Article	Part No.
1	Cable harness	4943593
1	Cable harness	5470869 (replaces 4943601)
1	Cable harness	5359526 (replaces 4943627)
1	Cable harness	4943619
2	Cable harness	5102157 (replaces 4806287)
3	Cable harness	4945762
3A	Cable harness kit	4614673
	Seal	4061966
	Seal	12798372 (replaces 4061974)
	Cable terminal	12790414 (replaces 4115499)
	Seal	12798375 (replaces 4354239)
	Connector housing	12797694 (replaces 4811212)
	Cable harness	4948485
	Tie strap	7971864
	Cable terminal	30520557 (replaces 9120791)
	Cable terminal	12789796 (replaces 9120957)
3A	Cable harness kit	4614665
	Cable harness	4948006
3A	Cable harness kit	4614681
	Cable harness	4948477
4	Cable harness	12766247 (replaces 4927711)
4	Cable harness	4945283
5	Cable harness	4945218
6	Cable harness	5476510 (replaces 4945226)
