Saab 9-5 (9600) 2005-2010 Navigation system XM System

Group 3a Electrical, general, section 649

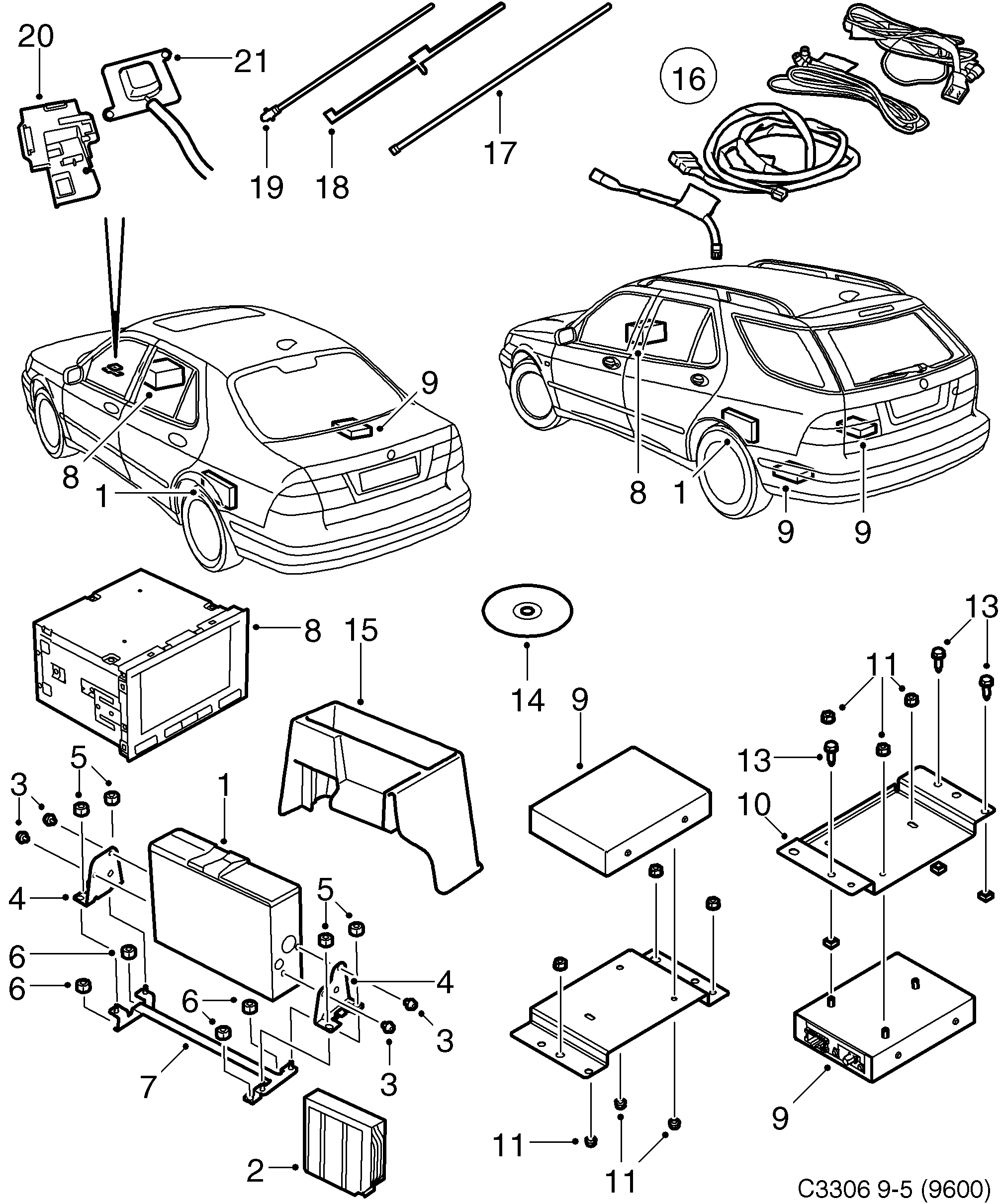

Saab 9-5 (9600) Navigation system XM System diagram

Pos	Article	Part No.
1	CD changer	400126470 (replaces 5042585)
2	CD magazine	400110235 (replaces 4711255)
3	Screw	92151805
4	Bracket	4711297
5	Nut	11900451 (replaces 92150133)
7	Bracket	5100367
8	Screen	5374517
8	Radio	12778057
	Mounting frame	5374566
9	Receiver	15950801 (replaces 25762114)
9	Receiver	15833392
9	Receiver	15950801 (replaces 25912359)
9	Radio	15950801
10	Bracket	12759009
11	Nut	32026207 (replaces 11900450)
11	Nut	90287467
11	Nut	92152037
13	Screw	92151943
14	DVD map disc	93199782 (replaces 32025680)
14	DVD map disc	12841605 (replaces 5376314)
14	DVD map disc	12841605 (replaces 12767415)
14	DVD map disc	12841605 (replaces 12771885)
14	DVD map disc	12841605 (replaces 12779152)
14	DVD map disc	12841605
14	DVD map disc	12767414 (replaces 5376322)
14	DVD map disc	12767414
14	DVD map disc	12841606 (replaces 12771886)
14	DVD map disc	12779153
14	DVD map disc	12841606
15	Cover	5128038
16	Cable harness	30592222 (replaces 5542030)
16	Cable harness	12755261
17	Tie strap	11900513 (replaces 92150191)
18	Tie strap	8552663
19	Tie strap	4807939
20	Bracket	5375159
21	Antenna	10354745
