Saab 9-5 (9600) 2003-2004 Navigation system

Group 3a Electrical, general, section 648

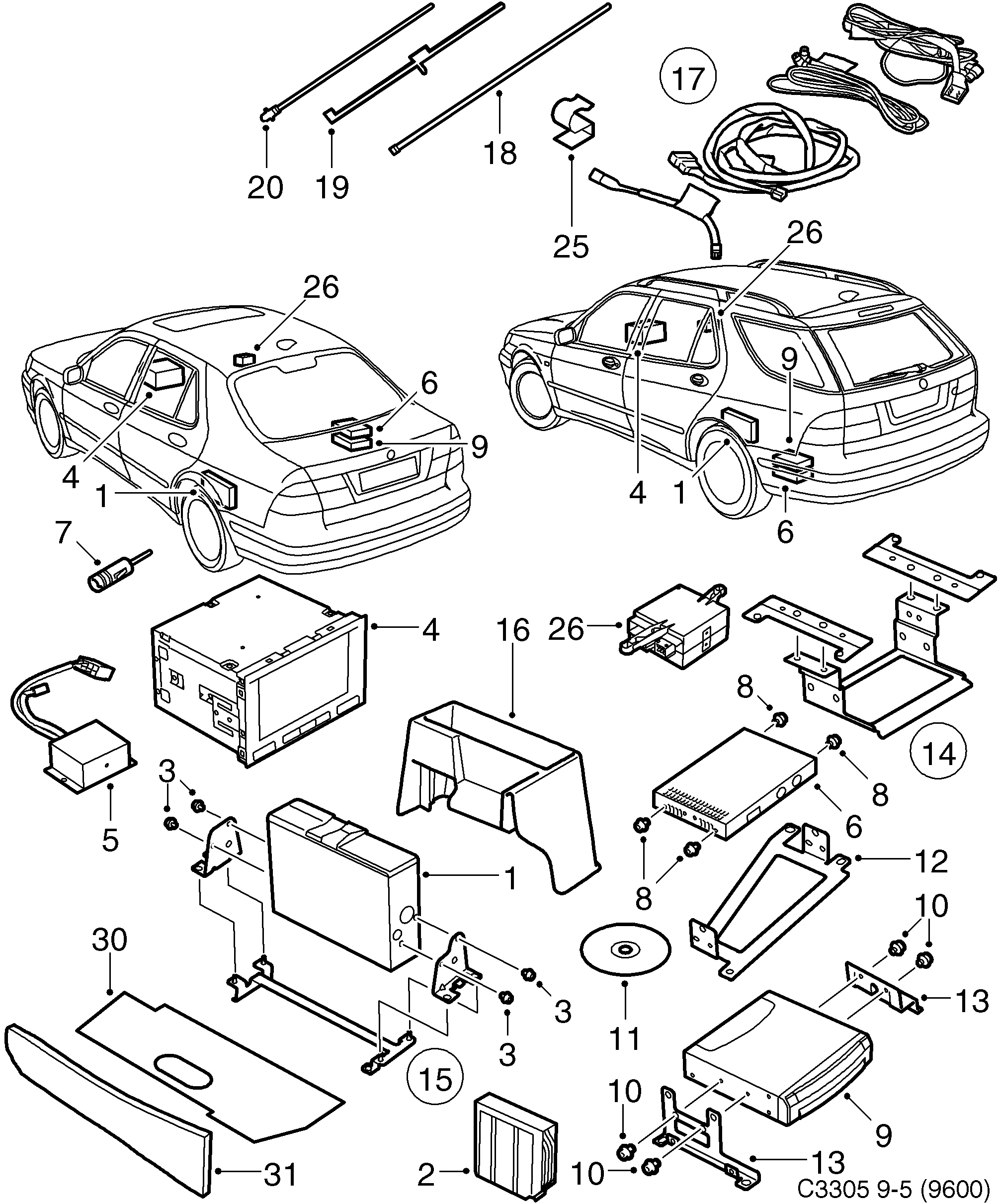

Saab 9-5 (9600) Navigation system diagram

Pos	Article	Part No.
1	CD changer	5521315
2	Cassette	5522107
3	Screw	5522024 (replaces 5522016)
4	Screen	5523980 (replaces 5521372)
4	Screen	5523980
5	Converter	5521356
6	Radio	5523998 (replaces 5521331)
6	Radio	5523998
7	Adapter	5521364
8	Screw	5522024
9	DVD player	5521323
10	Screw	5522032
11	DVD map disc	93199782 (replaces 5521463)
12	Bracket	5521554
13	Bracket	5521562
14	Bracket	5521570
15	Bracket	5521588
16	Cover	5128038
17	Cable harness	30592222 (replaces 5542030)
17	Cable harness	12755261
18	Tie strap	11900513 (replaces 92150191)
19	Tie strap	8552663
20	Tie strap	4807939
	Tape	5242904
25	Clamp	7108491
26	Electronic unit	5522479
30	Carpet	5521547
31	Sound absorber	5521539
