Saab 9-5 (9600) 2001-2004 ONSTAR

Group 3a Electrical, general, section 646

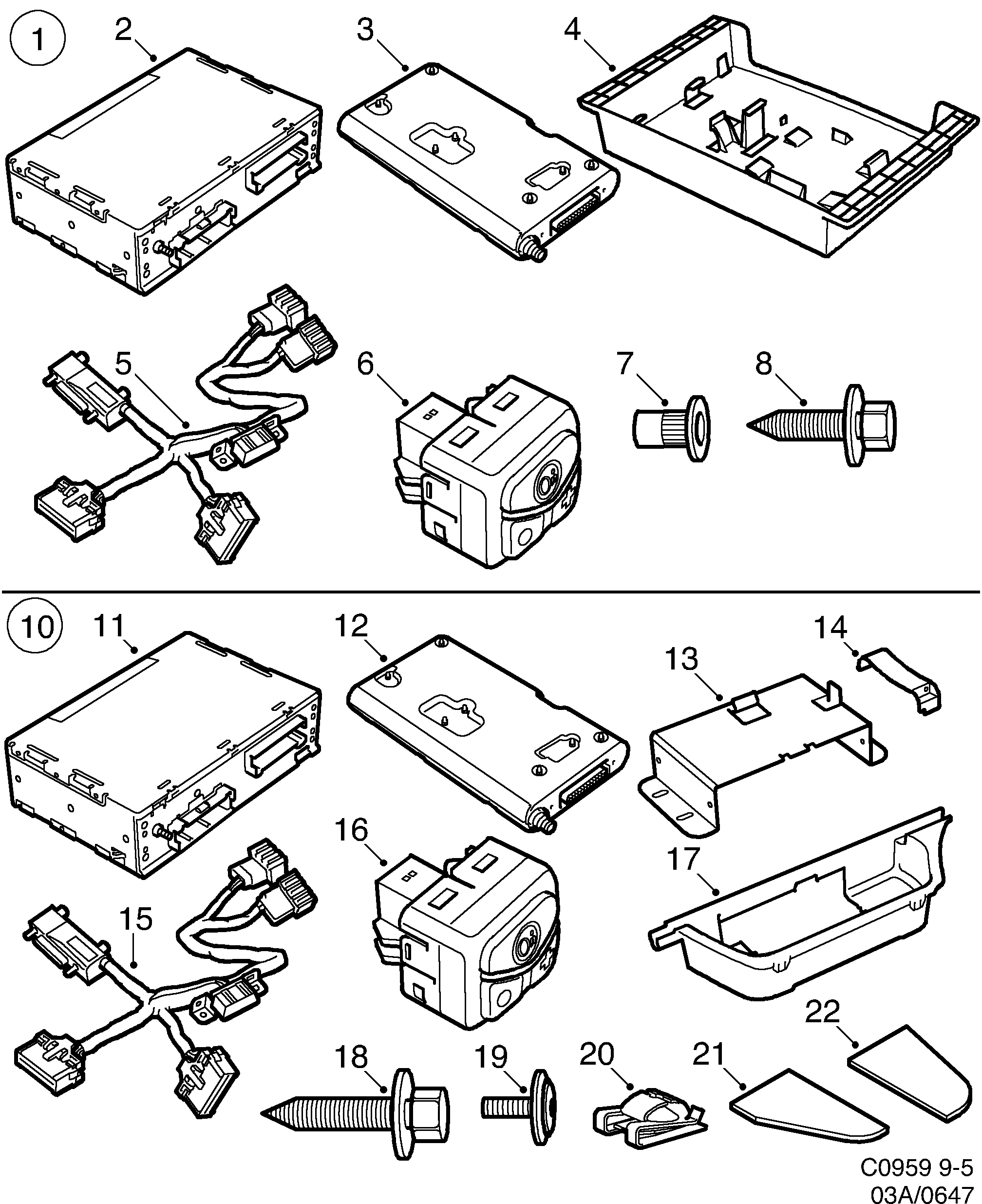

Saab 9-5 (9600) ONSTAR diagram

Pos	Article	Part No.
1	Mounting kit	5262324
1	Mounting kit	5543822
2	Electronic unit	5370556
2	Electronic unit	5372115
3	Electronic unit	5370564
3	Electronic unit	5371208
4	Bracket	5371034
5	Cable harness	5370176
6	Button	5370150
6	Button	5371190
6	Button	5542378
7	Nut	5264130
8	Screw	5370044
	Assembly instruction	5370200
	Instructions	5261219
10	Mounting kit	5262332
10	Mounting kit	5543830
13	Bracket	5260328
14	Clip	5043682
17	Carrier	5371091
18	Screw	5264122
19	Screw	5264155
20	Clip	5264163
21	Insulating sleeve	5264171
22	Insulating sleeve	5264189
