Saab 9-5 (9600) 2000-2000 ONSTAR

Group 3a Electrical, general, section 645

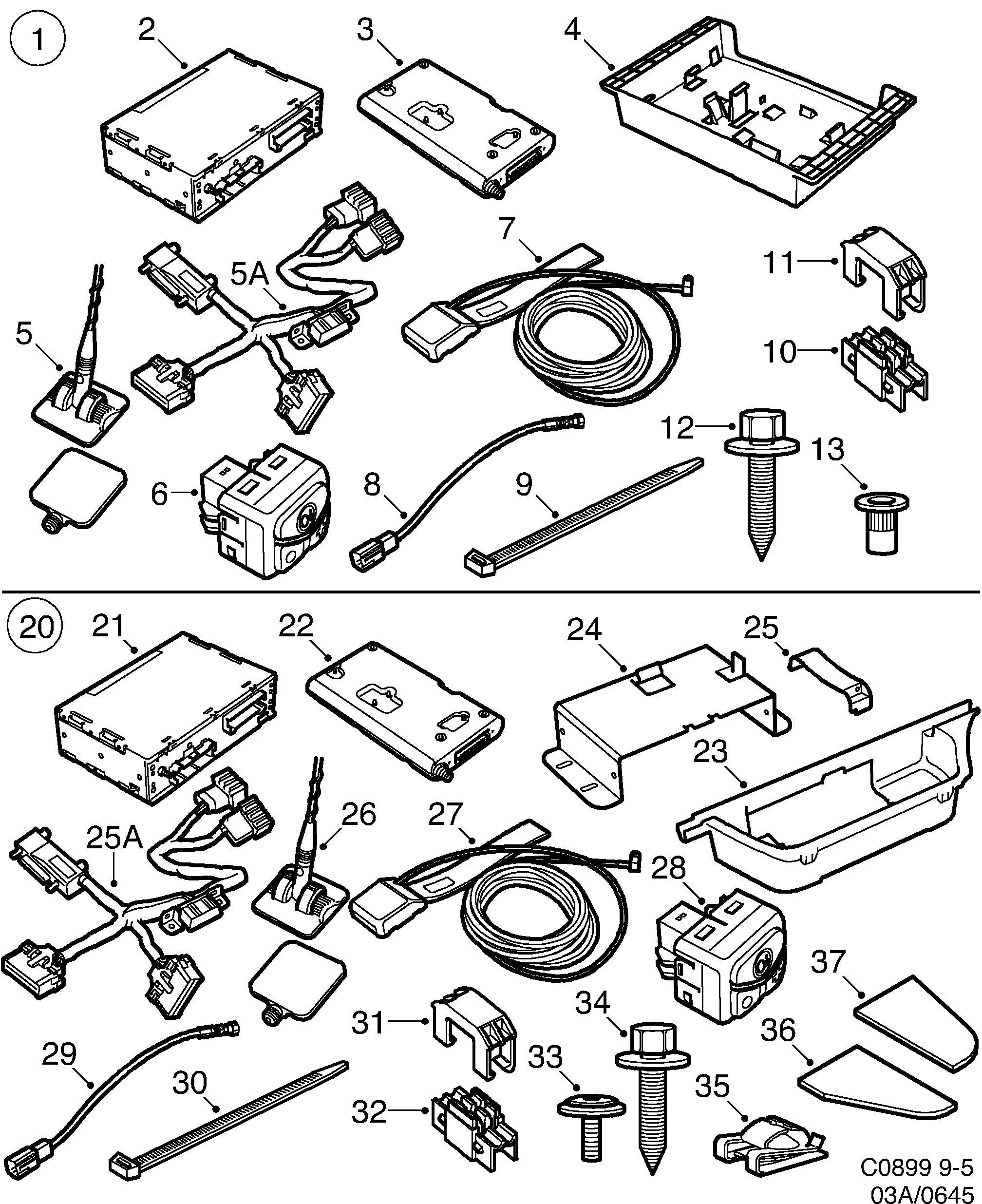

Saab 9-5 (9600) ONSTAR diagram

Pos	Article	Part No.
1	Mounting kit	5044953
2	Electronic unit	5370556 (replaces 5043443)
3	Electronic unit	5043450
4	Bracket	5043468
5	Electronic unit	5370036
5A	Cable harness	5043666
6	Button	5044730
7	Electronic unit	5264718
8	Antenna cable	5043500
9	Tie strap	5264072
10	Splice	5264080
11	Splice	5264098
12	Screw	5370044
13	Nut	5264130
	Drill template	5264148
	Assembly instruction	5260625
	Users manual	5261201
	Instructions	5261219
20	Mounting kit	5044961
23	Carrier	5043476
24	Bracket	5260328
25	Clip	5043682
33	Screw	5264122
34	Screw	5264155
35	Clip	5264163
36	Insulating sleeve	5264171
37	Insulating sleeve	5264189
	Assembly instruction	5260633
