Saab 9-5 (9600) 1998-2010 Loudspeaker

Group 3a Electrical, general, section 585

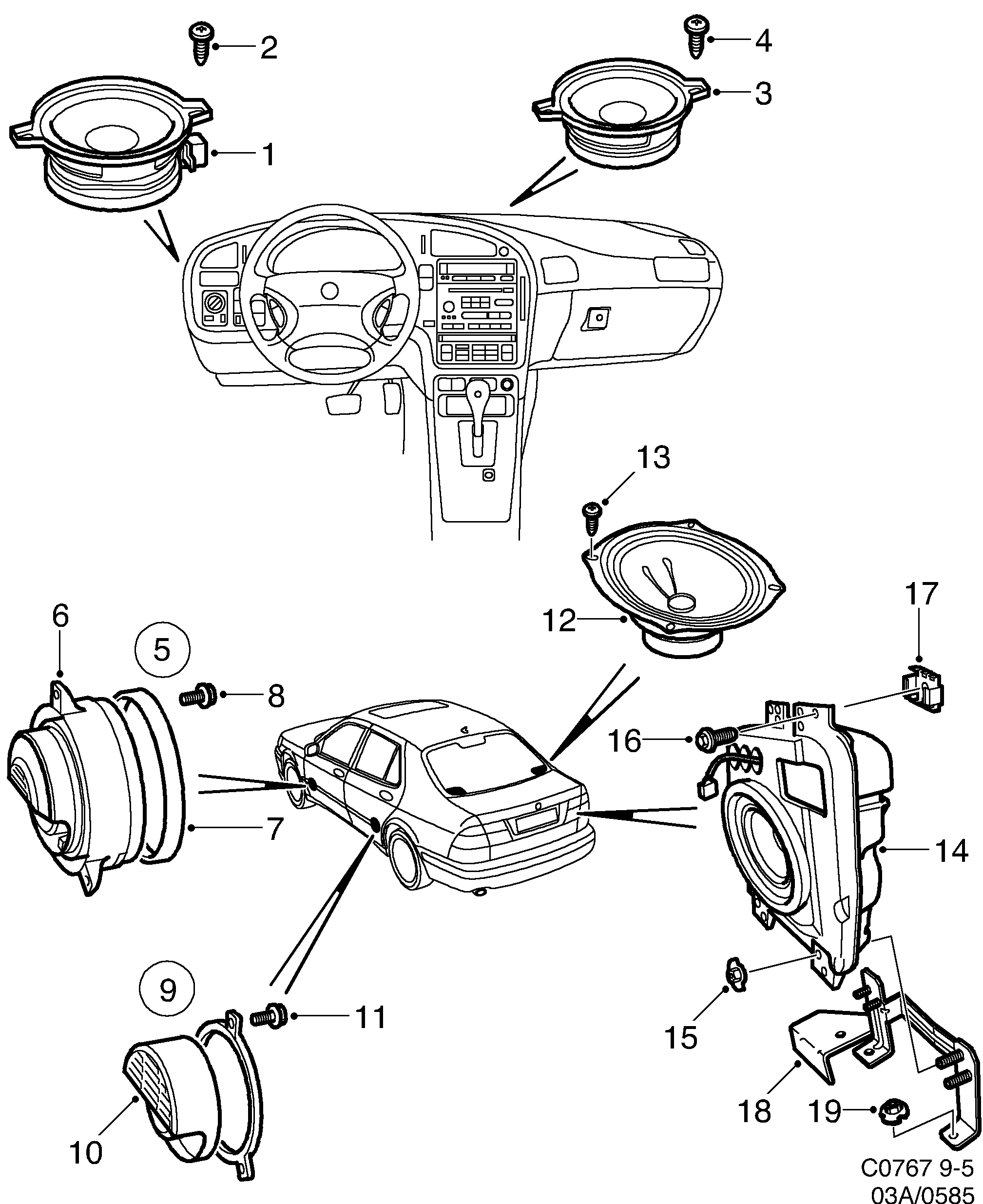

Saab 9-5 (9600) Loudspeaker diagram

Pos	Article	Part No.
1	Loudspeaker	4616850
1	Loudspeaker	4616967
2	Screw	92151596
3	Loudspeaker	4617049
3	Loudspeaker	4619086
5	Loudspeaker	4616926
5	Loudspeaker	4616983
6	Mounting frame	4714861
6	Mounting frame	4714853
7	Seal	4714846
7	Seal	4714879
8	Screw	11900355 (replaces 7978117)
9	Loudspeaker	4616884
9	Loudspeaker	4616934
9	Loudspeaker	4617007
10	Mounting frame	4714903
10	Mounting frame	4714911
11	Screw	11900355
12	Loudspeaker	4617023
13	Screw	7970304
13	Screw	92153219 (replaces 7922354)
14	Loudspeaker	5375837 (replaces 4711594)
14	Loudspeaker	5375837
15	Nut	12802365 (replaces 4087664)
16	Hexagon screw	12779244 (replaces 92151894)
16	Hexagon screw	12779244
17	Clip	7399181
17	Nut	11900467
18	Bracket	4947263
