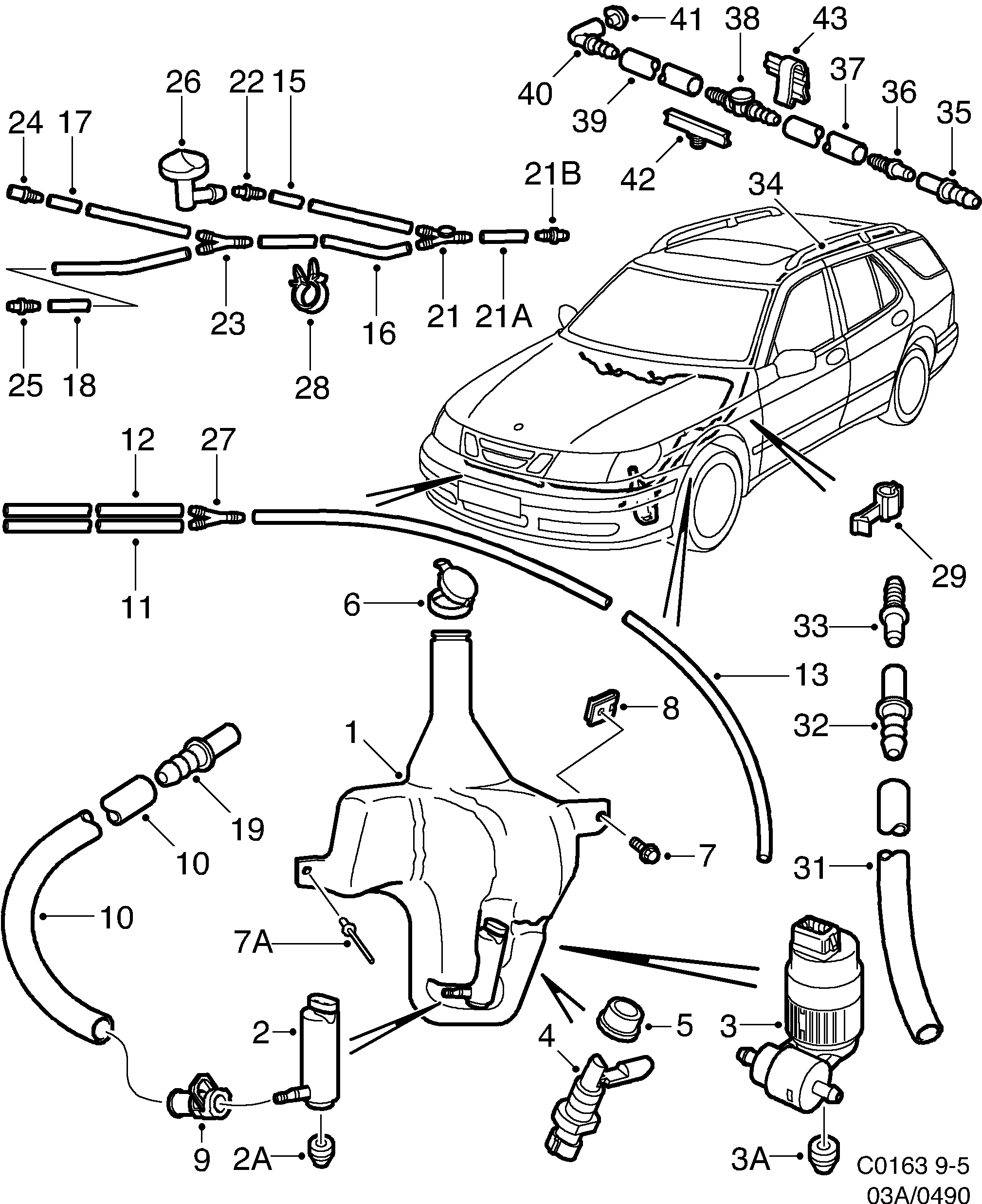

Group 3a Electrical, general, section 490
| Pos | Article | Part No. |
|---|---|---|
| 1 | Washer fluid reservoir | 4785275 |
| 1 | Washer fluid reservoir | 4563300 |
| 2 | Washer pump | 90508709 (replaces 4832911) |
| 2A | Bushing | 9186037 (replaces 4832929) |
| 3 | Washer pump | 90585761 (replaces 4832895) |
| 3 | Washer pump | 4832903 |
| 3A | Bushing | 5141767 |
| 4 | Level sender | 4916961 (replaces 4240792) |
| 4 | Level sender | 4916961 |
| 5 | Bushing | 4240800 |
| 6 | Cover | 12767700 (replaces 4563292) |
| 7 | Hexagon screw | 7978679 |
| 7A | Blind rivet | 4940813 |
| 8 | Clip | 7399181 |
| 9 | Snap-on coupling | 12787618 (replaces 4832986) |
| 10 | Hose | 12788576 (replaces 8549420) |
| 19 | Junction pipe | 12787619 (replaces 4832754) |
| 21 | Valve | 5336961 (replaces 5149992) |
| 21 | Valve | 5336961 (replaces 5142724) |
| 21B | Junction pipe | 12788577 (replaces 4832762) |
| 23 | Tube | 4832812 |
| 23 | Valve | 5336961 (replaces 4914628) |
| 26 | Nozzle | 4614541 (replaces 4563045) |
| 26 | Nozzle | 5584917 (replaces 4914610) |
| 27 | Valve | 5142708 (replaces 4913745) |
| 27 | Valve | 5142708 (replaces 5149943) |
| 27 | Valve | 5142708 |
| 28 | Clip | 8530917 |
| 29 | Clip | 4564829 |
| 31 | Hose | 8549941 |
| 34 | Hose | 12788576 (replaces 8549933) |
| 38 | Valve | 5336979 (replaces 4171112) |
| 38 | Valve | 5336979 (replaces 5142732) |
| 40 | Junction pipe | 4915153 |
| 42 | Clip | 4677522 |
| 43 | Clip | 4813796 |
