Saab 9-5 (9600) 1998-2010 Windshield wiper

Group 3a Electrical, general, section 430

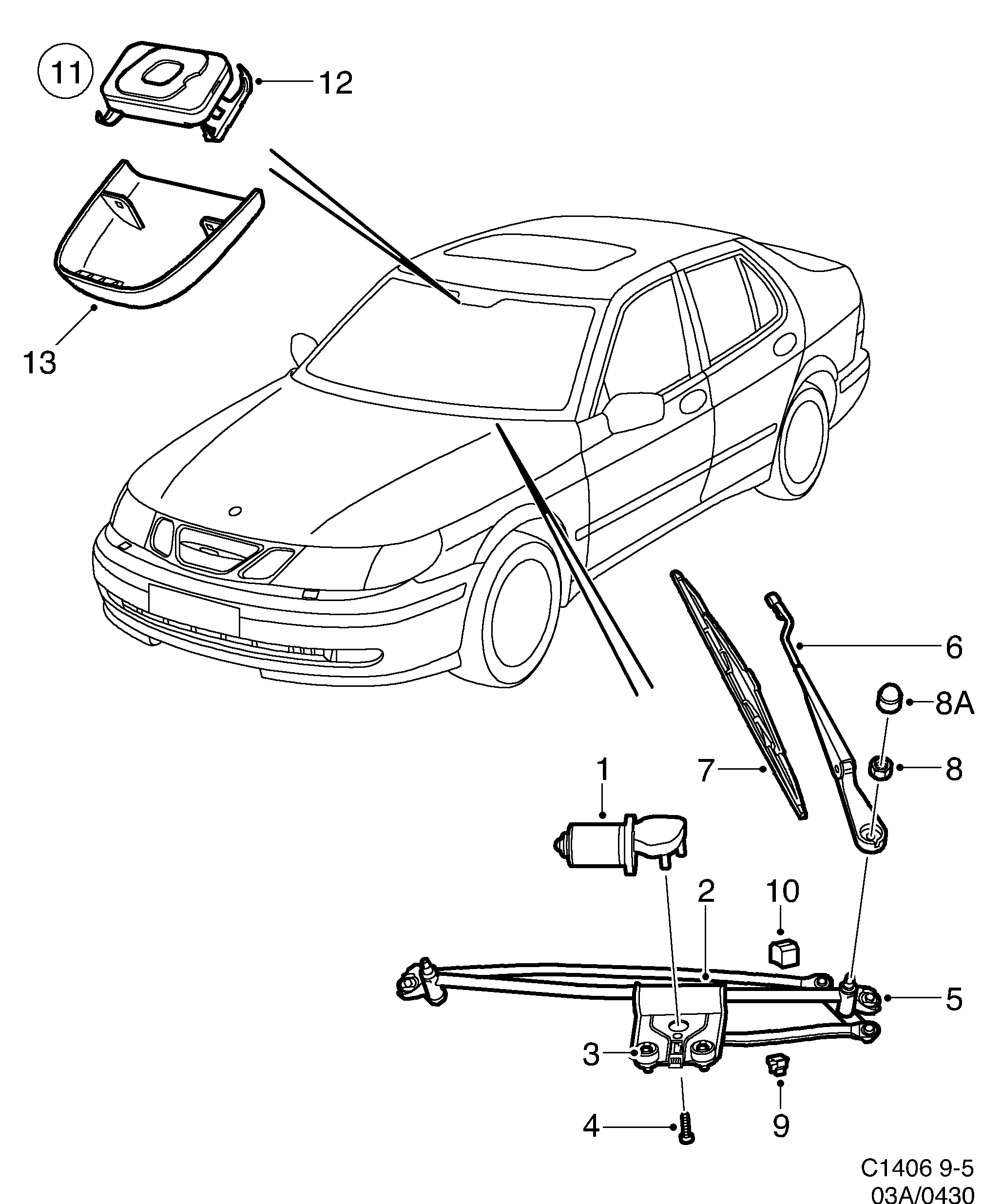

Saab 9-5 (9600) Windshield wiper diagram

Pos	Article	Part No.
1	Electrical motor	12779155 (replaces 4832333)
1	Wiper motor	12779155
1	Electrical motor	4832325
2	Spindle frame	4832317
2	Spindle frame	4832309
3	Hexagon screw	5149950 (replaces 4832341)
3	Hexagon screw	5149968 (replaces 4524260)
3	Hexagon screw	5149968
4	Hexagon screw	4785283
5	Hexagon screw	5149950
6	Wiper arm	4832358
6	Wiper arm	12781783
6	Wiper arm	4832374
6	Wiper arm	12781781
6	Wiper arm	4832382
6	Wiper arm	12781784
6	Wiper arm	4832366
6	Wiper arm	12781782
7	Wiper blade	93196006 (replaces 4832390)
7	Wiper blade	93196007 (replaces 4832416)
7	Wiper blade kit	12781786
7	Wiper blade	93196007 (replaces 4832424)
7	Wiper blade	93196006 (replaces 4832408)
7	Wiper blade kit	12781787
8	Nut	5125943 (replaces 4959540)
8	Nut	5125943
8A	Nut cap	5333927
9	Water drain	4914982
10	Spacer piece	5141411
11	Sensor	5584883 (replaces 5149869)
11	Sensor	5584883
12	Latch	12799937 (replaces 5400593)
13	Cover	12755356 (replaces 5288238)
13	Cover	12755356 (replaces 5492855)
13	Cover	12755356
