Saab 9-5 (9600) 2006-2010 Tail light

Group 3a Electrical, general, section 353

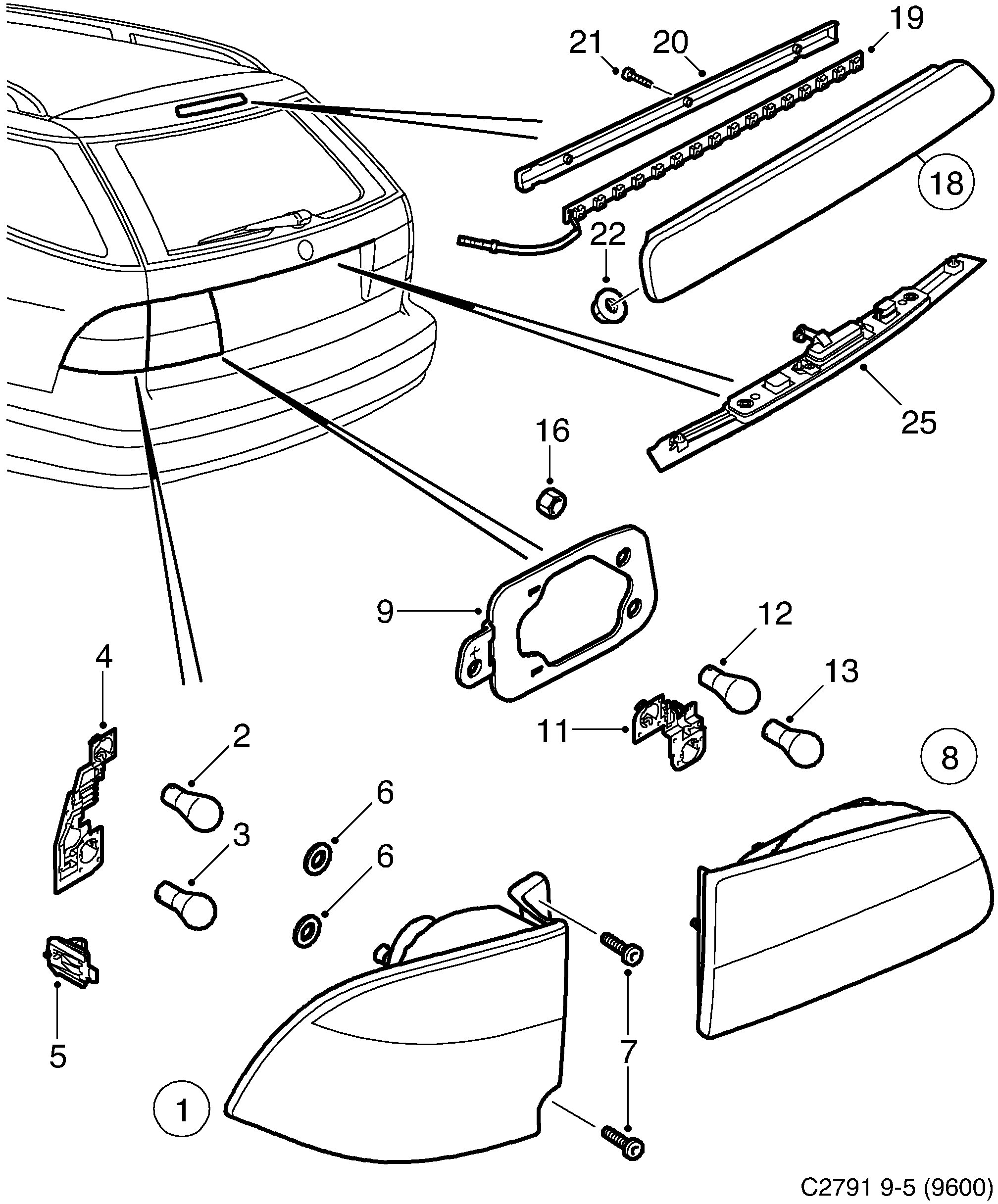

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	12755797
1	Tail light	12755798
2	Bulb	93190467 (replaces 4320594)
2	Bulb	93190467
3	Bulb	93169011 (replaces 7154719)
4	Lamp bracket	12778967 (replaces 12760313)
4	Bulb socket	12778967
4	Lamp bracket	12778966 (replaces 12760314)
4	Bulb socket	12778966
5	Clip	5404215
6	Seal	5402367
	Screw	11900498
	Seal	12779008
7	Screw	92151601 (replaces 92150065)
8	Lamp	12755793
8	Lamp	12755794
8	Lamp	12758914
8	Lamp	12758915
9	Seal	12760315
9	Seal	12768249
11	Lamp bracket	12760316
11	Lamp bracket	12760317
16	Nut	11900451 (replaces 92150133)
18	Stop light	5335864
19	Diode unit	5407572
21	Screw	12833867
22	Nut	11089471
