Saab 9-5 (9600) 2002-2005 Tail light

Group 3a Electrical, general, section 352

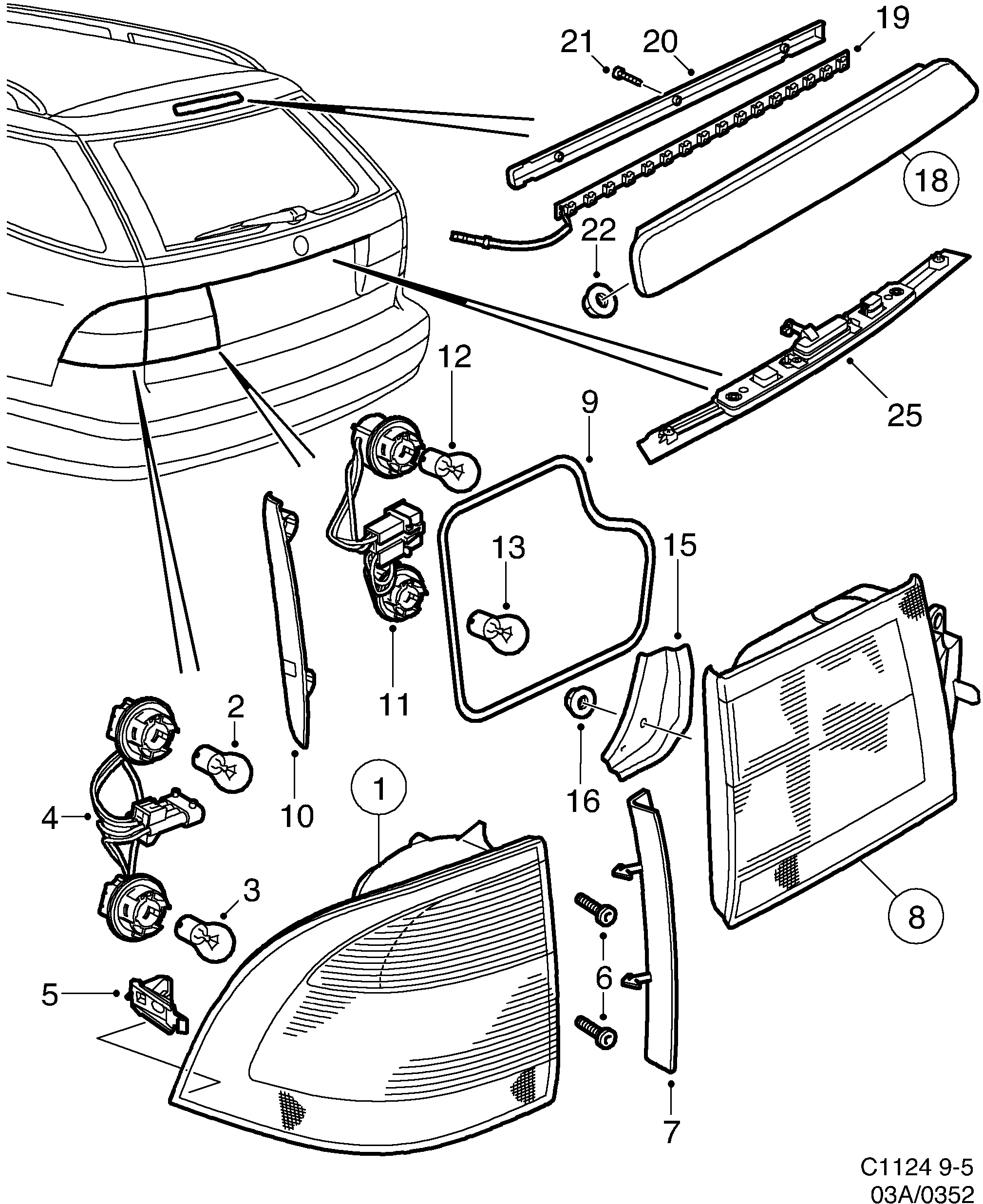

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	5142252
1	Tail light	5142260
2	Bulb	93190467 (replaces 4320594)
3	Bulb	93190465 (replaces 4468930)
4	Cable harness	5407663
5	Clip	5404215
6	Screw	92151601 (replaces 7978430)
7	Cover	5285457
7	Cover	5285465
8	Lamp	5404645
8	Lamp	5404652
9	Seal	5404231
10	Cover	5405295
10	Cover	5405303
11	Cable harness	5407622
11	Cable harness	5407630
12	Bulb	93169012 (replaces 9508904)
13	Bulb	93169011 (replaces 7154719)
15	Brace	4915674
15	Brace	4915682
16	Nut	11900451 (replaces 7977929)
18	Stop light	5335864 (replaces 5333430)
18	Stop light	5335864
19	Diode unit	5407572
21	Screw	12833867 (replaces 4915138)
22	Hexagon nut	11089471 (replaces 4345138)
