Saab 9-5 (9600) 1999-2001 Tail light

Group 3a Electrical, general, section 350

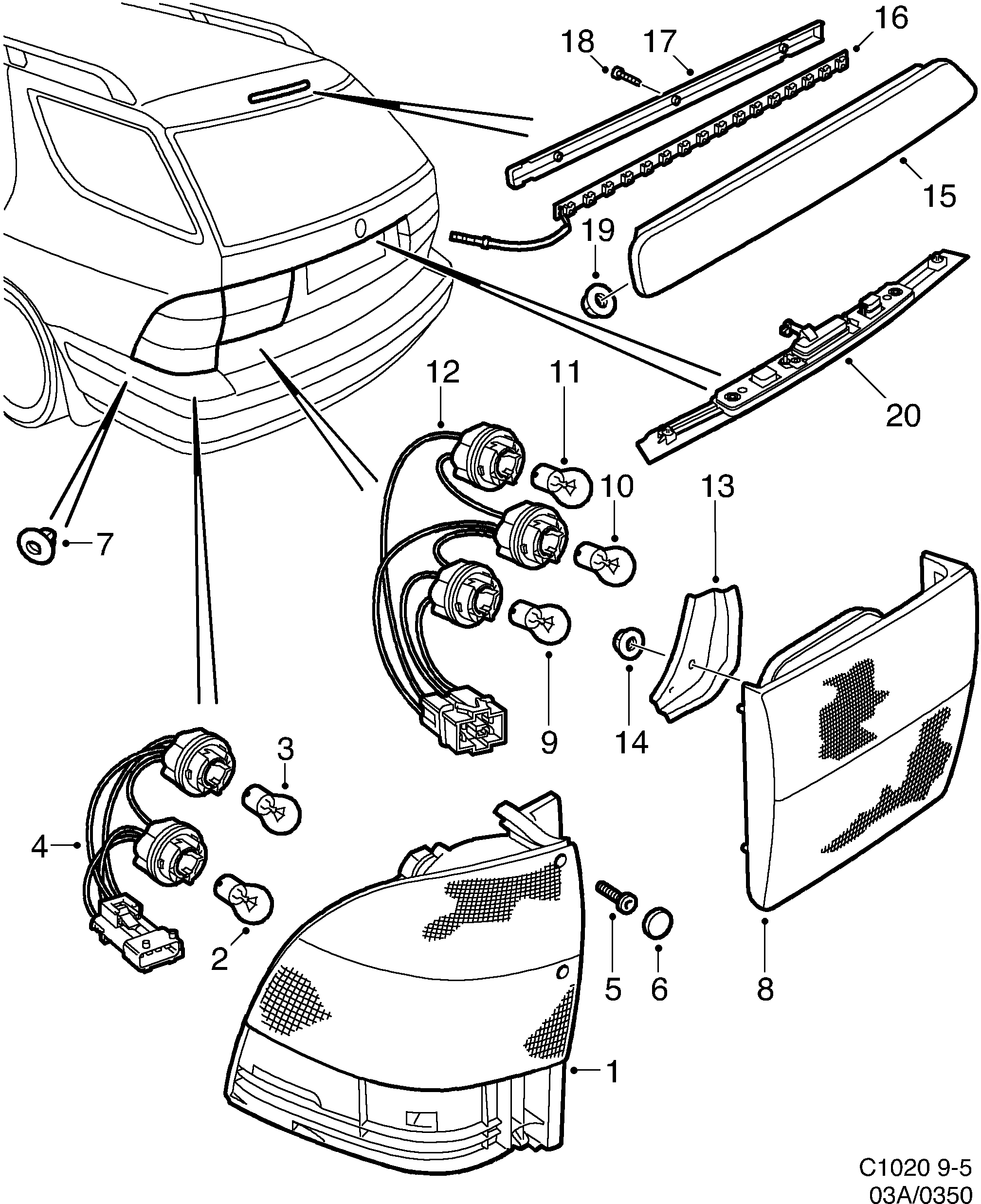

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	4914651
1	Tail light	4914669
2	Bulb	93190467 (replaces 4320594)
3	Bulb	93190465 (replaces 4468930)
4	Cable harness	4914701
5	Screw	92151601 (replaces 7978430)
6	Cover	4914586
7	Clip	4785184
8	Lamp	5142013
8	Lamp	5142021
8	Lamp	4914636
8	Lamp	4914644
9	Bulb	8535700
10	Bulb	93169011 (replaces 7154719)
12	Cable harness	4914784
12	Cable harness	4914776
13	Brace	4915674
13	Brace	4915682
14	Nut	11900428 (replaces 7971658)
15	Stop light	5335864 (replaces 4564514)
15	Stop light	5335864 (replaces 5333430)
16	Diode unit	5407572
18	Screw	12833867 (replaces 4915138)
19	Hexagon nut	11089471 (replaces 4345138)
