Saab 9-5 (9600) 2006-2010 Tail light

Group 3a Electrical, general, section 343

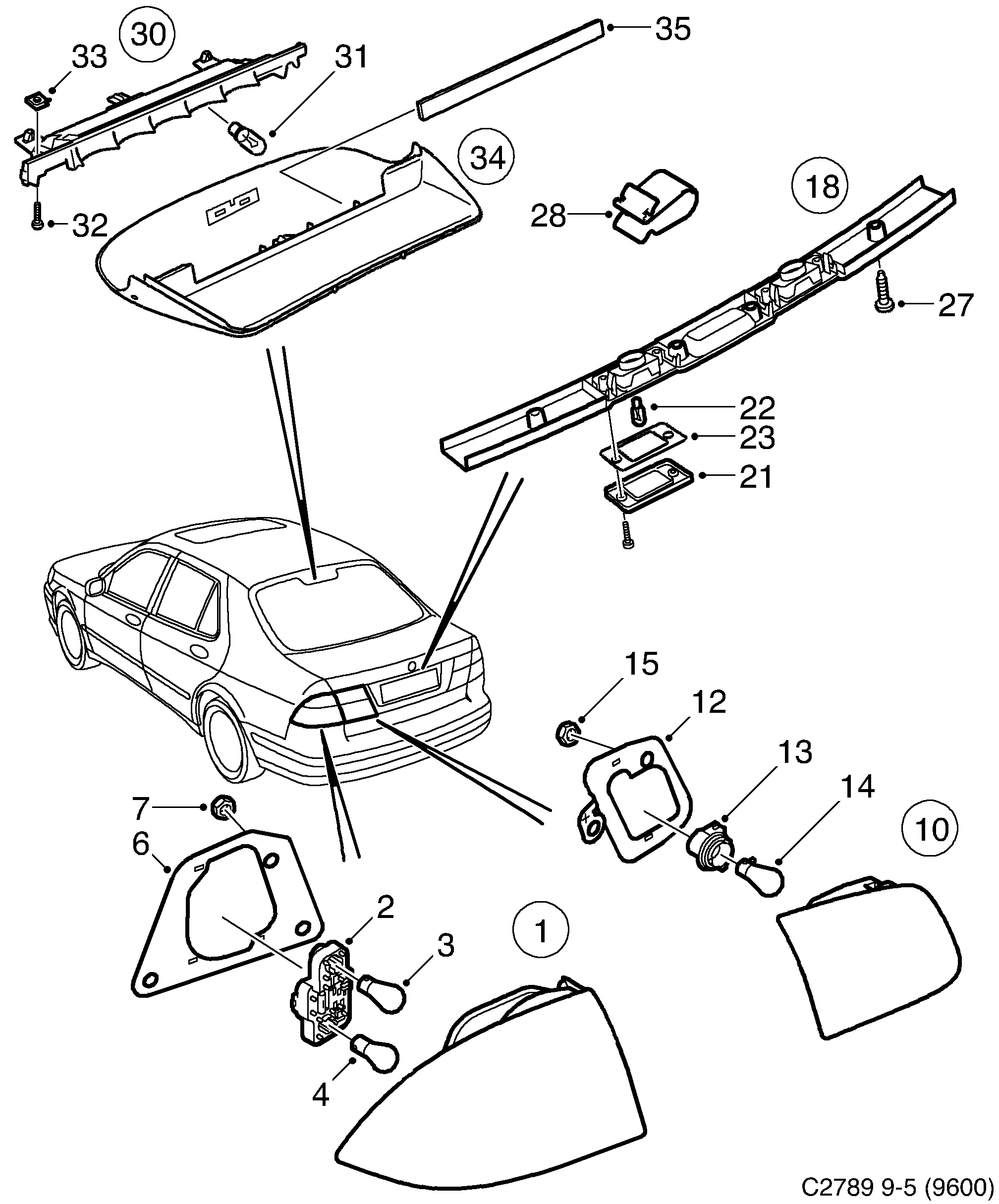

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	12777458 (replaces 12755795)
1	Tail light	12777458
1	Tail light	12777459 (replaces 12755796)
1	Tail light	12777459
2	Bulb socket	12760307
2	Bulb socket	12760308
3	Bulb	93169011 (replaces 7154719)
4	Bulb	93190467 (replaces 4320594)
4	Bulb	93190467
6	Seal	12760306
6	Seal	12768247
7	Nut	11900451 (replaces 92150133)
10	Lamp	12777457 (replaces 12755791)
10	Lamp	12777457
10	Lamp	12777455 (replaces 12755792)
10	Lamp	12777455
10	Lamp	12758912
10	Lamp	12758913
12	Seal	12760309
12	Seal	12768248
13	Bulb socket	12760310
18	Outside handle	12755802
18	Handle	12777460
21	Lamp lens	12765543
22	Bulb	93190473 (replaces 12795073)
23	Seal	12765213
27	Screw	92151601 (replaces 92150065)
27	Screw	92151601
28	Clip	92151442
30	Stop light	5337985
31	Bulb	93190471 (replaces 12795070)
31	Bulb	93190471
32	Screw	92153219 (replaces 7922354)
33	Nut	92150164
33	Hexagon nut	92151836
34	Cover	12777461 (replaces 4785234)
35	Lens	4152690
34	Cover	12777461
