Saab 9-5 (9600) 2002-2005 Tail light

Group 3a Electrical, general, section 342

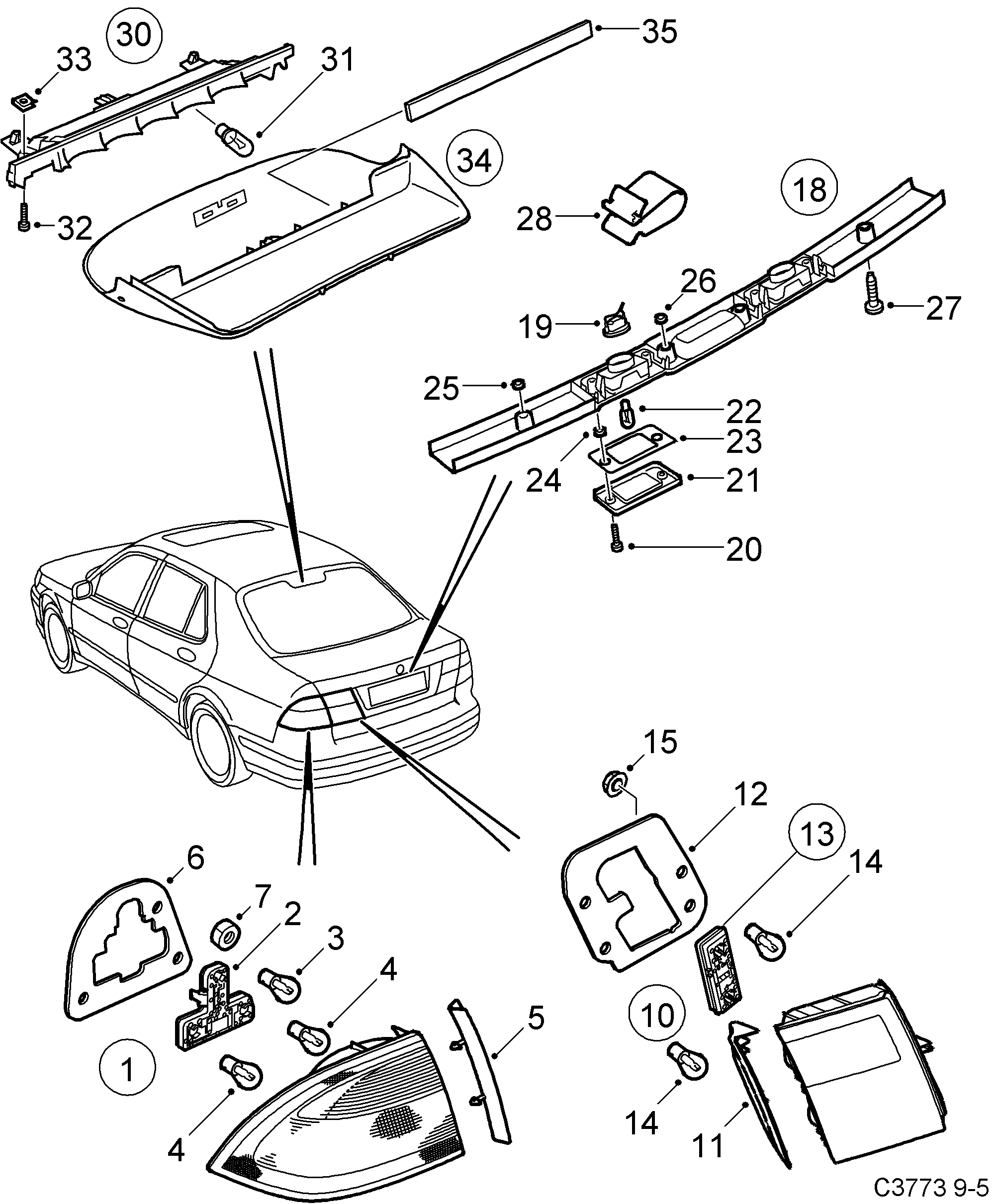

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	5142195
1	Tail light	5142203
2	Bulb socket	5404546
2	Bulb socket	5404553
3	Bulb	93190465 (replaces 4468930)
4	Bulb	93190467 (replaces 4320594)
5	Cover	5404264
5	Cover	5404272
6	Seal	5404538
7	Nut	11900451 (replaces 7977929)
10	Lamp	5404603
10	Lamp	5404611
12	Seal	5404488
12	Seal	5404504
11	Cover	5404199
11	Cover	5404207
13	Bulb socket	5407481
13	Bulb socket	5407465
13	Bulb socket	5407473
13	Bulb socket	5407499
14	Bulb	93169011 (replaces 7154719)
18	Handle	93167196
19	Bulb socket	4831236
20	Screw	7922214
21	Lens	5492947
22	Bulb	93190471 (replaces 9512880)
23	Seal	4831301
24	Seal	4831251
25	Seal	4832192
26	Seal	4831244
27	Screw	92151601 (replaces 7978430)
28	Clamp	7951783
30	Stop light	5337985 (replaces 4785226)
30	Stop light	5337985
32	Screw	92153219 (replaces 7922354)
33	Clip nut	92150164 (replaces 7972573)
34	Cover	12777461 (replaces 4785234)
35	Lens	4152690
