Saab 9-5 (9600) 1998-2001 Tail light

Group 3a Electrical, general, section 340

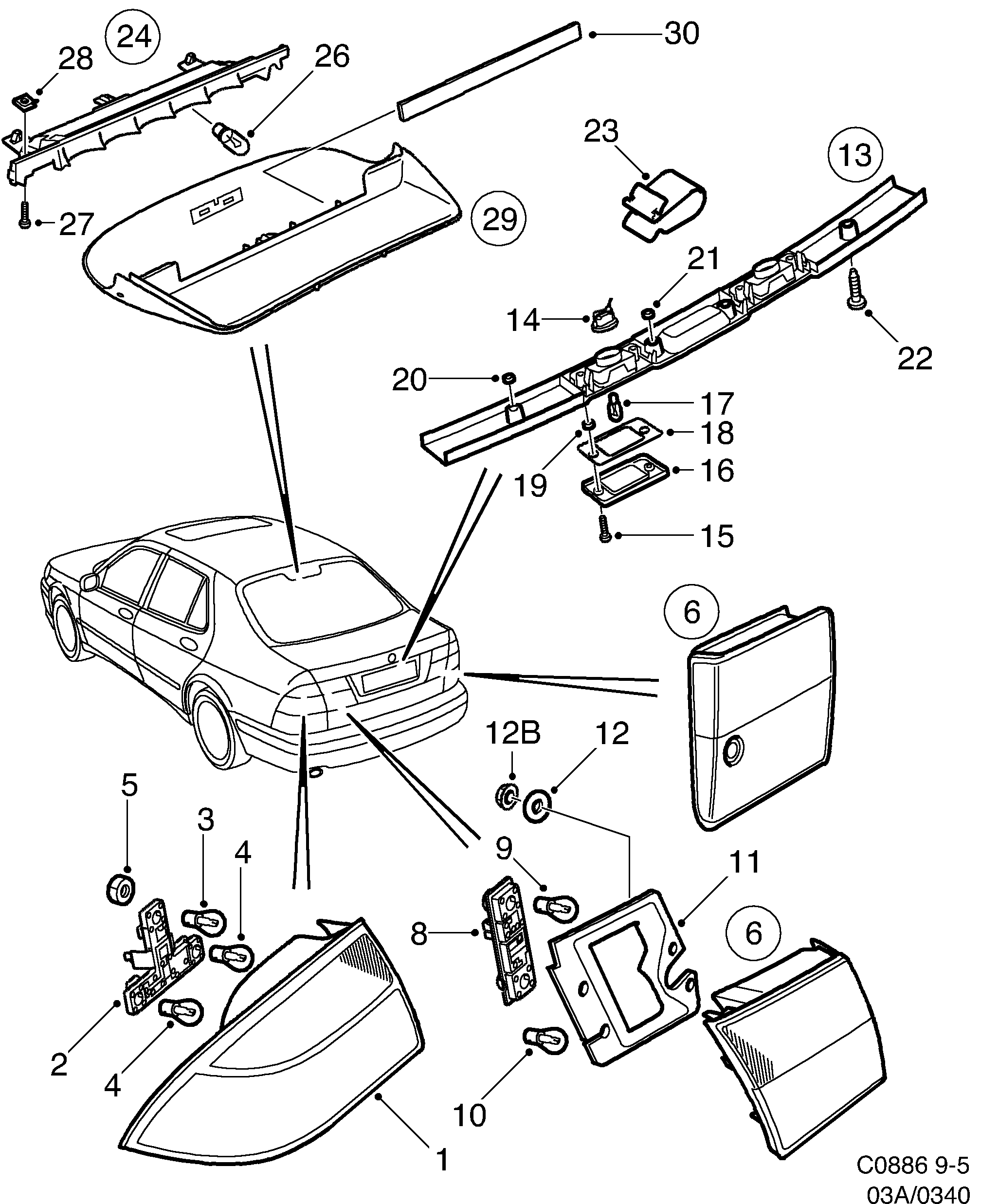

Saab 9-5 (9600) Tail light diagram

Pos	Article	Part No.
1	Tail light	4677019
1	Tail light	4677027
1	Tail light	4677035
1	Tail light	4677043
2	Bulb socket	4677050
2	Bulb socket	4677068
3	Bulb	93190465 (replaces 4468930)
4	Bulb	93190467 (replaces 4320594)
4	Bulb	8532756
5	Nut	11900451 (replaces 7977929)
6	Lamp	5149810 (replaces 4561536)
6	Lamp	5149810
6	Lamp	4561544
6	Lamp	5149836 (replaces 4561551)
6	Lamp	5149836
6	Lamp	4561569
8	Bulb socket	4677100
9	Bulb	93169011 (replaces 7154719)
11	Seal	4677159
11	Seal	4677167
12	Washer	4685343
12B	Nut	11900428 (replaces 7971658)
13	Handle	93167196 (replaces 4561577)
14	Bulb socket	4831236
15	Screw	7922214
16	Lens	5492947 (replaces 4832176)
17	Bulb	93190471 (replaces 9512880)
18	Seal	4831301
19	Seal	4831251
20	Seal	4832192
21	Seal	4831244
22	Screw	92151601 (replaces 7978430)
23	Clamp	7951783
24	Stop light	5337985 (replaces 4785226)
27	Screw	92153219 (replaces 7922354)
28	Clip nut	92150164 (replaces 7972573)
29	Cover	12777461 (replaces 4785234)
30	Lens	4152690
