Saab 9-5 (9600) 2002-2010 Center of gravity sensor Xenon

Group 3a Electrical, general, section 270

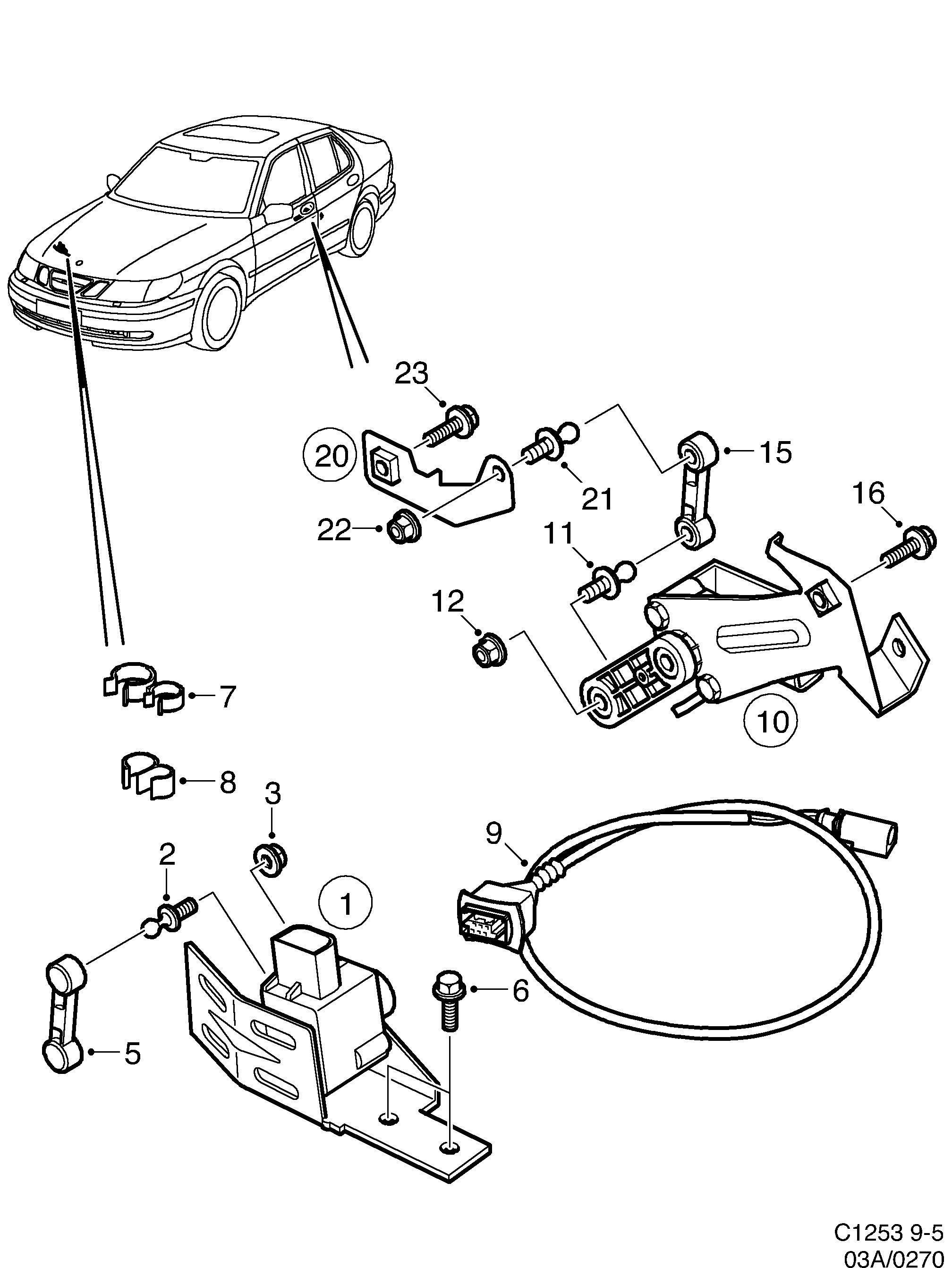

Saab 9-5 (9600) Center of gravity sensor Xenon diagram
PosArticlePart No.
1Center of gravity sensor12783353 (replaces 5409511)
2Pivot5287073
3Nut92153044 (replaces 7974298)
1Sensor12783353
5Link arm5287016
6Screw11900354 (replaces 7978109)
6Screw11900354
7Clip5125471
8Clamp12793419
9Extension cable5287024
10Center of gravity sensor12783354 (replaces 5409529)
10Sensor12783354
15Link arm5287057
20Bracket5287776
