Saab 9-5 (9600) 2006-2010 Headlamp Xenon

Group 3a Electrical, general, section 267

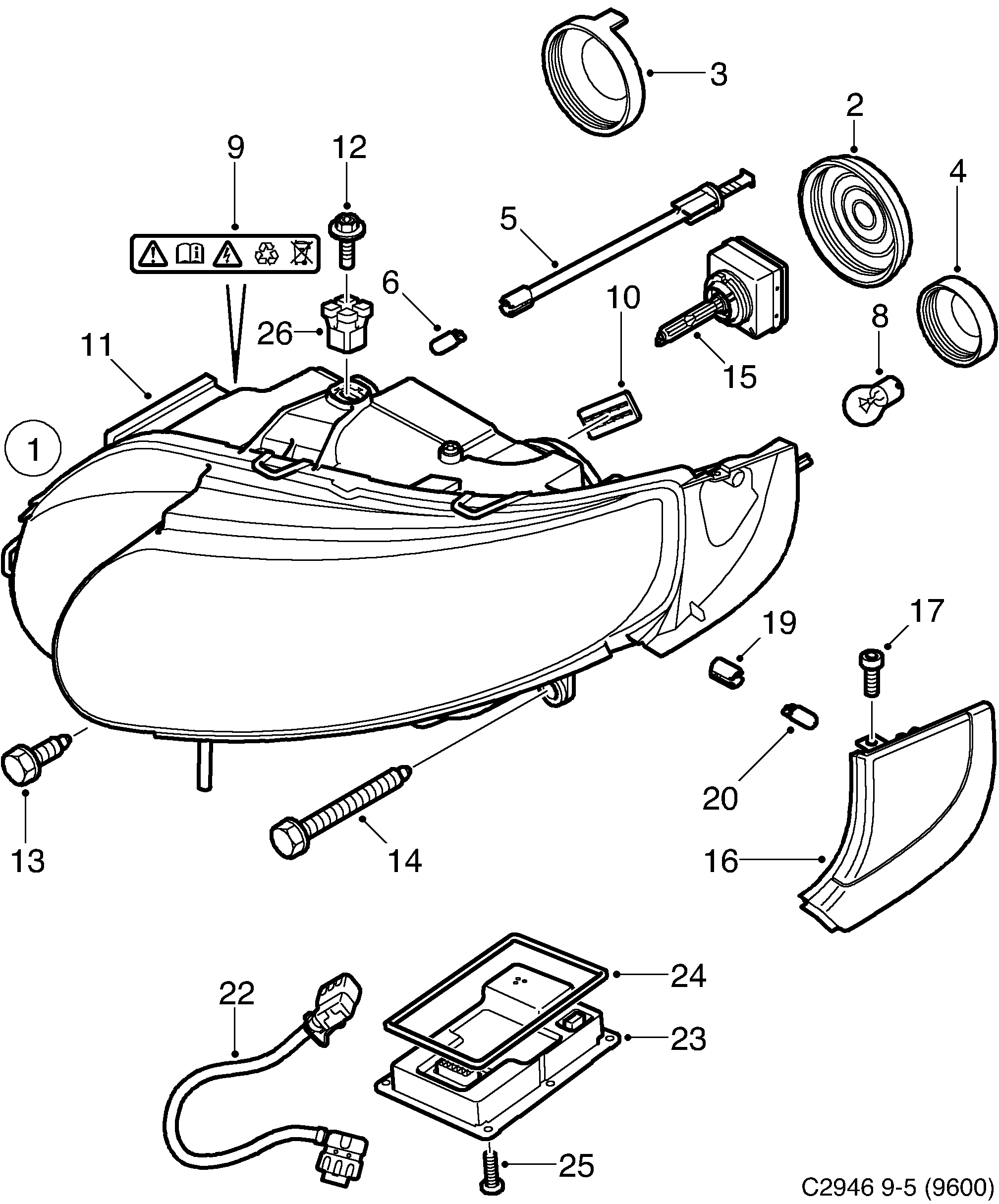

Saab 9-5 (9600) Headlamp Xenon diagram

Pos	Article	Part No.
1	Headlight, left	12762514
1	Headlight, right	12762515
2	Cover	12762482
3	Cover	12762483
4	Cover	12762484
5	Bulb socket	12762496
6	Bulb	93190471
8	Bulb	12762506
10	Seal	12788965
11	Headlamp housing	12762508
11	Headlamp housing	12762509
12	Screw	24413560
13	Screw	11900324
14	Screw	11900327
15	Bulb	5402433
16	Side marking lamp	12762590
16	Lamp	12843871
16	Side marking lamp	12762591
16	Lamp	12843872
17	Screw	12762595
19	Bulb socket	12762589
20	Bulb	93190471 (replaces 12795070)
22	Cable harness	12762501
23	Electronic unit	5408497
24	Seal	5402458
25	Screw	5408547
26	Nut	90506890
