Saab 9-5 (9600) 2006-2010 Headlamp

Group 3a Electrical, general, section 266

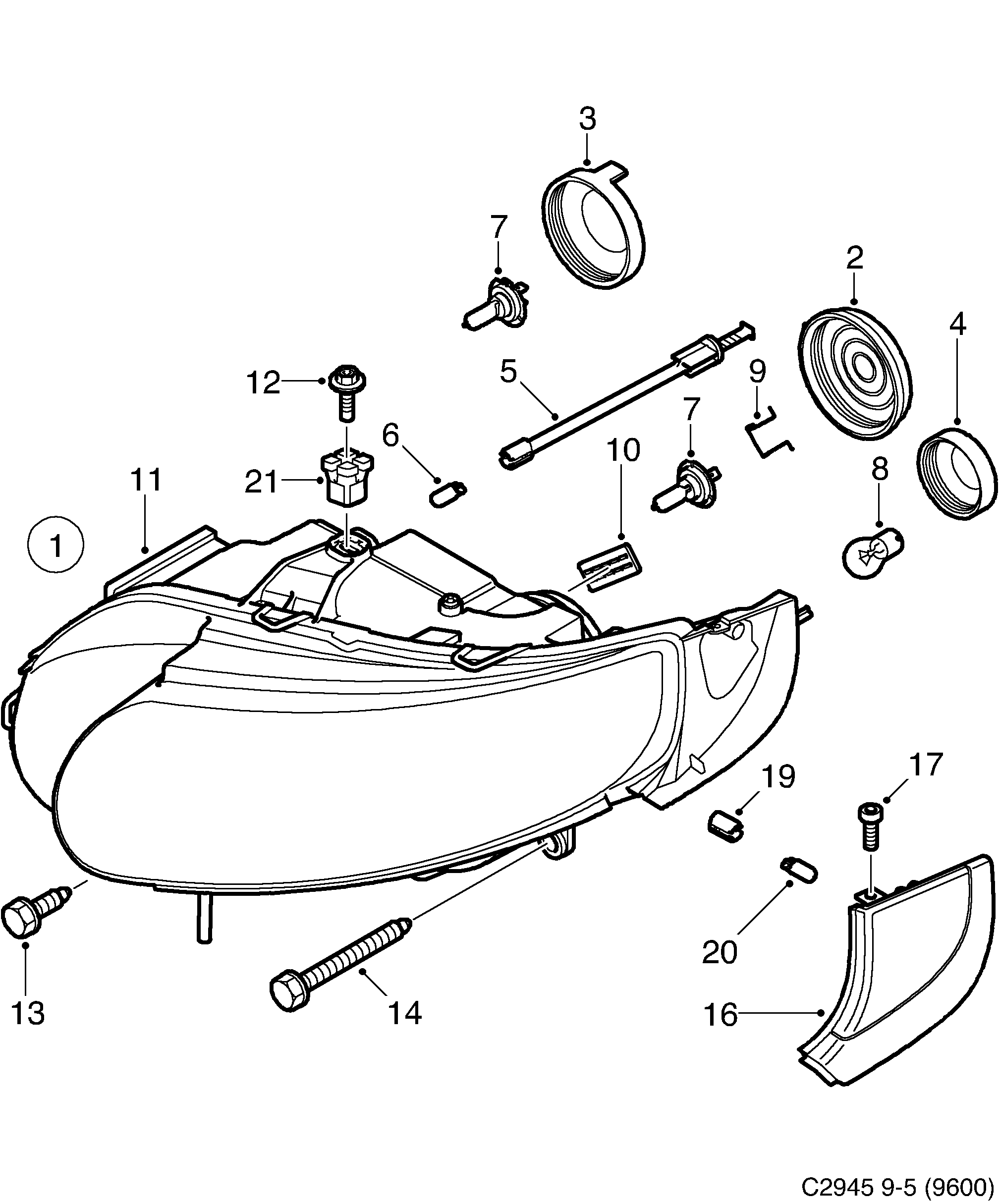

Saab 9-5 (9600) Headlamp diagram

Pos	Article	Part No.
1	Headlight, left	12767098
1	Headlight, right	12767099
2	Cover	12762482
3	Cover	12762483
4	Cover	12762484
5	Bulb socket	12762496
6	Bulb	93190471 (replaces 12795070)
6	Bulb	93190471
7	Bulb	93169007 (replaces 12795068)
8	Bulb	12762506
9	Spring	12762507
10	Seal	12788965
11	Headlamp housing	12762508
11	Headlamp housing	12762509
12	Screw	24413560
13	Screw	11900324
14	Screw	11900327
16	Side marking lamp	12762590
16	Lamp	12843871
16	Side marking lamp	12762591
16	Lamp	12843872
17	Screw	12762595
19	Bulb socket	12762589
21	Nut	90506890
