Saab 9-5 (9600) 2006-2010 Headlamp Xenon

Group 3a Electrical, general, section 265

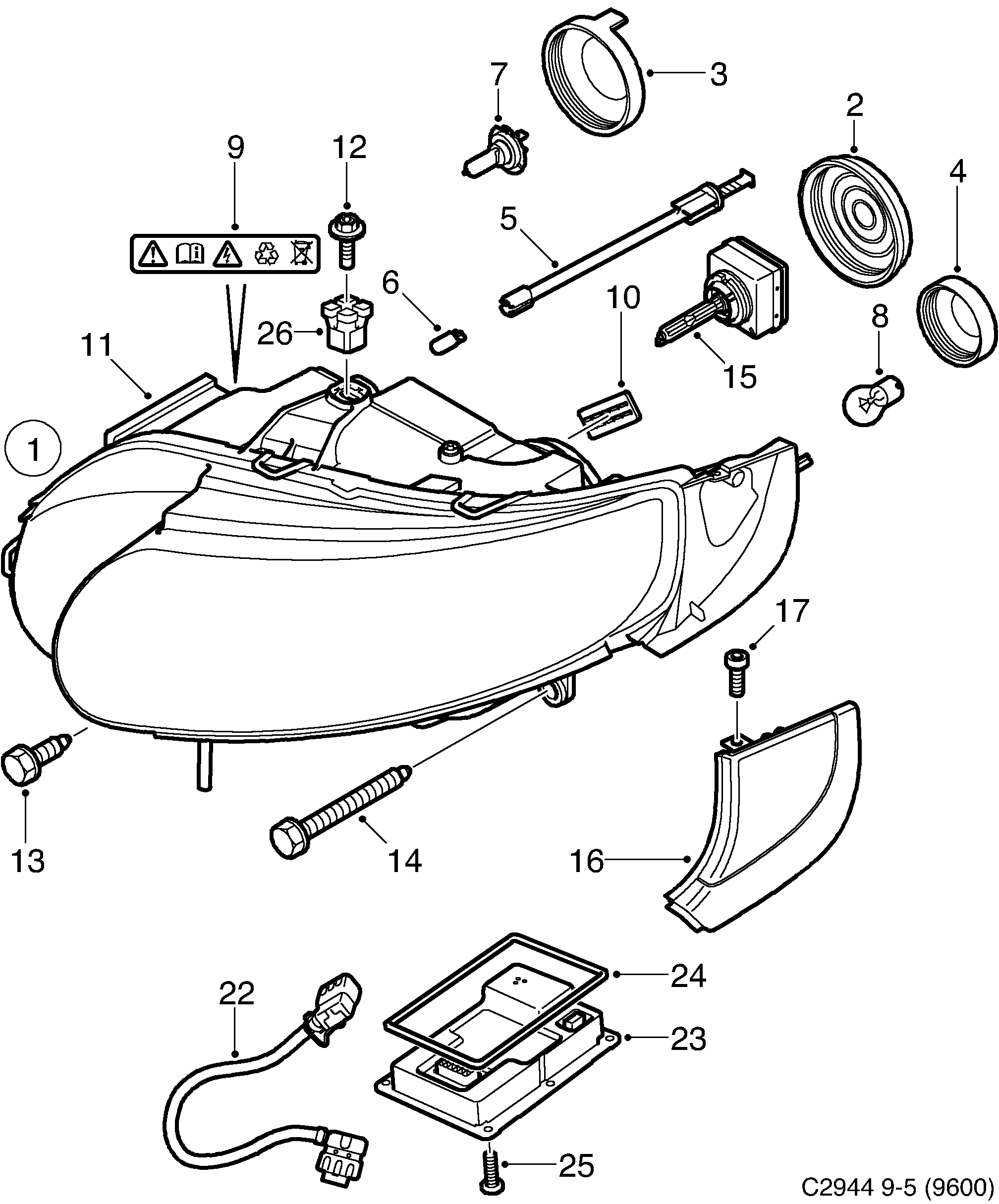

Saab 9-5 (9600) Headlamp Xenon diagram

Pos	Article	Part No.
1	Headlight, left	12762510
1	Headlight, right	12762511
1	Headlight, left	12762512
1	Headlight, right	12762513
2	Cover	12762482
3	Cover	12762483
4	Cover	12762484
5	Bulb socket	12762496
6	Bulb	93190471 (replaces 12795070)
6	Bulb	93190471
7	Bulb	93169007 (replaces 12795068)
8	Bulb	12762506
10	Seal	12788965
11	Headlamp housing	12762508
11	Headlamp housing	12762509
12	Screw	24413560
13	Screw	11900324
14	Screw	11900327
15	Bulb	5402433
16	Side marking lamp	12762592
16	Side marking lamp	12843867
16	Side marking lamp	12762593
16	Side marking lamp	12843868
17	Screw	12762595
22	Cable harness	12762501
23	Electronic unit	5408497
24	Seal	5402458
25	Screw	5408547
26	Nut	90506890
