Saab 9-5 (9600) 1999-2001 Headlamp

Group 3a Electrical, general, section 260

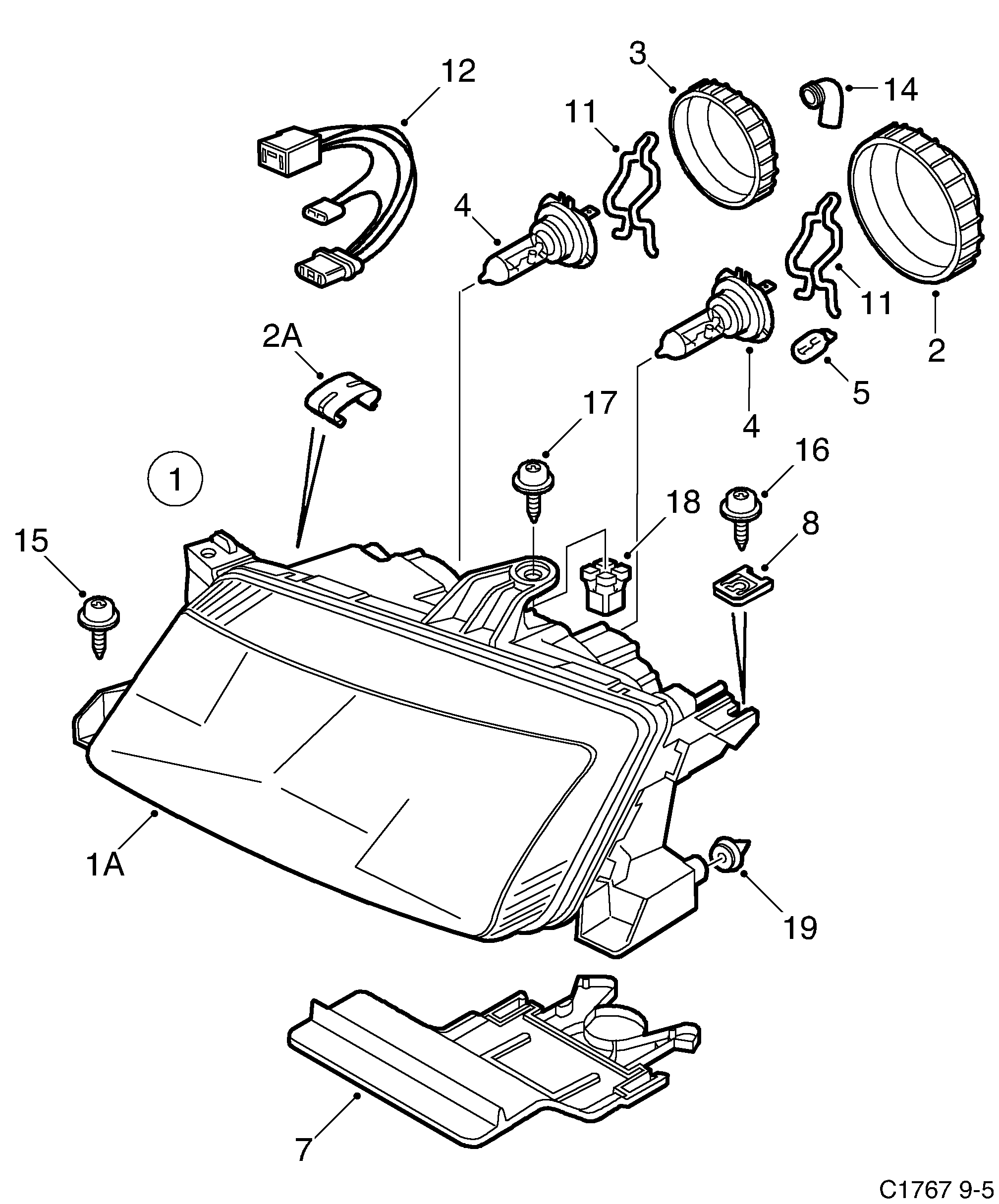

Saab 9-5 (9600) Headlamp diagram

Pos	Article	Part No.
1	Headlamp	5283528 (replaces 4560512)
1	Headlamp	5283528 (replaces 4957379)
1	Headlamp	5283528
1	Headlamp	5283536 (replaces 4560520)
1	Headlamp	5283536 (replaces 4957387)
1	Headlamp	5283536
1A	Headlamp lens	5288972
	Headlamp lens	4787651
	Assembly instruction	5288931
1A	Headlamp lens	5288980
	Headlamp lens	5288980 (replaces 4787669)
2	Cover	4468153
2A	Clip	4468179
3	Cover	4787602
4	Bulb	93169007 (replaces 4685202)
5	Bulb	93190471 (replaces 9512880)
7	Stop	4787776
7	Stop	4787784
8	Clip	4481230
11	Spring	5400007
12	Cable harness	5400015
14	Bleeder hose	5495742
15	Hexagon screw	92152130 (replaces 7984305)
16	Screw	7985690
18	Press nut	7982655
19	Clip	4787727
