Saab 9-5 (9600) 2002-2005 Headlamp Xenon

Group 3a Electrical, general, section 256

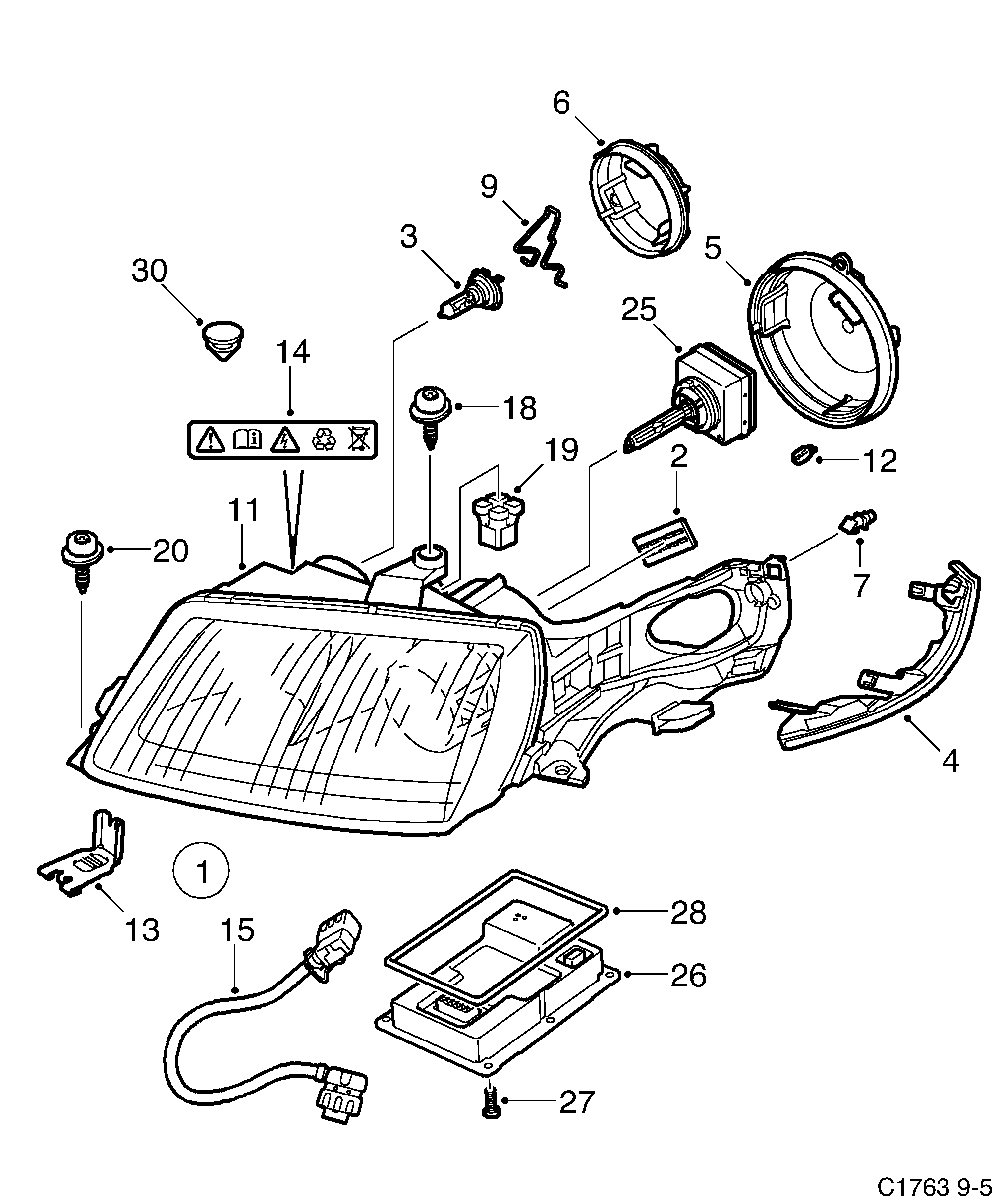

Saab 9-5 (9600) Headlamp Xenon diagram

Pos	Article	Part No.
1	Headlamp	5496344 (replaces 5408539)
1	Headlamp	5496351 (replaces 5405964)
1	Headlamp	5496344 (replaces 5495189)
1	Headlamp	5496351 (replaces 5495197)
1	Headlamp	5496344
1	Headlamp	5496351
1	Headlamp	5496369 (replaces 5405998)
1	Headlamp	5496377 (replaces 5406004)
1	Headlamp	5496369 (replaces 5495205)
1	Headlamp	5496377 (replaces 5495213)
1	Headlamp	5496369
1	Headlamp	5496377
2	Seal	12788965 (replaces 4114153)
3	Bulb	93169007 (replaces 4685202)
4	Seal	5402342
4	Seal	5403555
5	Cover	5402383
6	Cover	5402391
7	Clip	5403571
7	Clip	5402359
9	Spring	5400007
11	Headlamp housing	5408513
11	Headlamp housing	5408521
12	Bulb	93190471 (replaces 9512880)
13	Clip	5409537
15	Cable harness	5409719
18	Screw	7985690
18	Screw	24413560 (replaces 4348793)
19	Press nut	92150170 (replaces 7982929)
19	Clip	90506890 (replaces 4348785)
20	Screw	92153216 (replaces 7982325)
25	Bulb	5402433
26	Electronic unit	5408497
27	Screw	5408547
28	Seal	5402458
30	Plug	92150200 (replaces 7982762)
