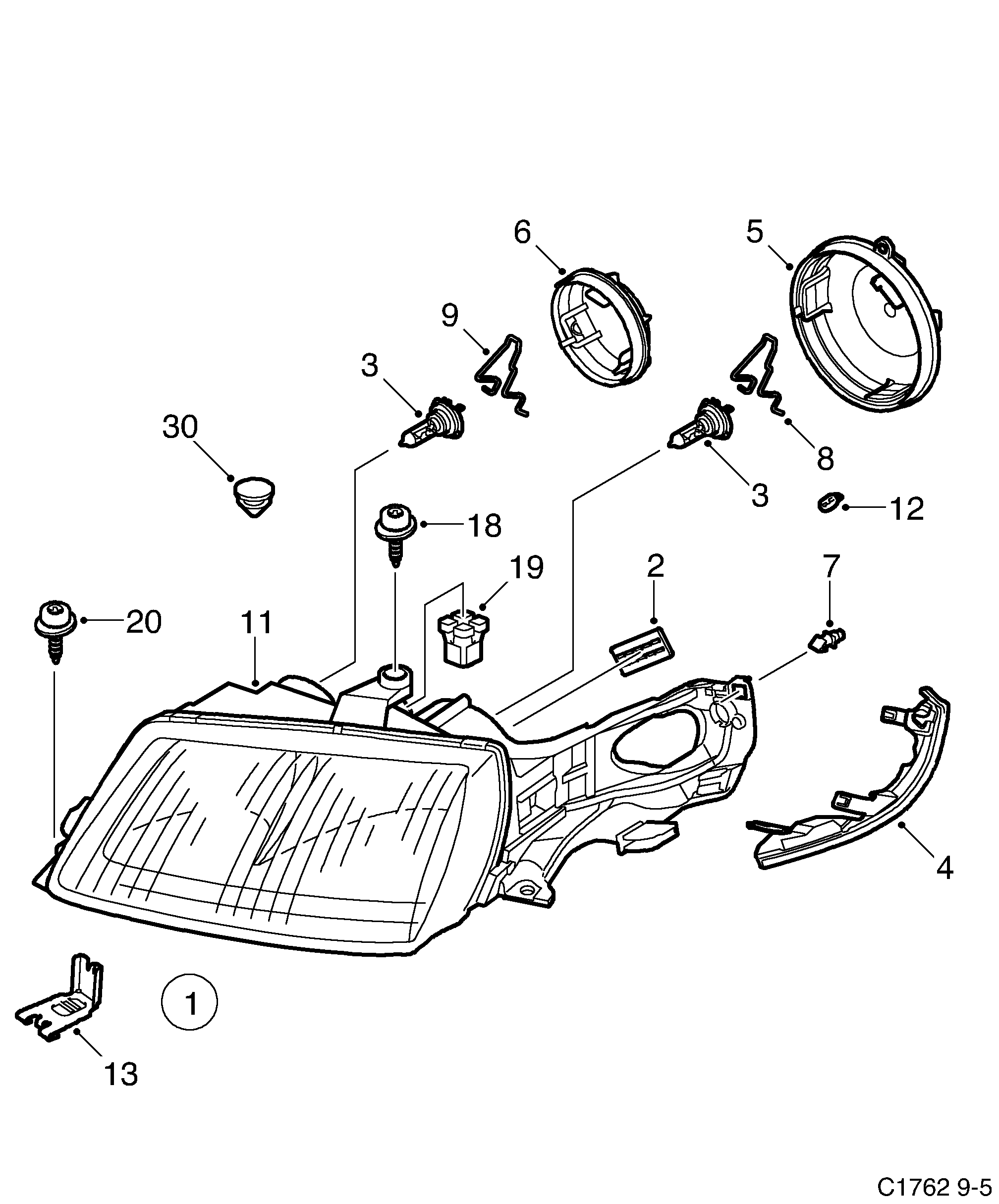

Group 3a Electrical, general, section 252
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 5142070 |
| 1 | Headlamp | 5142088 |
| 1 | Headlamp | 5142096 |
| 1 | Headlamp | 5142104 |
| 2 | Seal | 12788965 (replaces 4114153) |
| 3 | Bulb | 93169007 (replaces 4685202) |
| 4 | Seal | 5402342 |
| 4 | Seal | 5403555 |
| 5 | Cover | 5402383 |
| 6 | Cover | 5402391 |
| 7 | Clip | 5403571 |
| 7 | Clip | 5402359 |
| 8 | Spring | 5409610 |
| 9 | Spring | 5400007 |
| 11 | Headlamp housing | 5408513 |
| 11 | Headlamp housing | 5408521 |
| 12 | Bulb | 93190471 (replaces 9512880) |
| 13 | Clip | 5409537 |
| 18 | Screw | 7985690 |
| 18 | Screw | 24413560 (replaces 4348793) |
| 19 | Press nut | 92150170 (replaces 7982929) |
| 19 | Clip | 90506890 (replaces 4348785) |
| 20 | Screw | 92153216 (replaces 7982325) |
| 30 | Plug | 92150200 (replaces 7982762) |
