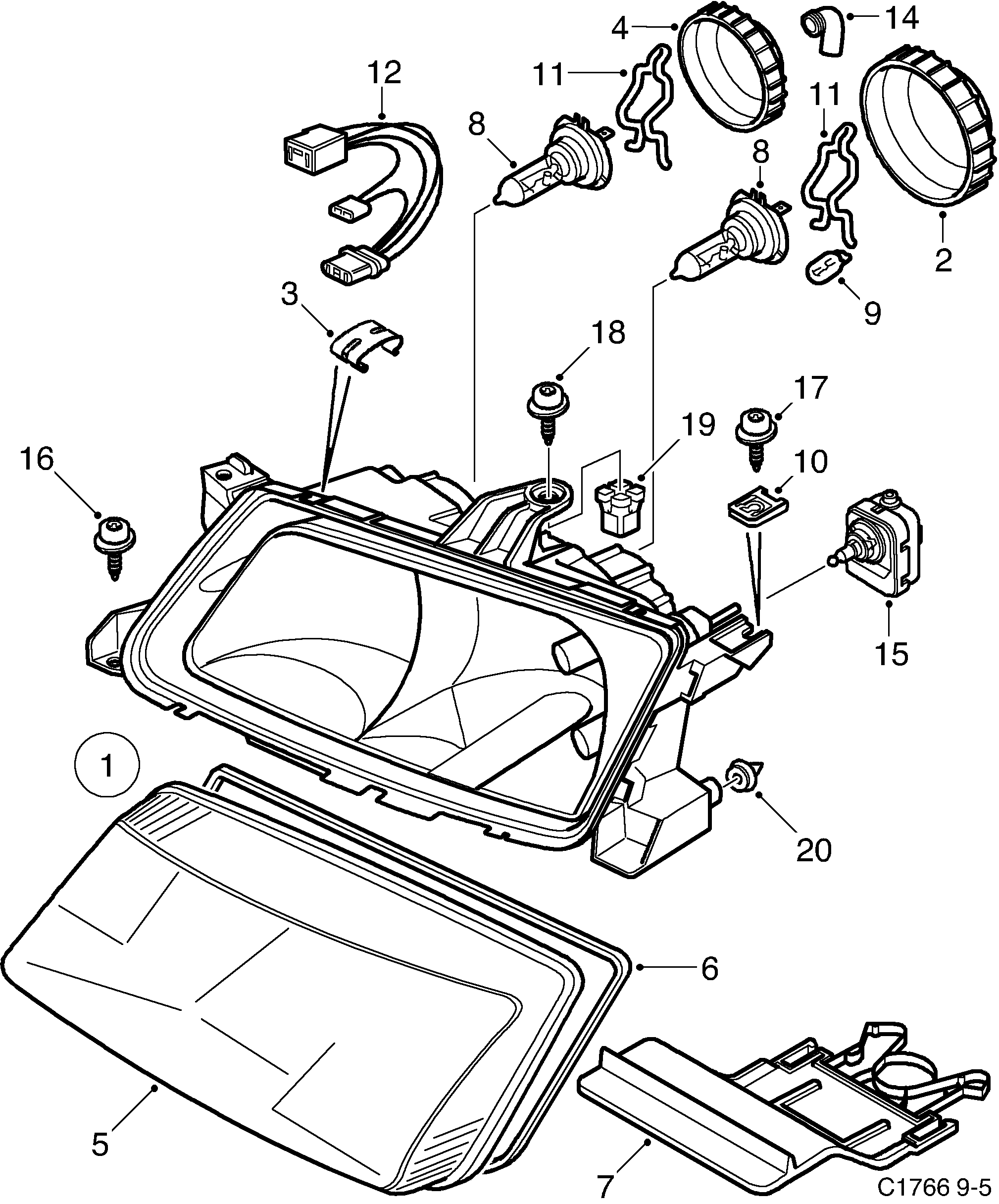

Group 3a Electrical, general, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Headlamp | 5284450 (replaces 4832457) |
| 1 | Headlamp | 5284450 |
| 1 | Headlamp | 5284468 (replaces 4832465) |
| 1 | Headlamp | 5284468 |
| 1 | Headlamp | 5284476 (replaces 4832432) |
| 1 | Headlamp | 5284476 |
| 1 | Headlamp | 5284484 (replaces 4832440) |
| 1 | Headlamp | 5284484 |
| 2 | Cover | 4468153 |
| 3 | Clip | 4468179 |
| 4 | Cover | 4787602 |
| 5 | Headlamp lens | 4787610 |
| 5 | Headlamp lens | 4787628 |
| 5 | Headlamp lens | 4787636 |
| 5 | Headlamp lens | 4787644 |
| 6 | Seal | 5289756 |
| 6 | Seal | 5289764 |
| 7 | Stop | 4787776 |
| 7 | Stop | 4787784 |
| 8 | Bulb | 93169007 (replaces 4685202) |
| 9 | Bulb | 93190471 (replaces 9512880) |
| 10 | Clip | 4481230 |
| 11 | Spring | 5400007 |
| 12 | Cable harness | 5400015 |
| 14 | Bleeder hose | 5495742 |
| 15 | Electrical motor | 4787792 |
| 16 | Hexagon screw | 92152130 (replaces 7984305) |
| 17 | Screw | 7985690 |
| 19 | Press nut | 7982655 |
| 20 | Clip | 4787727 |
