Saab 9-5 (9600) 2002-2005 Starter motor

Group 3a Electrical, general, section 210

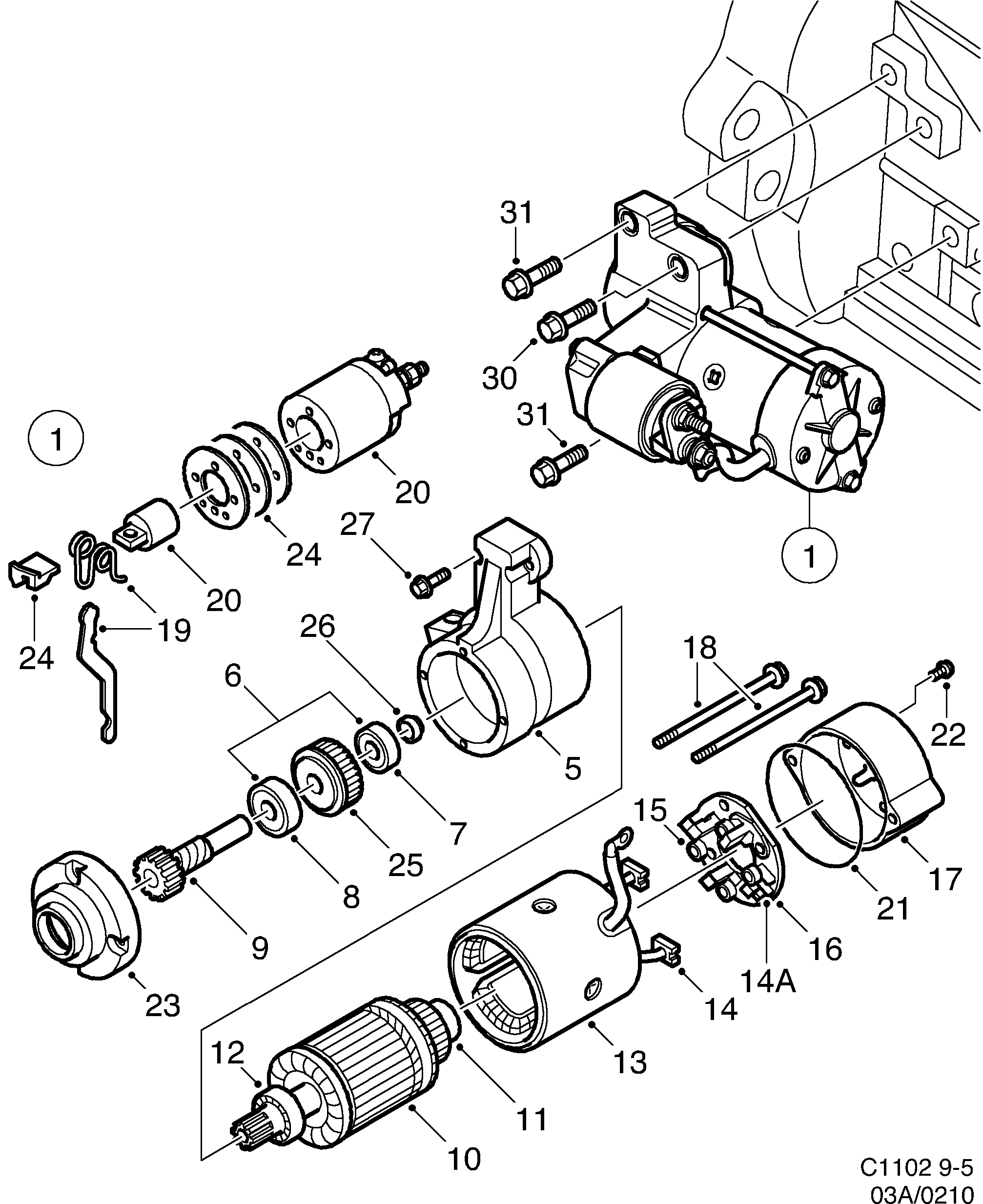

Saab 9-5 (9600) Starter motor diagram

Pos	Article	Part No.
1	Starter motor	5343850
5	Gear house	5956818
6	Drive gear	5956669
7	Ball bearing	5956347
8	Ball bearing	5956339
9	Drive gear	5956271
10	Rotor	5956651
11	Ball bearing	5956248
12	Ball bearing	5956255
13	Gauges	5956784
14	Brush set	5956370
15	Spring	5956289
16	Plate	5956388
17	Cap	5956792
18	Screw	5956099
19	Engagement lever	5956693
20	Actuator solenoid	5956800
21	O-ring	5956396
22	Screw	5956404
23	Drive gear	5956685
24	Cap	5956826
25	Drive gear	5956677
26	Cap	5956263
27	Screw	5956313
30	Screw	7969298
31	Screw	5125562
