Saab 9-5 (9600) 1998-2003 Generator

Group 3a Electrical, general, section 160

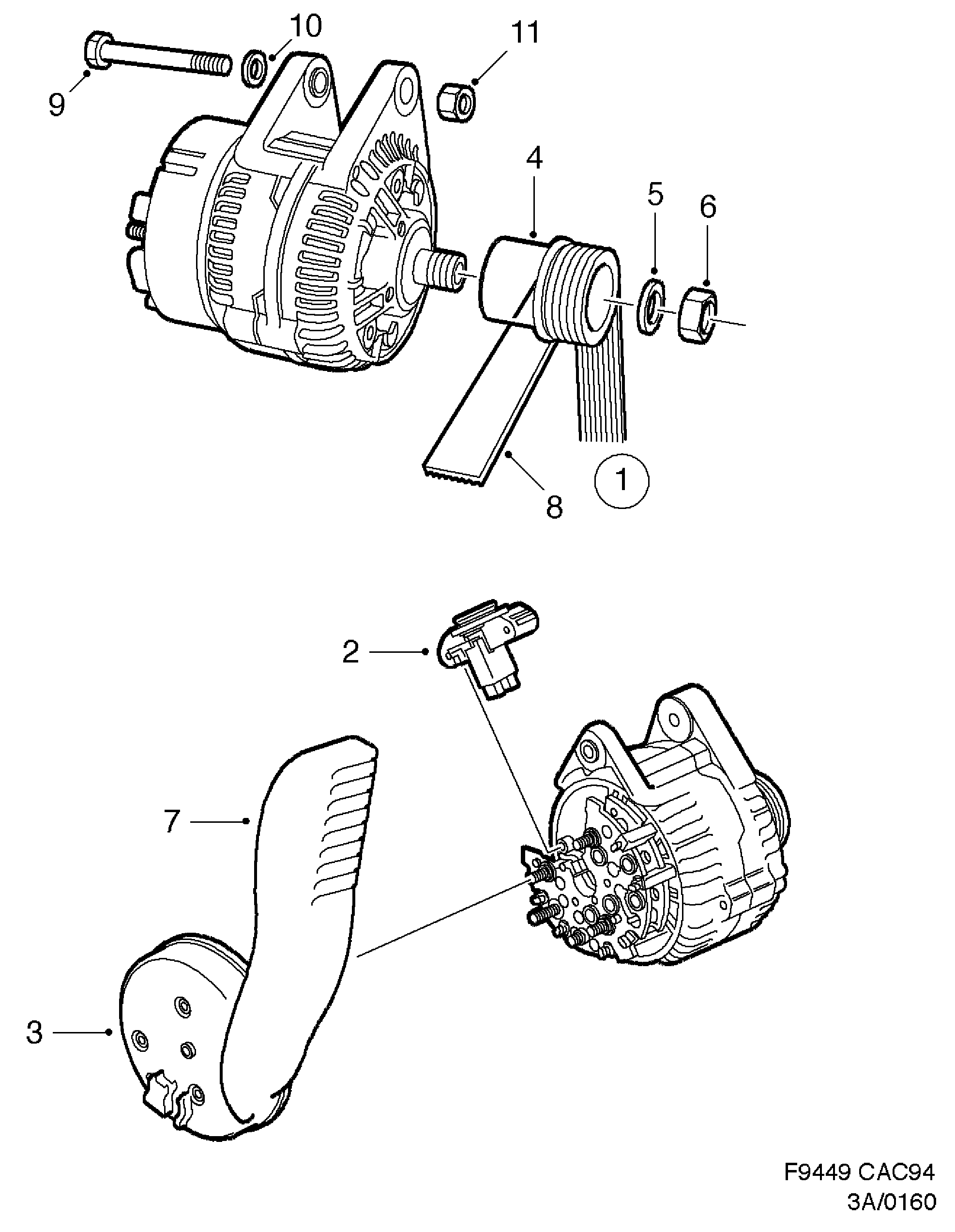

Saab 9-5 (9600) Generator diagram

Pos	Article	Part No.
1	Generator	5248794 (replaces 4929451)
1	Generator	5248794 (replaces 5246905)
1	Generator	5248794
2	Voltage regulator	5246863 (replaces 4737151)
2	Voltage regulator	5246863
2	Voltage regulator	5543806
3	Protection	4949061 (replaces 4941753)
3	Protection	4949061
3	Protection	5353560
4	Pulley	5477807 (replaces 4466900)
4	Pulley	5477807 (replaces 5100813)
4	Pulley	5477807
5	Washer	4489316
6	Nut	4489308
7	Cover	4927513
9	Screw	7979263
10	Washer	8073108
11	Lock nut	92153199 (replaces 8151474)
