Saab 9-5 (9600) 2002-2005 Generator

Group 3a Electrical, general, section 140

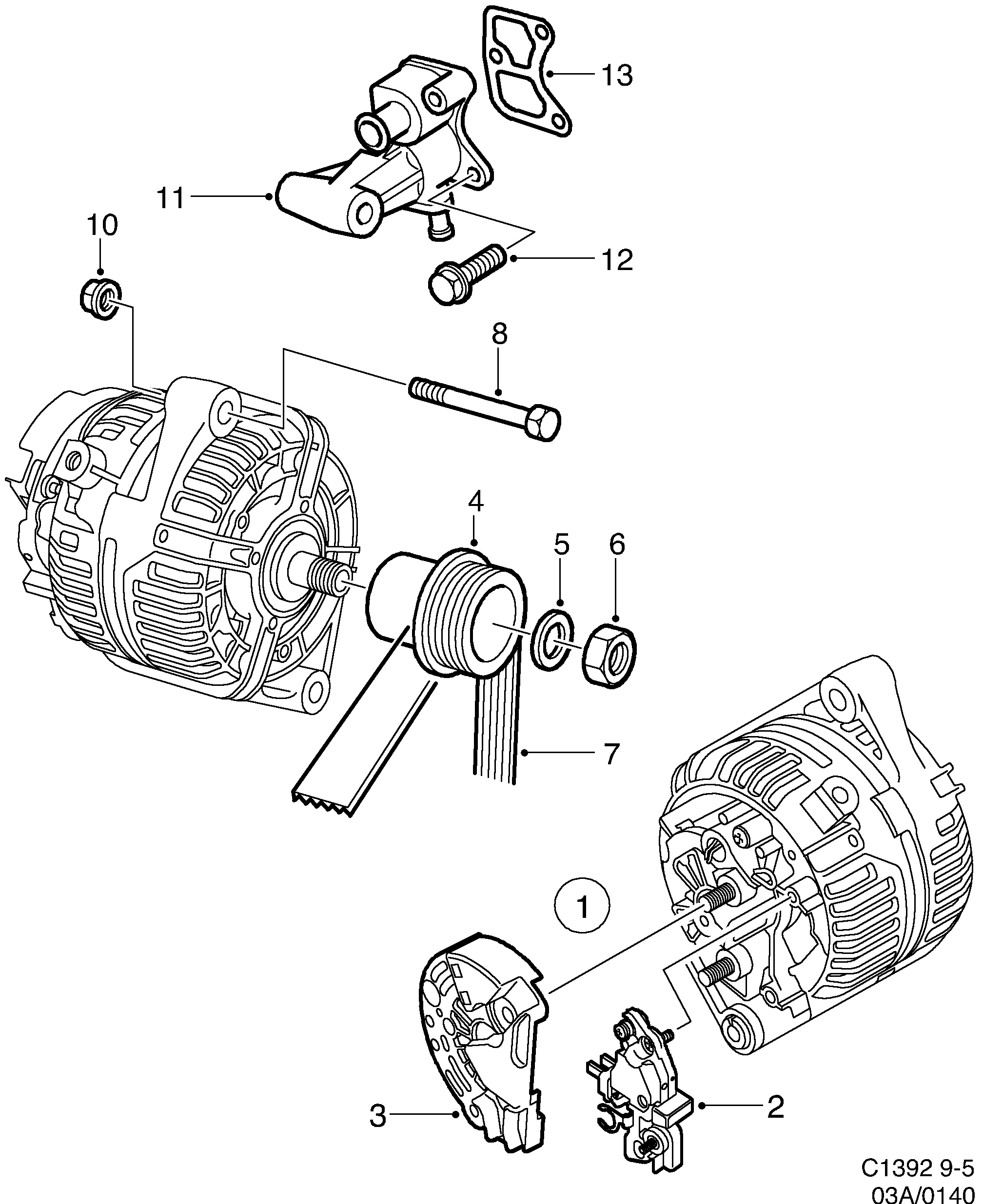

Saab 9-5 (9600) Generator diagram

Pos	Article	Part No.
1	Generator	93174497 (replaces 5470513)
1	Generator	93174497 (replaces 5549555)
2	Voltage regulator	5353552
3	Protection	5353560
4	Pulley	5543194 (replaces 4928115)
4	Pulley	5543194
5	Washer	4489316
6	Nut	4489308
8	Screw	11094061 (replaces 7987209)
8	Screw	11094061 (replaces 5344866)
10	Flange nut	92150135 (replaces 7984776)
10	Flange lock nut	11900441 (replaces 4347993)
11	Bracket	90573653
12	Screw	11094951
13	Gasket	90502133
