Saab 9-5 (9600) 1998-2010 Generator

Group 3a Electrical, general, section 130

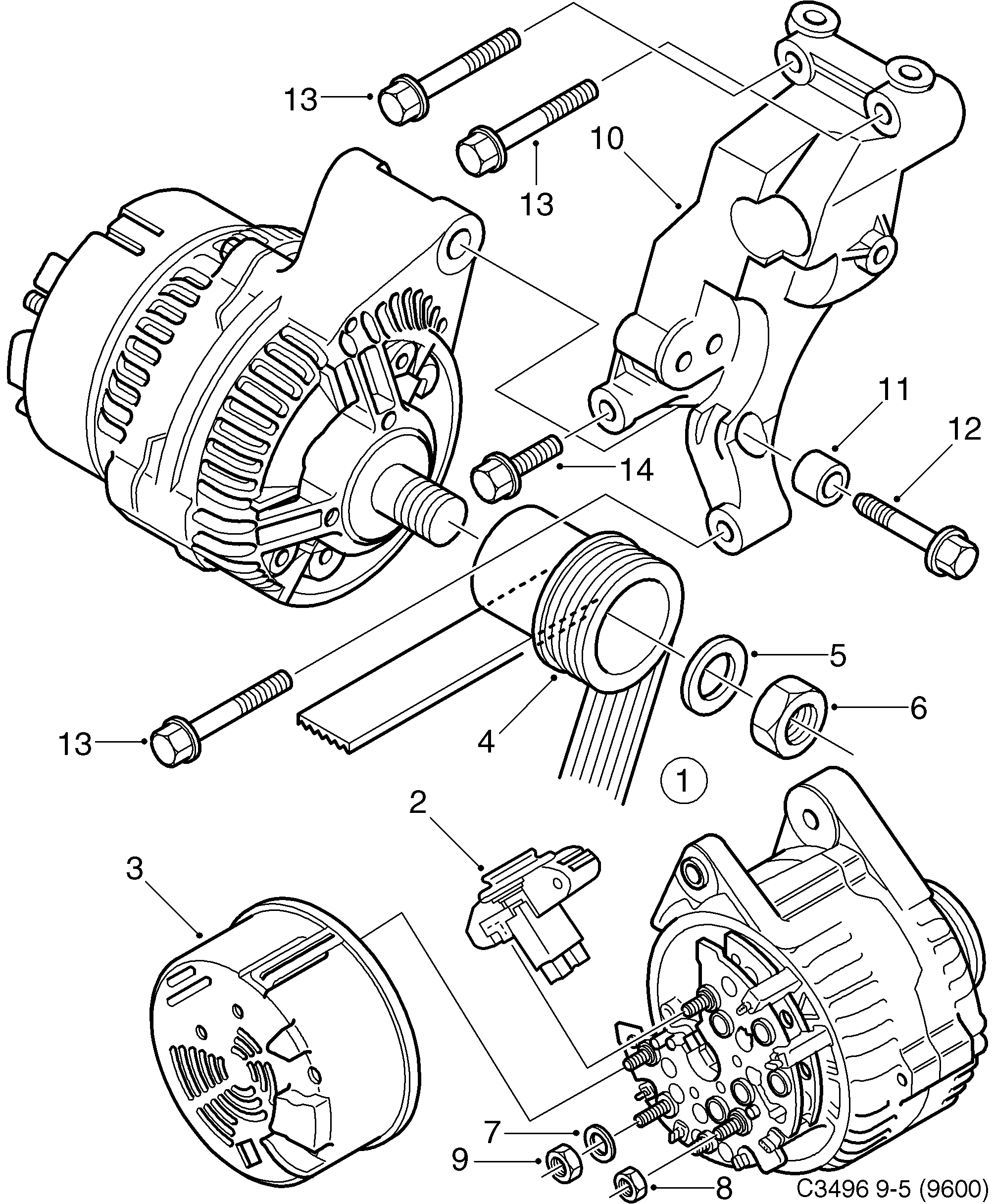

Saab 9-5 (9600) Generator diagram

Pos	Article	Part No.
1	Generator	5601307 (replaces 4941761)
1	Generator	5601307 (replaces 5246897)
1	Generator	12770124 (replaces 5248372)
1	Generator	12770124
2	Voltage regulator	5246863 (replaces 4737151)
2	Voltage regulator	5246863
2	Voltage regulator	5470612
3	Protection	5603980
3	Protection	5353560
4	Pulley	12770125 (replaces 30550932)
4	Pulley	12770125
5	Washer	4489316
6	Nut	4489308
7	Washer	7311764
8	Nut	32026207 (replaces 11900450)
9	Hexagon nut	11900452 (replaces 7977952)
9	Hexagon nut	5125984
9	Hexagon nut	32026207
10	Bracket	4670493
10	Bracket	55564667 (replaces 4967865)
10	Bracket	55564667
11	Bushing	7593080
12	Screw	55562633
13	Screw	11900373 (replaces 7982119)
13	Hexagon screw	11900373
14	Screw	11900367 (replaces 92150015)
14	Screw	11900367
14	Hexagon screw	55566033
