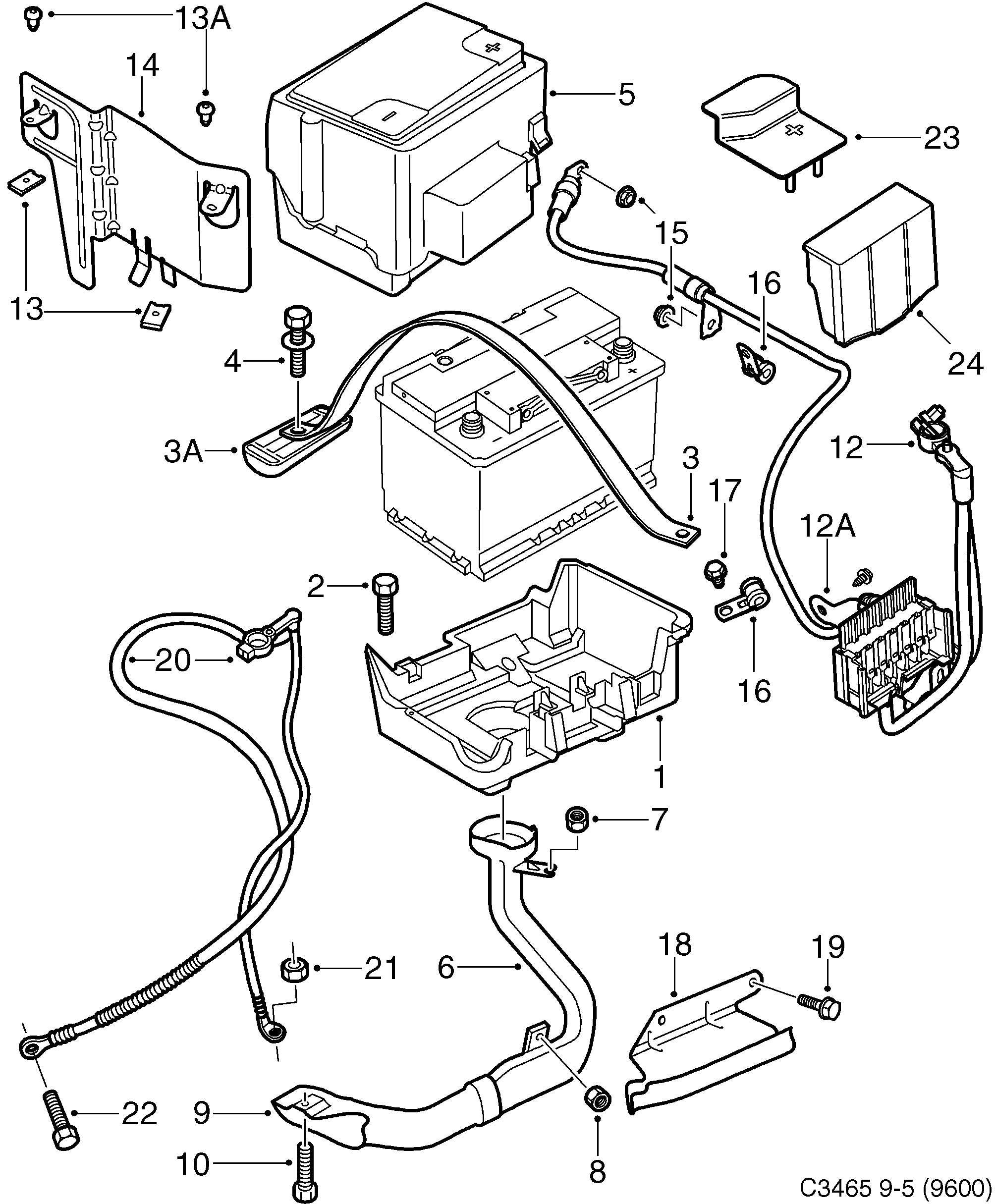

Group 3a Electrical, general, section 103
| Pos | Article | Part No. |
|---|---|---|
| 1 | Battery cover | 5248059 |
| 1 | Battery tray | 12768935 |
| 2 | Hexagon screw | 5125497 |
| 2 | Screw | 7978133 |
| 2 | Screw | 11900357 |
| 3 | Brace | 5352323 (replaces 5353099) |
| 3A | Clamp | 5352323 |
| 3A | Clamp | 12760512 |
| 4 | Hexagon screw | 5125489 |
| Nut | 92153045 | |
| 5 | Battery cover | 12779249 (replaces 5242052) |
| 5 | Cover | 12779249 |
| 5 | Insulation | 12782451 |
| 6 | Air duct | 5353131 |
| 7 | Plastic nut | 92152035 (replaces 4087128) |
| 7 | Nut | 92152035 |
| 7 | Plastic nut | 90482479 |
| 8 | Nut | 12778389 (replaces 5071022) |
| 8 | Nut | 12778389 |
| 9 | Air duct | 5242078 |
| 10 | Screw | 92153149 |
| 12 | Battery cable | 12755255 (replaces 5477856) |
| 12 | Battery cable | 12755255 |
| 12A | Bracket | 5350376 |
| 12 | Battery cable | 12755254 (replaces 5477849) |
| 12 | Battery cable | 12755254 |
| 12 | Battery cable | 5477815 (replaces 5354899) |
| 12 | Battery cable | 5477815 |
| 12 | Plus wire | 12759906 |
| 12 | Plus wire | 12761491 |
| 12 | Battery cable | 5542295 (replaces 5354881) |
| 12 | Battery cable | 5542295 |
| 12 | Plus wire | 12758276 |
| 12 | Plus wire | 12761493 |
| 12 | Battery cable | 5477831 (replaces 5246236) |
| 12 | Cable harness | 5477831 |
| 12 | Battery cable | 5477864 (replaces 5248745) |
| 12 | Battery cable | 5477864 |
| 12 | Battery cable | 12778266 |
| 13 | Nut | 92151847 |
| 13A | Screw | 92153219 (replaces 92153004) |
| 14 | Protective cover | 12779057 |
| 15 | Hexagon nut | 11900452 (replaces 7977952) |
| 15 | Nut | 11900452 |
| 15 | Nut | 11900451 |
| 15 | Hexagon nut | 5125984 |
| 16 | Clamp | 7969405 |
| 16 | Clamp | 92150772 (replaces 7969355) |
| 16 | Clamp | 92150772 |
| 17 | Screw | 92153146 |
| 18 | Clamp | 4739108 |
| 19 | Screw | 11900353 (replaces 7978091) |
| 20 | Battery cable | 5477872 (replaces 5246210) |
| 20 | Battery cable | 5477872 |
| 20 | Minus wire | 12761495 |
| 21 | Nut | 11900451 (replaces 92150133) |
| 22 | Screw | 92152121 (replaces 8130064) |
| 22 | Hexagon screw | 92152121 |
| 22 | Hexagon screw | 92153213 |
| 23 | Cover | 90053991 |
| 24 | Cover | 90587327 |
