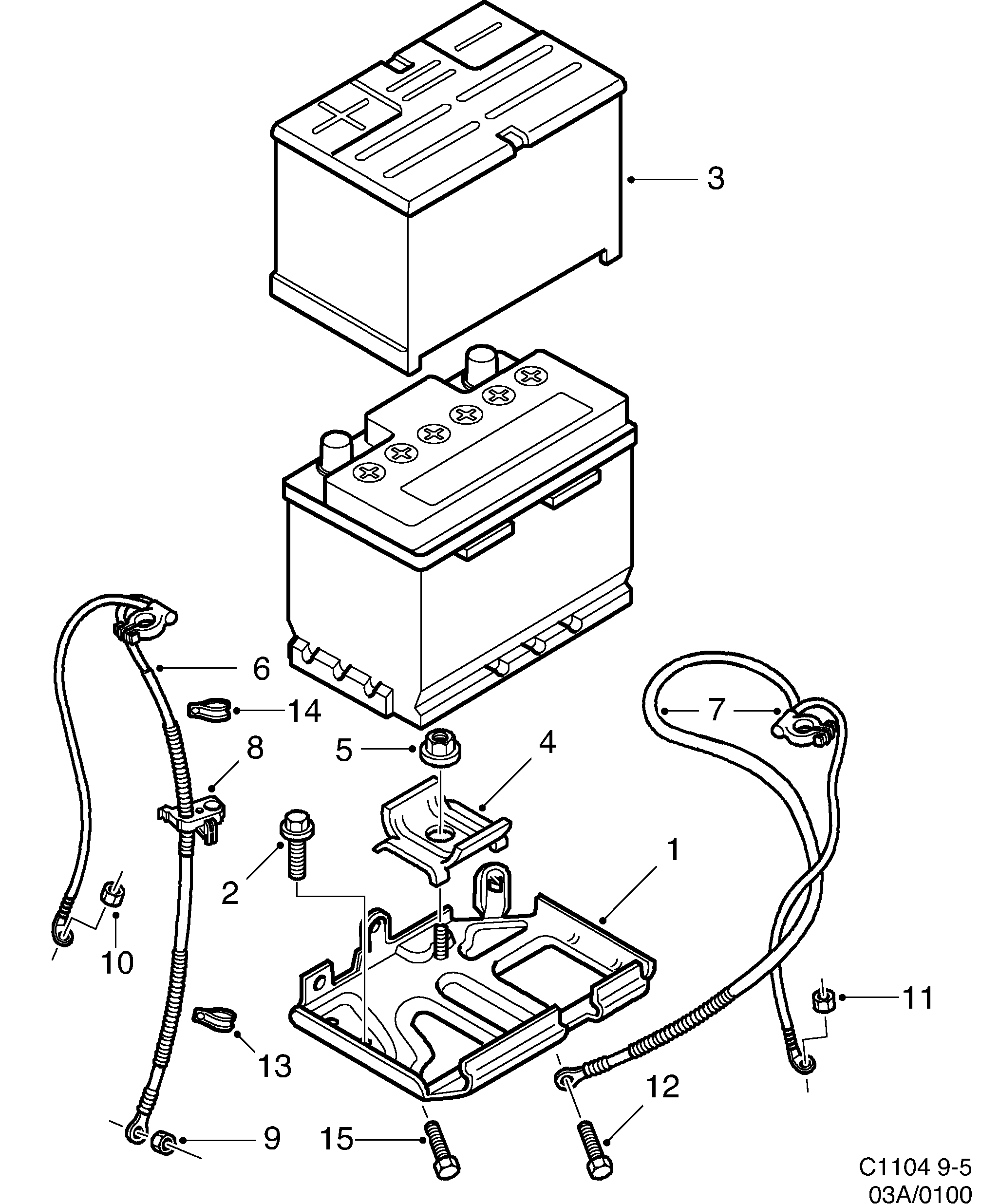

Group 3a Electrical, general, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Battery tray | 4923108 (replaces 4599916) |
| 1 | Battery tray | 4923108 (replaces 5070925) |
| 1 | Battery tray | 4923108 |
| 2 | Hexagon screw | 92152130 (replaces 7984305) |
| 3 | Heat shield | 32000228 (replaces 4946844) |
| 3 | Heat shield | 32000228 (replaces 5104187) |
| 4 | Brace | 12760512 (replaces 4927893) |
| 5 | Nut | 92150143 (replaces 7971922) |
| 6 | Battery cable | 4945788 |
| 6 | Cable harness | 5106687 (replaces 4943817) |
| 6 | Cable harness | 5106687 (replaces 4946414) |
| 6 | Cable harness | 5106687 |
| 7 | Battery cable | 5106232 (replaces 4943809) |
| 7 | Battery cable | 5106232 |
| 7 | Battery cable | 5247036 |
| 7 | Battery cable | 5248349 |
| 8 | Clip | 4411369 |
| 9 | Nut | 32026207 (replaces 7977911) |
| 10 | Hexagon nut | 11900452 (replaces 7977952) |
| 11 | Nut | 11900451 (replaces 7977929) |
| 12 | Screw | 92152121 (replaces 8130064) |
| 13 | Clamp | 7969405 |
| 14 | Clamp | 4940771 |
| 15 | Screw | 11900353 (replaces 7978091) |
